Extron FOXBOX Rx HDMI SM 60-1174-22

Extron FOXBOX Rx HDMI SM Fiber Optic Receiver 60-1174-22

Extron FOXBOX Rx HDMI SM Fiber Optic Receiver 60-1174-22

Manufacturer: Extron

Type: Fiber Optics

Extron FOXBOX Rx HDMI SM 60-1174-22 Singlemode Fiber Receiver

  • • HDMI output up to 1920x1200 at 60 Hz from singlemode fiber
  • • Singlemode reach up to 30 km (18.75 miles)
  • • Balanced/unbalanced audio output with adjustable gain
  • • Dual RS-232 ports for front-panel control and rear pass-through
  • • EDID emulation and HDCP-compliant switching
  • • Compact enclosure with external 12 VDC supply and 7-year Everlast warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOXBOXRXHDMISM-60117422

Details

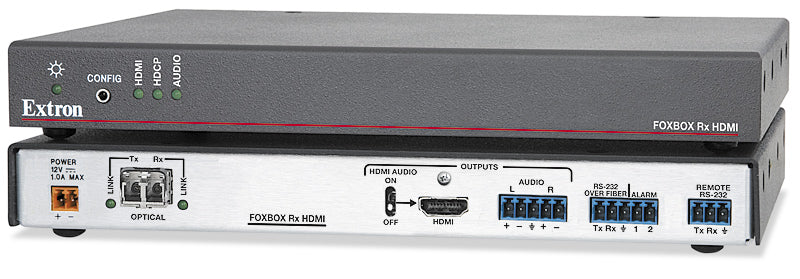

Extron FOXBOX Rx HDMI SM (part number 60-1174-22) — a compact singlemode fiber receiver that pairs with a FOXBOX Tx HDMI transmitter to deliver HDMI video, embedded or discrete stereo audio, and RS-232 control at the display end.

This half-rack receiver decodes the incoming singlemode fiber signal back to a single HDMI output, balanced/unbalanced audio, and dual RS-232 ports (front-panel control plus rear pass-through), supporting resolutions up to 1920x1200 at 60 Hz over runs as long as 30 km.

Key Capabilities

  • HDMI output up to 1920x1200 at 60 Hz, pixel-for-pixel, from singlemode fiber
  • Singlemode reach up to 30 km (18.75 miles), matching the paired transmitter
  • Balanced/unbalanced audio output with adjustable gain
  • Dual RS-232 ports — front-panel control and rear pass-through
  • EDID emulation and HDCP-compliant switching for reliable display handshaking
  • Compact half-rack metal enclosure, external 12 VDC supply, 7-year Everlast warranty

Where It Is Used

Pairs with a FOXBOX Tx HDMI SM transmitter for long-haul point-to-point HDMI extension across campus or building-to-building links.

Specifications at a Glance

  • Video: HDMI, HDCP 1.1, up to 1920x1200 at 60 Hz, 4.25 Gbps
  • Fiber: singlemode, up to 30 km, 2 LC connectors, 1310 nm
  • Power: external 12 VDC/18 W supply, 6.9 W device draw
  • Enclosure: half-rack metal, 1.0"H x 8.75"W x 6.0"D, 1.1 lbs

Also referenced as Extron FOXBOXRXHDMISM, FOXBOX-Rx-HDMI-SM, part number 60117422.
