Details

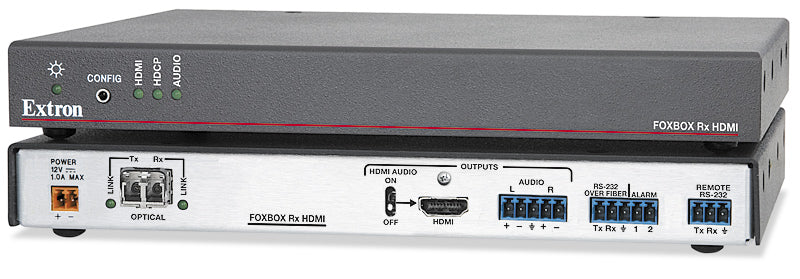

Extron FOXBOX Rx HDMI MM (part number 60-1174-21) — a compact multimode fiber receiver that pairs with a FOXBOX Tx HDMI transmitter to deliver HDMI video, embedded or discrete stereo audio, and RS-232 control at the display end.

This half-rack receiver decodes the incoming multimode fiber signal back to a single HDMI output, balanced/unbalanced audio, and dual RS-232 ports (front-panel control plus rear pass-through), supporting resolutions up to 1920x1200 at 60 Hz.

Key Capabilities

HDMI output up to 1920x1200 at 60 Hz, pixel-for-pixel, from multimode fiber
Multimode reach up to 2 km on OM3/OM4 fiber, matching the paired transmitter
Balanced/unbalanced audio output with adjustable gain
Dual RS-232 ports — front-panel control and rear pass-through
EDID emulation and HDCP-compliant switching for reliable display handshaking
Compact half-rack metal enclosure, external 12 VDC supply, 7-year Everlast warranty

Where It Is Used

Pairs with a FOXBOX Tx HDMI MM transmitter for point-to-point HDMI extension in classrooms, boardrooms, and control rooms.

Specifications at a Glance

Video: HDMI, HDCP 1.1, up to 1920x1200 at 60 Hz, 4.25 Gbps
Fiber: multimode, up to 2 km (OM3/OM4), 2 LC connectors, 850 nm
Power: external 12 VDC/18 W supply, 6.9 W device draw
Enclosure: half-rack metal, 1.0"H x 8.75"W x 6.0"D, 1.1 lbs

Also referenced as Extron FOXBOXRXHDMIMM, FOXBOX-Rx-HDMI-MM, part number 60117421.

Specifications

Part Number: 60-1174-21

Manufacturer: Extron

Model: FOXBOX Rx HDMI MM

Condition: New

Video Output: 1 single link HDMI, 1 female HDMI type A connector

Video Nominal Level: 0.8 Vp-p

Video Delay: 1-2 frames

Resolution Range: 640x480 up to 1920x1200 at 60 Hz pixel-for-pixel (480p, 576p, 720p, 1080i, 1080p at 60 Hz); 2K (2048x1080) at 60 Hz undersampled

Formats: RGB and YCbCr digital video

EDID: Supports emulation of custom or factory preset EDID tables

HDCP: Compliant with HDCP using DVI and HDMI standards

Standards: DVI 1.0, HDMI, HDCP 1.1, CEA-861E

Data Rate: 4.25 Gbps

Audio Output: 1 stereo/mono, balanced/unbalanced, 3.5 mm captive screw 5-pole, or 1 female HDMI type A (shared with video)

Audio Impedance: 50 ohms unbalanced

Audio Nominal Level: -10 dBV (316 mVrms)

Audio Maximum Level (Hi-Z): >+11.0 dBu, balanced at 1% THD+N

Audio Maximum Level (600 ohm): >10.0 dBu, balanced at 1% THD+N

Audio Delay: 1.5 frames

Audio Gain Range: Adjustable, -18 dB to +10 dB

Audio Gain Default: Unbalanced output -6 dB, balanced output 0 dB

Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

THD+N: 0.10% at 1 kHz, nominal level

S/N Ratio: >80 dB at maximum output, unweighted

CMRR: 65 dB at 20 Hz to 20 kHz

Audio Bit Depth: 18 bits per channel, 2 channels (L, R)

Sampling Rate: 48 kHz

Fiber Connectors: 2 LC connectors

Operating Distance (Multimode): 300 m (985 ft) on OM1; 1 km (3280 ft) on OM2; 2 km (6561 ft) on OM3/OM4

Nominal Peak Wavelength: 850 nm

Transmission Power (Multimode): -5 dBm, typical

Maximum Receiver Sensitivity (Multimode): -12 dBm, typical

Optical Loss Budget (Multimode): 7 dB, maximum

Serial Control Ports: 1 RS-232, 2.5 mm mini stereo jack, front panel; 1 RS-232, 3.5 mm captive screw 3-pole, rear panel, 9600 baud

Serial Pass-Through Port: 1 RS-232, 3.5 mm captive screw, 5-pole (3 pins used), rear panel, 9600-115200 baud

Program Control: Extron control/configuration program, SIS commands

Power Supply: External, input 100-240 VAC 50-60 Hz, output 12 VDC 1.5 A 18 W

Power Consumption: 6.9 W device only, 8.7 W device and power supply, 12 VDC

Thermal Dissipation: 22.1 BTU/hr device only, 28.3 BTU/hr device and power supply

Ambient Temperature/Humidity: Storage -40 to 158 F, Operating 32 to 122 F, 10% to 90% noncondensing

Cooling: Convection, vents on top and side panels

Enclosure: Metal, 1.0" H x 8.75" W x 6.0" D, half-rack width

Mounting: Optional rack shelf or under-desk mounting kit

Weight: 1.1 lbs (0.5 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX HDMI (foxboxhdmi_bro_revB5.pdf)

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Everlast Power Supplies

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Extron Government Solutions

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Alimentatori Everlast

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Everlast 电源

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Everlast-Netzteile

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Extron-Lösungen für Behörden

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX HDMI (FOXBOX-HDMI_BR_A4_SP_RevA1.pdf)

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX HDMI (foxbox_hdmi_REV_B6_jp_ONLINE.pdf)

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX HDMI (foxbox_hdmi_bro_cn_revA1.pdf)

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX Rx HDMI MM - Specs Sheet

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX Rx HDMI SM - Specs Sheet

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Fuentes de alimentación Everlast

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Solutions Extron pour structures gouvernementales

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Soluzioni Extron per ambienti governativi

Brochure | FOXBOX Rx HDMI MM 60-1174-21 | Sources d'alimentation Everlast

Manual | FOXBOX Rx HDMI MM 60-1174-21 | Cleaning Instruction Card

Manual | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX Tx/Rx HDMI Setup Guide

Manual | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX Tx/Rx HDMI User Guide

Specifications | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX Rx HDMI Series

Panel Drawing | FOXBOX Rx HDMI MM 60-1174-21 | FOXBOX Rx HDMI
