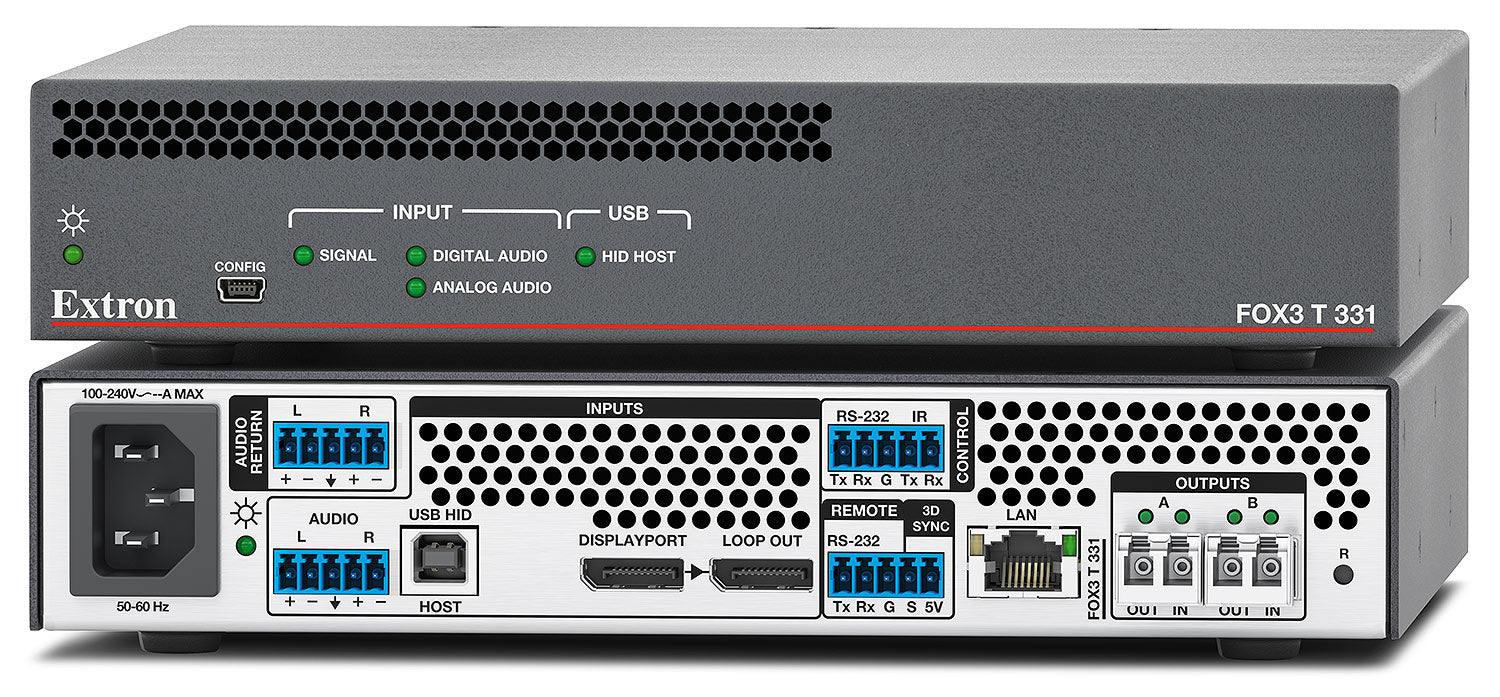

Extron FOX3 T 331 SM (part number 60-1778-12) — a singlemode fiber transmitter for DisplayPort video, USB HID, stereo audio, and RS-232/IR control, factory-configured for uncompressed transmission over two fibers.

This half-rack transmitter accepts a DisplayPort source, a discrete analog or embedded stereo audio input, and a single USB HID connection, then sends the combined signal out over two singlemode fibers at up to 4096x2160 at 60 Hz, 4:4:4, bit-for-bit uncompressed, with reach to 20 km at 1310 nm.

Key Capabilities

Uncompressed 4096x2160 at 60 Hz, 4:4:4 DisplayPort 1.2a transmission over two fibers
Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
Dedicated USB HID port for keyboard, mouse, and touch-panel extension
Discrete or DisplayPort-embedded stereo audio input with adjustable gain and audio return
RS-232 and IR insertion plus DisplayPort loop-out for local monitoring
Half-rack metal enclosure backed by a 3-year Extron warranty and 7-year Everlast PSU coverage

Where It Is Used

Fits secure operations centers, command rooms, and broadcast facilities needing an uncompressed DisplayPort link over long singlemode runs with locked-down USB peripheral support.

Specifications at a Glance

Video: DisplayPort 1.2a, up to 4096x2160 at 60 Hz, 4:4:4, 21.6 Gbps
Fiber: singlemode, 20 km max reach, 1-3 LC connectors, 1310 nm
USB: 1-port USB HID
Enclosure: half-rack metal, 1.7"H x 8.75"W x 8.5"D, 2.4 lbs

Also referenced as Extron FOX3T331SM, FOX3-T-331-SM, part number 60177812.

Specifications

Part Number: 60-1778-12

Manufacturer: Extron

Model: FOX3 T 331 SM

Condition: New

Max Resolution: 4096x2160 at 60 Hz, 4:4:4, bit-for-bit uncompressed over 2 fibers

Signal Type: DP 1.2a

Max Video Data Rate: 21.6 Gbps (5.4 Gbps per lane)

Max Pixel Clock: 594 MHz

Color Space: 4:4:4, 4:2:2

Color Bit Depth: 8 and 10 bits per color

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Horizontal Frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Video Input/Loop Out: 1 DisplayPort input, 1 DisplayPort loop out

Audio Input: 1 digital (DisplayPort-embedded) or 1 analog stereo, balanced/unbalanced, 3.5 mm captive screw 5-pole

Audio Input Gain Range: Adjustable, -18 dB to +24 dB, 1 dB steps

Audio Input Impedance: >=10k ohms unbalanced, >=20k ohms balanced

Audio Return Output: 1 analog stereo, balanced/unbalanced, 3.5 mm captive screw 5-pole

Audio Return Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Delay: Compressed or uncompressed 2-3 frames; compressed 0.5 frame, uncompressed 2 lines in non-scaling bypass mode

Gain: Unbalanced output -6 dB, balanced output 0 dB (default)

Gain Error: +/-0.5 dB channel to channel

Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

S/N Ratio: >90 dB at maximum output, unweighted

THD+N: <0.1% at 20 Hz to 20 kHz, nominal level

CMRR: 65 dB at 20 Hz to 20 kHz

Stereo Channel Separation: >80 dB at 1 kHz

Bit Depth: 16, 20, 24

Sampling Rate: 48 kHz

Source Formats: 2-CH LPCM

Fiber Connectors: 1-3 LC connectors (1-2 SFPs)

Operating Distance (Singlemode): Up to 20 km (12.4 miles)

Nominal Peak Wavelength: 1310 nm

Fiber Data Rate: 10 Gbps (1 fiber) or 20 Gbps (2 fibers)

Transmission Power (Singlemode): -5.2 dBm, typical

Maximum Receiver Sensitivity (Singlemode): -12.6 dBm, typical

Optical Loss Budget (Singlemode): 7.4 dB, maximum

USB Configuration Port: 1 front panel mini USB B, female, USB 2.0 low speed (Ethernet over USB)

USB Host Ports: 1-port USB HID, 1 USB Type B connector

USB Built-in Hubs: 0 minimum, 0 maximum (endpoint to endpoint; 1 hub when used with a FOX3 Matrix)

USB Extension Standards: USB 2.0, USB 1.1, USB 1.0 compatible

USB Data Rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

Serial Control Port: 1 RS-232, 3.5 mm captive screw, 5-pole (3 pins used), rear panel, 9600 baud

Serial Pass-Through Port: 1 RS-232, 3.5 mm captive screw, 5-pole (3 pins used), rear panel, 9600-115200 baud

IR Control Port: 1, 3.5 mm captive screw, 5-pole (shared with RS-232 pass-through), 30-56 kHz

Ethernet Control Port: 1 RJ-45, 10/100/1000Base-T, half/full duplex autodetect

Program Control: Extron Product Configuration Software, SIS commands

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption: 27.2 W

Thermal Dissipation: 80.2 BTU/hr

Ambient Temperature/Humidity: Storage -40 to 158 F, Operating 32 to 122 F, 10% to 90% noncondensing

Cooling: Fan, front-to-rear vented

Enclosure: Metal, 1.7" H x 8.75" W x 8.5" D, half-rack width

Mounting: Optional rack shelf or under-desk mounting kit

Weight: 2.4 lbs (1.1 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | FOX3 T 331 SM 60-1778-12 | FOX3 DisplayPort Extenders

Brochure | FOX3 T 331 SM 60-1778-12 | Extender DisplayPort FOX3

Brochure | FOX3 T 331 SM 60-1778-12 | Extendeurs DisplayPort FOX3

Brochure | FOX3 T 331 SM 60-1778-12 | Extensores FOX3 DisplayPort

Brochure | FOX3 T 331 SM 60-1778-12 | FOX3 321 和 331 DisplayPort 光纤延长器

Brochure | FOX3 T 331 SM 60-1778-12 | FOX3-DisplayPort-Extender

Manual | FOX3 T 331 SM 60-1778-12 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 T 331 SM 60-1778-12 | FOX3 T 321/331/211 Setup Guide

Manual | FOX3 T 331 SM 60-1778-12 | FOX3 T 321/331/211 User Guide

Specifications | FOX3 T 331 SM 60-1778-12 | FOX3 T 321/331

Panel Drawing | FOX3 T 331 SM 60-1778-12 | FOX3 T 331
