Details

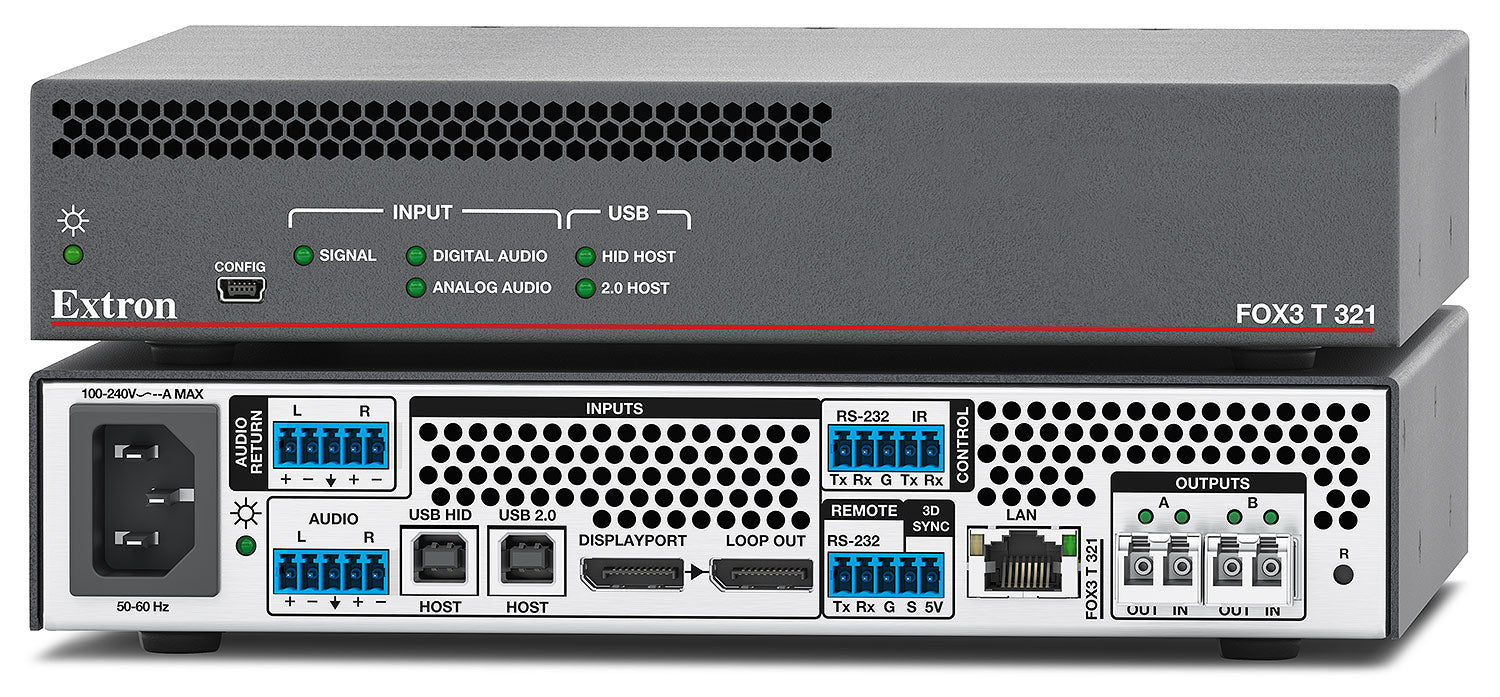

Extron FOX3 T 321 MM (part number 60-1777-13) — uncompressed 4K/60 multimode fiber optic transmitter for DisplayPort, USB, audio, RS-232, IR and 3D sync.

Of the four FOX3 T 321 builds Extron lists, 60-1777-13 is the multimode one that arrives uncompressed-enabled. Point it at two 850 nm multimode fibers and the full 4096x2160/60 4:4:4 DisplayPort picture crosses untouched; drop back to a single fiber and the same picture is carried mathematically lossless instead. Alongside the video, the transmitter tunnels a USB 2.0 host port, a HID-restricted port, balanced or unbalanced stereo audio, RS-232, IR and 3D sync, and a return audio channel comes back the other way.

Key Capabilities

Factory-enabled uncompressed 4K/60 4:4:4 across two multimode fibers.
DP 1.2a at 21.6 Gbps total, 5.4 Gbps per lane, 8 or 10 bits per color.
500 m (1640 feet) on 50 um OM4 fiber with a +9.7 dB multimode loss budget.
USB 2.0 extension at up to 480 Mbps plus a separate device-class-filtered HID port.
DisplayPort loop-out for a local monitor and internal test patterns for setup.
Audio delay of only 2 lines in uncompressed non-scaling bypass mode.

Where It Is Used

This is the build for rooms that will not tolerate any coding step in the chain: diagnostic reading rooms, simulation and mission rehearsal, colour-critical grading suites, and engineering visualisation walls. Multimode keeps the cost of the plant down while covering the 500 m span typical of a single building or connected block.

Specifications at a Glance

Optical data rate: 10.0 Gbps on one fiber, 20.0 Gbps on two
Transmission power: -3.3 dBm typical, multimode
Power: internal 100-240 VAC supply, 27.1 watts, 79.9 BTU/hr
Enclosure: metal, half rack wide, 1.7" H x 8.75" W x 8.5" D, 2.4 lbs
Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI

Also referenced as Extron FOX3T321MM, FOX3-T-321-MM, part number 60177713.

Specifications

Part Number: 60-1777-13

Manufacturer: Extron

Model: FOX3 T 321 MM

Condition: New

Version: Uncompressed 4K/60 Transmitter - Multimode

Signal Type: DP 1.2a

Maximum Video Data Rate: 21.6 Gbps (5.4 Gbps per lane)

Maximum Pixel Clock: 594 MHz

Resolution Range: 640x480 up to 4096x2160

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Color Space: 4:4:4, 4:2:2

Color Bit Depth: 8 and 10 bits per color

Horizontal Frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Format: RGB and YCbCr digital video

Maximum 4K Capability: 4096x2160 at 60 Hz with 4:4:4 chroma sampling

Video Input and Loop Out: 1 DisplayPort input; 1 DisplayPort loop out

Video Connectors: 1 female DisplayPort input; 1 female DisplayPort loop out

Optical Modules: 1 or 2 SFPs

Optical Connectors: 1, 2, or 3 LC connectors

Operating Distance (Multimode): 500 m (1640 feet) with 50 um OM4 4700 MHz bandwidth laser optimized multimode cables; OM1, OM2 and OM3 fiber work at reduced distances

Nominal Peak Wavelength: 850 nm for multimode

Optical Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power (Multimode): -3.3 dBm, typical

Maximum Receiver Sensitivity (Multimode): -13.0 dBm, typical

Optical Loss Budget (Multimode): +9.7 dB, maximum

Laser Safety: Class 1 laser; meets IEC 60825-1, FDA 21 CFR 1040.10 and FDA 21 CFR 1040.11

Audio Gain: Unbalanced output -6 dB; balanced output 0 dB (default)

Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

THD + Noise: Less than 0.1% at 20 Hz to 20 kHz at nominal level

Signal-to-Noise Ratio: Greater than 90 dB at maximum output, unweighted

CMRR: 65 dB at 20 Hz to 20 kHz

Stereo Channel Separation: Greater than 80 dB at 1 kHz

Audio Bit Depth: 16, 20, 24

Audio Sampling Rate: 48 kHz

Audio Input: 1 digital audio de-embedded from DisplayPort, or 1 analog stereo, balanced/unbalanced

Audio Input Connectors: 1 female DisplayPort (shared with video input); (1) 3.5 mm captive screw connector, 5 pole

Audio Input Impedance: 10k ohms or greater unbalanced; 20k ohms or greater balanced

Audio Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Audio Gain Range: Adjustable, -18 dB to +24 dB in 1 dB steps

Audio Source Formats: 2 CH LPCM

Audio Return Output: 1 analog stereo, balanced/unbalanced on (1) 3.5 mm captive screw connector, 5 pole

Audio Return Impedance: 50 ohms unbalanced; 100 ohms balanced (analog only)

Audio Return Maximum Level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced

Audio Gain Error: Plus or minus 0.5 dB channel to channel

Audio Delay: Compressed or uncompressed 2-3 frames; compressed 0.5 frame, uncompressed 2 lines in non-scaling bypass mode

USB Configuration Port: 1 front panel mini USB B, female; Ethernet over USB; USB 2.0, low speed

Serial Control Port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins used), rear panel

Serial Pass-Through Port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins used), rear panel

Baud Rate: Control 9600 baud, 8 data bits, 1 stop bit, no parity; pass-through 9600 to 115,200 baud

Serial Pin Configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND

IR Control Port: (1) 3.5 mm captive screw connector, 5 pole, shared with RS-232 pass-through; TTL level (0 to 5V) modulated infrared control from 30 kHz to 56 kHz

IR Pin Configuration: 3 = GND, 4 = IR Tx, 5 = IR Rx

Ethernet Port: 1 RJ-45 connector, female

Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect

Network Protocols: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP

Default Network Settings: IP address 192.168.254.254; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off

Program Control: Extron Product Configuration Software; Extron Simple Instruction Set (SIS)

USB Extension Standards: USB 2.0, USB 1.1, USB 1.0 compatible

USB Data Rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB Host Ports: 1-port USB HID and 1-port USB 2.0; 2 USB type B, female

Built-In USB Hubs: 0 maximum, 0 minimum

Power Supply: Internal; input 100-240 VAC, 50-60 Hz

Power Consumption: 27.1 watts

Thermal Dissipation: 79.9 BTU/hr

Ambient Temperature/Humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; Operating +32 to +122 F (0 to +50 C), 10% to 90% noncondensing

Cooling: Fan, air flows from front to rear (vented)

Mounting: Rack mount with optional rack shelf; furniture mount with optional under desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 8.75 in W x 8.5 in D (4.4 cm H x 22.2 cm W x 21.6 cm D), half rack wide; depth excludes connectors

Product Weight: 2.4 lbs (1.1 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
