Details

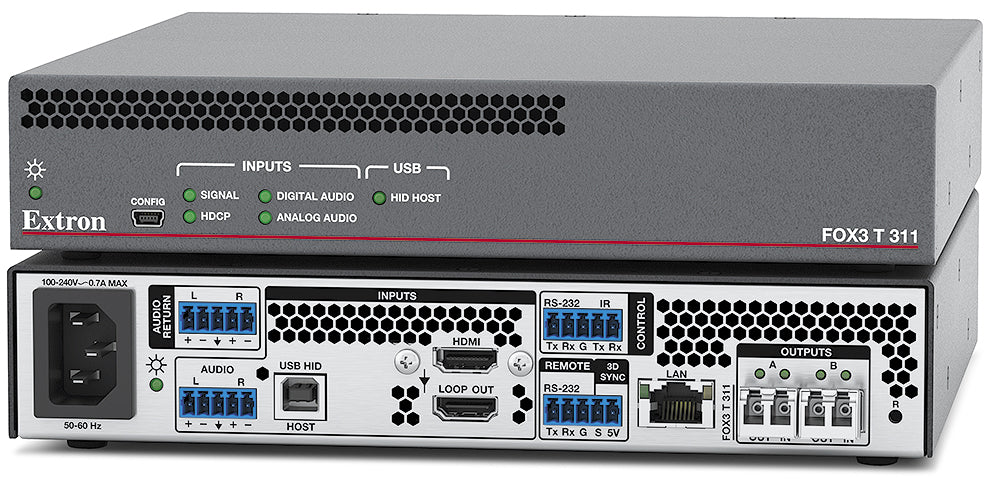

Extron FOX3 T 311 SM (part number 60-1523-14) — uncompressed 4K/60 singlemode fiber optic transmitter for HDMI, USB HID, audio, RS-232, IR and 3D sync.

Extron's model table separates the FOX3 T 311 SM into two builds, and 60-1523-14 is the uncompressed one: it ships already licensed to send a full 4096x2160/60 4:4:4 picture across a two-fiber link, with no LinkLicense purchase in the way. Video, HID-filtered USB, balanced or unbalanced analog audio, serial and infrared control all share the same 1310 nm singlemode path. Use it opposite a FOX3 R 311 receiver, or as an input to a FOX3 matrix switcher when many endpoints have to be fed at once.

Key Capabilities

Uncompressed 4K/60 4:4:4 transport over two singlemode fibers, enabled from the factory.
18.0 Gbps HDMI 2.0 pipe with HDCP 2.3 and a 594 MHz pixel clock limit.
20 km (12.4 miles) of 1310 nm singlemode reach through LC connectors.
Analog stereo input with -18 dB to +24 dB gain trim in 1 dB steps, sampled at 48 kHz.
10/100/1000Base-T management port supporting HTTPS, SSH, SFTP and DHCP.
RS-232 pass-through to 115,200 baud and an IR insertion port covering 30 kHz to 56 kHz.

Where It Is Used

Sites that will not accept any processing of the signal choose the uncompressed build: surgical and radiology displays, flight simulators, mission control and utility SCADA walls, film finishing suites, and secure facilities where the same fiber run also has to be tap-resistant. Its 20 km reach covers campus, terminal and stadium-scale distribution.

Specifications at a Glance

Optical loss budget: +7.4 dB maximum, singlemode
Power: internal 100-240 VAC supply drawing 23.3 watts
Thermal dissipation: 78.3 BTU/hr, front-to-rear fan cooling
Enclosure: metal, half rack wide, 1.7" H x 8.75" W x 8.5" D, 2.4 lbs
Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI

Also referenced as Extron FOX3T311SM, FOX3-T-311-SM, part number 60152314.

Specifications

Part Number: 60-1523-14

Manufacturer: Extron

Model: FOX3 T 311 SM

Condition: New

Version: Uncompressed 4K/60 Transmitter - Singlemode

Signal Type: HDMI 2.0, HDCP 2.3

Maximum Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Maximum Pixel Clock: 594 MHz

Resolution Range: 640x480 up to 4096x2160

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Color Space: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, and 12 bits per color

Horizontal Frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Format: RGB and YCbCr digital video

Maximum 4K Capability: 4096x2160 at 60 Hz with 4:4:4 chroma sampling

Video Input and Loop Out: 1 HDMI input; 1 HDMI loop out

Video Connectors: 1 female HDMI type A input; 1 female HDMI type A loop out

Power for Active Cables: 1.1 W maximum for the HDMI port

Optical Modules: 1 or 2 SFPs

Optical Connectors: 1, 2, or 3 LC connectors

Operating Distance (Singlemode): 20 km (12.4 miles) with singlemode (SM) cables

Nominal Peak Wavelength: 1310 nm for singlemode

Optical Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power (Singlemode): -5.2 dBm, minimum

Receiver Sensitivity (Singlemode): -12.6 dBm, maximum

Optical Loss Budget (Singlemode): +7.4 dB, maximum

Laser Safety: Class 1 laser; meets IEC 60825-1, FDA 21 CFR 1040.10 and FDA 21 CFR 1040.11

Audio Gain: Unbalanced output -6 dB; balanced output 0 dB (default)

Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

THD + Noise: Less than 0.1% at 20 Hz to 20 kHz at nominal level

Signal-to-Noise Ratio: Greater than 90 dB at maximum output, unweighted

CMRR: 65 dB at 20 Hz to 20 kHz

Stereo Channel Separation: Greater than 80 dB at 1 kHz

Audio Bit Depth: 16, 20, 24

Audio Sampling Rate: 48 kHz

Audio Input: 1 digital audio de-embedded from HDMI, or 1 analog stereo, balanced/unbalanced

Audio Input Connectors: 1 female HDMI (shared with video input); (1) 3.5 mm captive screw connector, 5 pole

Audio Input Impedance: 10k ohms or greater unbalanced; 20k ohms or greater balanced

Audio Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Audio Gain Range: Adjustable, -18 dB to +24 dB in 1 dB steps

Audio Source Formats: 2 CH LPCM

Audio Return Output: 1 analog stereo, balanced/unbalanced on (1) 3.5 mm captive screw connector, 5 pole

Audio Return Impedance: 50 ohms unbalanced; 100 ohms balanced (analog only)

Audio Return Maximum Level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced

Audio Gain Error: Plus or minus 0.5 dB channel to channel

USB Configuration Port: 1 front panel mini USB B, female; Ethernet over USB

Serial Control Port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins used), rear panel

Serial Pass-Through Port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins used), rear panel

Baud Rate: Control 9600 baud, 8 data bits, 1 stop bit, no parity; pass-through 9600 to 115,200 baud

Serial Pin Configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND

IR Control Port: (1) 3.5 mm captive screw connector, 5 pole, shared with RS-232 pass-through; TTL level (0 to 5V) modulated infrared control from 30 kHz to 56 kHz

IR Pin Configuration: 3 = GND, 4 = IR Tx, 5 = IR Rx

Ethernet Port: 1 RJ-45 connector, female

Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect

Network Protocols: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP

Default Network Settings: IP address 192.168.254.254; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off

Program Control: Extron Product Configuration Software; Extron Simple Instruction Set (SIS)

USB Extension Standard: USB 1.1 (USB 2.0 applies to FOX3 T 301 models only)

USB Host Support: OHCI/UHCI (USB 1.1)

USB Data Rates: Low speed (1.5 Mbps), full speed (12 Mbps)

USB Data Transfer Types: Bulk, control, interrupt, and isochronous

USB Host Port: 1-port USB HID; 1-port USB type B, female

Built-In USB Hubs: 0 maximum, 0 minimum

Power Supply: Internal; input 100-240 VAC, 50-60 Hz

Power Consumption: 23.3 watts

Thermal Dissipation: 78.3 BTU/hr

Ambient Temperature/Humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; Operating +32 to +122 F (0 to +50 C), 10% to 90% noncondensing

Cooling: Fan, air flows from front to rear (vented)

Mounting: Rack mount with optional rack shelf; furniture mount with optional under desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 8.75 in W x 8.5 in D (4.4 cm H x 22.2 cm W x 21.6 cm D), half rack wide; depth excludes connectors

Product Weight: 2.4 lbs (1.1 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
