Details

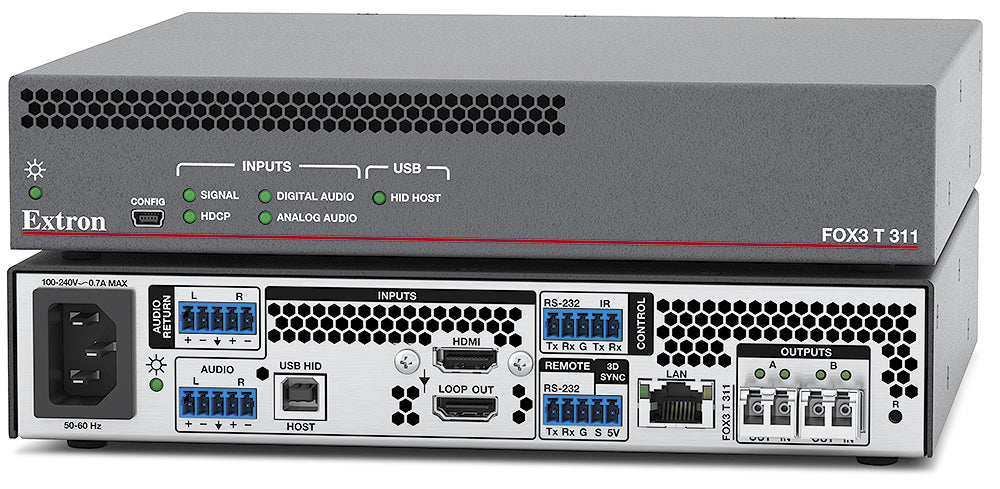

Extron FOX3 T 311 SM (part number 60-1523-12) — standalone singlemode fiber optic transmitter for HDMI, USB HID, stereo audio, RS-232, IR and 3D sync.

The FOX3 T 311 SM takes an HDMI 2.0 source and converts video, embedded or analog audio, HID-filtered USB, serial data, infrared and 3D sync into a 1310 nm optical stream on LC-terminated singlemode fiber. Extron identifies 60-1523-12 as the lossless singlemode version: one fiber carries a mathematically lossless 4096x2160/60 4:4:4 picture, while adding the FOX3 LinkLicense 70-1098-12 opens fully uncompressed two-fiber operation. The transmitter pairs with a FOX3 R 311 receiver point to point, or feeds a FOX3 matrix for facility-wide distribution.

Key Capabilities

Singlemode optics reach 20 km (12.4 miles) at 1310 nm with a +7.4 dB loss budget.
HDMI 2.0 and HDCP 2.3 handling up to 18.0 Gbps with a 594 MHz pixel clock.
Balanced or unbalanced analog stereo input with adjustable gain from -18 dB to +24 dB.
Gigabit RJ-45 port for HTTPS, SSH and SFTP monitoring, plus a front-panel mini USB B setup port.
RS-232 control and pass-through, and a 30 kHz to 56 kHz IR insertion port.
Key Minder and EDID Minder maintain HDCP authentication and EDID across the link.

Where It Is Used

Singlemode runs suit sites measured in kilometres rather than metres: airport terminals, stadiums, refineries, multi-building corporate and university campuses, and inter-facility links. Because light in a glass core leaks nothing and picks up nothing, the same hardware is routinely specified for medical imaging, courtroom, government and defence installations.

Specifications at a Glance

Optical data rate: 10.0 Gbps on one fiber, 20.0 Gbps on two
Power: internal 100-240 VAC supply, 23.3 watts, 78.3 BTU/hr
Enclosure: metal, 1.7" H x 8.75" W x 8.5" D, half rack wide
Weight: 2.4 lbs (1.1 kg)
Warranty: 3 years parts and labor; 7 years on the Everlast power supply

Also referenced as Extron FOX3T311SM, FOX3-T-311-SM, part number 60152312.

Specifications

Part Number: 60-1523-12

Manufacturer: Extron

Model: FOX3 T 311 SM

Condition: New

Version: Lossless 4K/60 Transmitter - Singlemode

Signal Type: HDMI 2.0, HDCP 2.3

Maximum Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Maximum Pixel Clock: 594 MHz

Resolution Range: 640x480 up to 4096x2160

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Color Space: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, and 12 bits per color

Horizontal Frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Format: RGB and YCbCr digital video

Maximum 4K Capability: 4096x2160 at 60 Hz with 4:4:4 chroma sampling

Video Input and Loop Out: 1 HDMI input; 1 HDMI loop out

Video Connectors: 1 female HDMI type A input; 1 female HDMI type A loop out

Power for Active Cables: 1.1 W maximum for the HDMI port

Optical Modules: 1 or 2 SFPs

Optical Connectors: 1, 2, or 3 LC connectors

Operating Distance (Singlemode): 20 km (12.4 miles) with singlemode (SM) cables

Nominal Peak Wavelength: 1310 nm for singlemode

Optical Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power (Singlemode): -5.2 dBm, minimum

Receiver Sensitivity (Singlemode): -12.6 dBm, maximum

Optical Loss Budget (Singlemode): +7.4 dB, maximum

Laser Safety: Class 1 laser; meets IEC 60825-1, FDA 21 CFR 1040.10 and FDA 21 CFR 1040.11

Audio Gain: Unbalanced output -6 dB; balanced output 0 dB (default)

Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

THD + Noise: Less than 0.1% at 20 Hz to 20 kHz at nominal level

Signal-to-Noise Ratio: Greater than 90 dB at maximum output, unweighted

CMRR: 65 dB at 20 Hz to 20 kHz

Stereo Channel Separation: Greater than 80 dB at 1 kHz

Audio Bit Depth: 16, 20, 24

Audio Sampling Rate: 48 kHz

Audio Input: 1 digital audio de-embedded from HDMI, or 1 analog stereo, balanced/unbalanced

Audio Input Connectors: 1 female HDMI (shared with video input); (1) 3.5 mm captive screw connector, 5 pole

Audio Input Impedance: 10k ohms or greater unbalanced; 20k ohms or greater balanced

Audio Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Audio Gain Range: Adjustable, -18 dB to +24 dB in 1 dB steps

Audio Source Formats: 2 CH LPCM

Audio Return Output: 1 analog stereo, balanced/unbalanced on (1) 3.5 mm captive screw connector, 5 pole

Audio Return Impedance: 50 ohms unbalanced; 100 ohms balanced (analog only)

Audio Return Maximum Level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced

Audio Gain Error: Plus or minus 0.5 dB channel to channel

USB Configuration Port: 1 front panel mini USB B, female; Ethernet over USB

Serial Control Port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins used), rear panel

Serial Pass-Through Port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins used), rear panel

Baud Rate: Control 9600 baud, 8 data bits, 1 stop bit, no parity; pass-through 9600 to 115,200 baud

Serial Pin Configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND

IR Control Port: (1) 3.5 mm captive screw connector, 5 pole, shared with RS-232 pass-through; TTL level (0 to 5V) modulated infrared control from 30 kHz to 56 kHz

IR Pin Configuration: 3 = GND, 4 = IR Tx, 5 = IR Rx

Ethernet Port: 1 RJ-45 connector, female

Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect

Network Protocols: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP

Default Network Settings: IP address 192.168.254.254; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off

Program Control: Extron Product Configuration Software; Extron Simple Instruction Set (SIS)

USB Extension Standard: USB 1.1 (USB 2.0 applies to FOX3 T 301 models only)

USB Host Support: OHCI/UHCI (USB 1.1)

USB Data Rates: Low speed (1.5 Mbps), full speed (12 Mbps)

USB Data Transfer Types: Bulk, control, interrupt, and isochronous

USB Host Port: 1-port USB HID; 1-port USB type B, female

Built-In USB Hubs: 0 maximum, 0 minimum

Power Supply: Internal; input 100-240 VAC, 50-60 Hz

Power Consumption: 23.3 watts

Thermal Dissipation: 78.3 BTU/hr

Ambient Temperature/Humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; Operating +32 to +122 F (0 to +50 C), 10% to 90% noncondensing

Cooling: Fan, air flows from front to rear (vented)

Mounting: Rack mount with optional rack shelf; furniture mount with optional under desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 8.75 in W x 8.5 in D (4.4 cm H x 22.2 cm W x 21.6 cm D), half rack wide; depth excludes connectors

Product Weight: 2.4 lbs (1.1 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | FOX3 T 311 SM 60-1523-12 | FOX3 Systems (fox3_matrix_series_vA5.pdf)

Brochure | FOX3 T 311 SM 60-1523-12 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)

Brochure | FOX3 T 311 SM 60-1523-12 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)

Brochure | FOX3 T 311 SM 60-1523-12 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)

Brochure | FOX3 T 311 SM 60-1523-12 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)

Brochure | FOX3 T 311 SM 60-1523-12 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)

Brochure | FOX3 T 311 SM 60-1523-12 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)

Manual | FOX3 T 311 SM 60-1523-12 | Cleaning Instruction Card

Manual | FOX3 T 311 SM 60-1523-12 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 T 311 SM 60-1523-12 | FOX3 T/R 301 and FOX3 T/R 311 Setup Guide

Manual | FOX3 T 311 SM 60-1523-12 | FOX3 T/R 301/311 User Guide

Specifications | FOX3 T 311 SM 60-1523-12 | FOX3 T 301/311

Specifications | FOX3 T 311 SM 60-1523-12 | FOX3 T/R 301/311

Panel Drawing | FOX3 T 311 SM 60-1523-12 | FOX3 T 311
