Extron FOX3 T 311 PC SM Fiber Optic HDMI Transmitter
- • Factory-enabled uncompressed 4K/60 4:4:4 over two singlemode fibers
- • 20 km (12.4 miles) singlemode reach at 1310 nm
- • HDMI 2.0 and HDCP 2.3 at data rates up to 18.0 Gbps
- • Hot-swappable card; four fit one PowerCage 411 rack unit
- • HID-only USB host port for high-security KVM extension
- • Analog or HDMI-de-embedded stereo audio sampled at 48 kHz
- • 18.2 W draw and 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

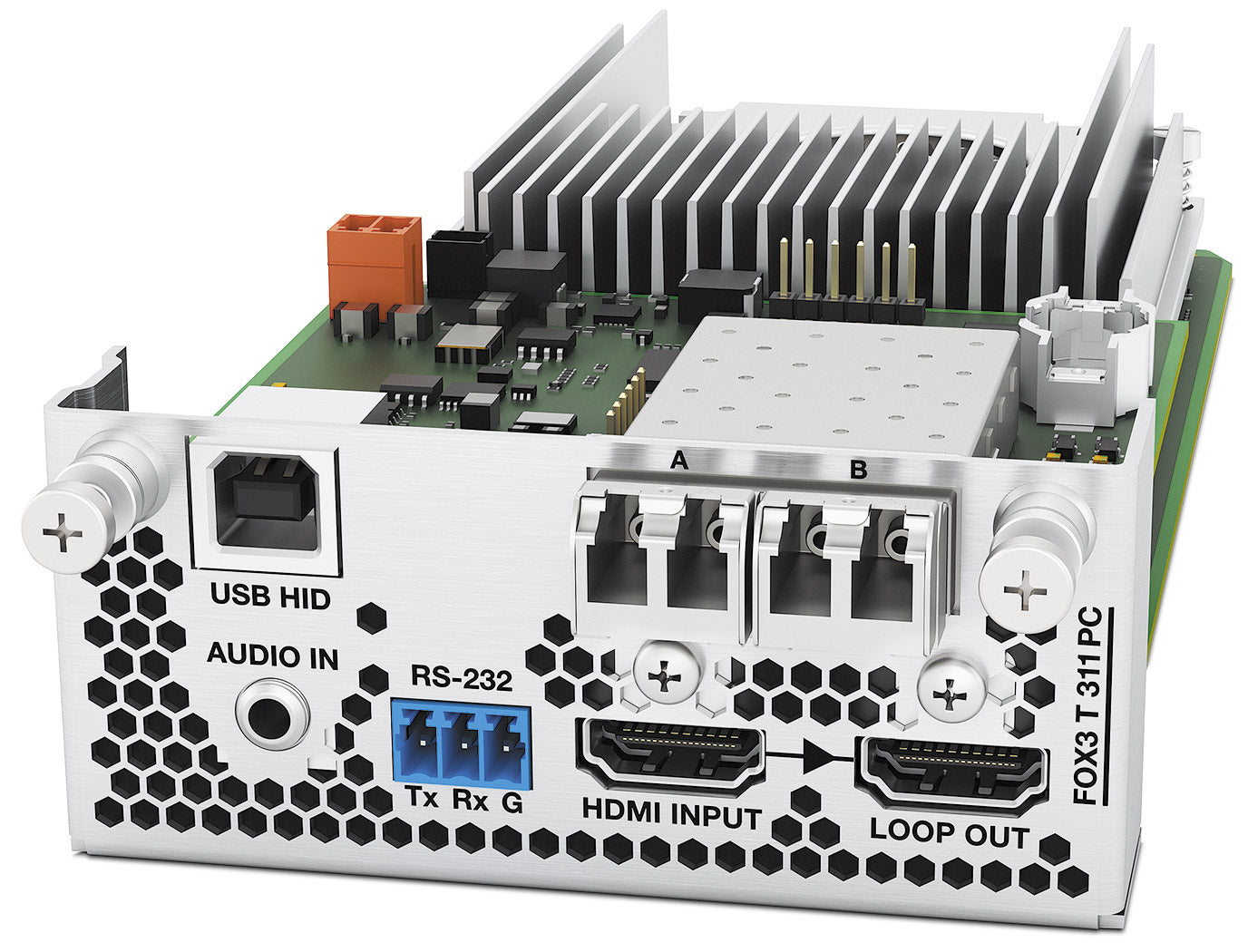

Extron FOX3 T 311 PC SM (part number 70-1223-14) — uncompressed 4K/60 singlemode PowerCage transmitter module for HDMI, USB HID, audio and RS-232.
Extron's part table lists 70-1223-14 as the uncompressed singlemode build of the FOX3 T 311 PC. It is the same hot-swappable single-slot card as the lossless version, already licensed at the factory for two-fiber uncompressed transport of a 4096x2160/60 4:4:4 picture; a one-fiber link still carries the same image mathematically lossless. HDMI 2.0 video, HID-filtered USB, unbalanced stereo audio and serial control all ride the 1310 nm singlemode pair through LC connectors, and the host PowerCage 411 enclosure supplies power, forced-air cooling and a redundant supply.
Key Capabilities
- Factory-enabled uncompressed 4K/60 4:4:4 over two singlemode fibers, no LinkLicense needed.
- 18.0 Gbps HDMI 2.0 throughput with HDCP 2.3 and a 594 MHz pixel clock ceiling.
- 1310 nm singlemode optics reaching 20 km (12.4 miles) with a +7.4 dB loss budget.
- HID-only USB host port, one built-in hub, for high-security KVM extension.
- Analog stereo on a 3.5 mm jack or audio de-embedded from the HDMI stream at 48 kHz.
- Four modules fit one PowerCage 411 chassis, giving four transmitters per rack unit.
Where It Is Used
Uncompressed fiber links are specified when nothing may be inferred or discarded in the signal path: diagnostic imaging and surgical video, air traffic and utility control rooms, simulation suites, post-production, and secure military or intelligence facilities. The rack-dense PowerCage format also suits campus and stadium head-ends feeding many remote displays.
Specifications at a Glance
- Optical data rate: 10.0 Gbps on one fiber, 20.0 Gbps on two
- Transmission power: -5.2 dBm minimum, singlemode
- Power consumption: 18.2 watts, drawn from the PowerCage 411
- Module size: 1.6" H x 3.5" W x 8.0" D; 0.9 lbs (0.4 kg)
- Warranty: 3 years parts and labor
Also referenced as Extron FOX3T311PCSM, FOX3-T-311-PC-SM, part number 70122314.
