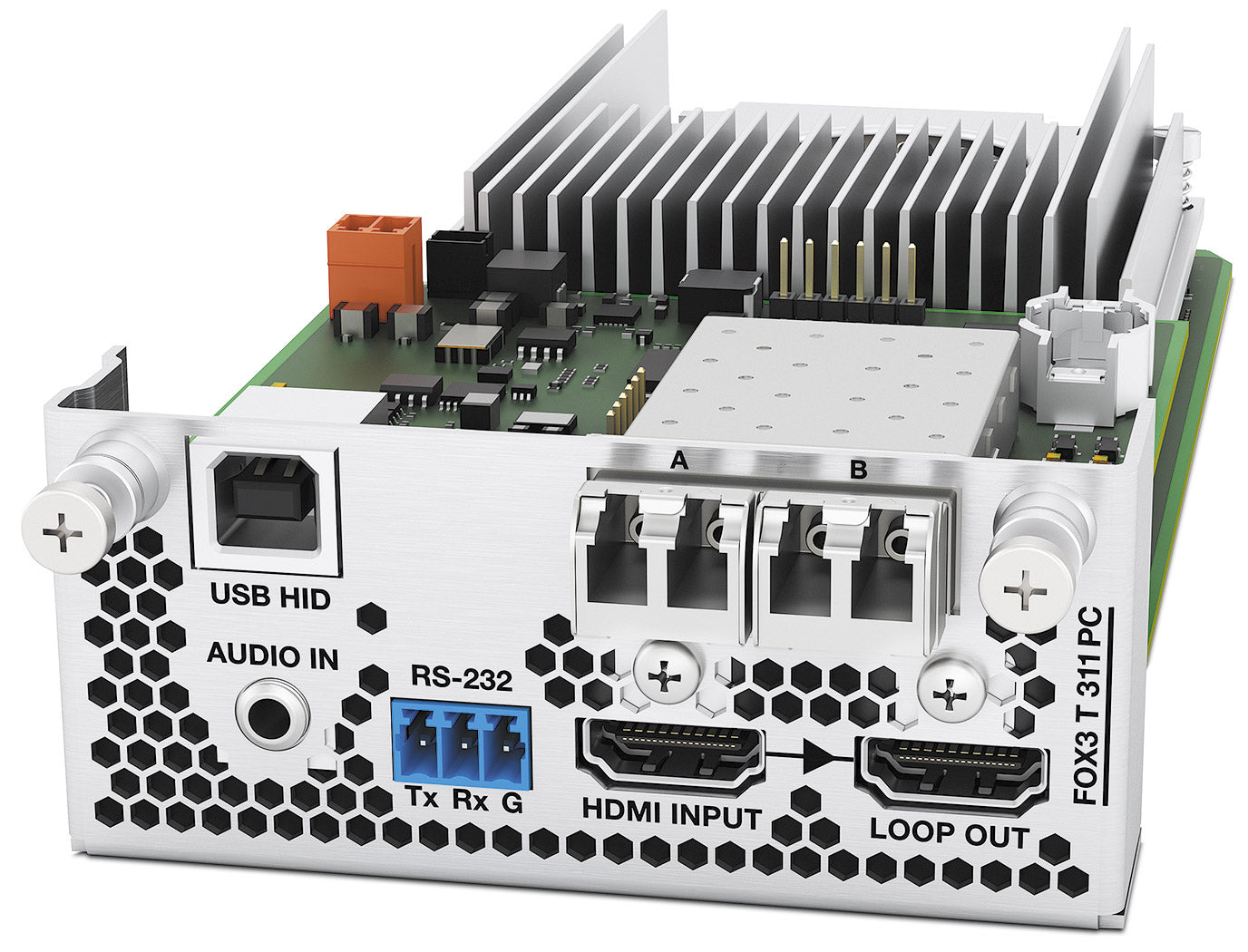

Extron FOX3 T 311 PC SM (part number 70-1223-12) — singlemode PowerCage fiber optic transmitter for HDMI, USB HID, stereo audio and RS-232 control.

This is the card version of Extron's FOX3 transmitter, built to sit inside a PowerCage 411 enclosure (Extron part 60-1492-02) rather than in a chassis of its own. It digitizes an HDMI 2.0 source along with unbalanced stereo audio and serial data, then launches all of it onto 1310 nm singlemode fiber through LC connectors. Extron catalogues this particular part as the lossless singlemode build: a mathematically lossless 4096x2160/60 image at 4:4:4 travels over one fiber, and the matching LinkLicense (70-1098-12) unlocks fully uncompressed transport across two fibers. Modules are hot-swappable, so a card can be exchanged without taking the rack offline.

Key Capabilities

HDMI 2.0 with HDCP 2.3, data rates to 18.0 Gbps and a 594 MHz maximum pixel clock.
Singlemode optical reach of 20 km (12.4 miles) at 1310 nm over LC-terminated fiber.
USB HID host port with device class filtering, plus one built-in USB hub, for secure KVM work.
Audio de-embedded from HDMI, or a 3.5 mm unbalanced analog stereo input, sampled at 48 kHz.
RS-232 pass-through from 9600 to 115,200 baud on a 3-pole captive screw connector.
Key Minder and EDID Minder hold HDCP keys and EDID negotiated across the link.

Where It Is Used

Fiber transport gets specified where copper cannot reach or cannot be trusted, so this module turns up in campus and airport backbones, hospital imaging and operating-room feeds, broadcast plants, courtrooms, and secure government or military control rooms. The PowerCage form factor suits racks where four transmitters have to share a single rack unit.

Specifications at a Glance

Maximum data rate: 18.0 Gbps (6.0 Gbps per color)
Optical data rate: 10.0 Gbps over one fiber, 20.0 Gbps over two
Power consumption: 18.2 watts; thermal dissipation 61.1 BTU/hr
Module size: 1.6" H x 3.5" W x 8.0" D, one PowerCage 411 slot
Weight: 0.9 lbs (0.4 kg)

Also referenced as Extron FOX3T311PCSM, FOX3-T-311-PC-SM, part number 70122312.

Specifications

Part Number: 70-1223-12

Manufacturer: Extron

Model: FOX3 T 311 PC SM

Condition: New

Version: Lossless 4K/60 Transmitter - Singlemode

Signal Type: HDMI 2.0, HDCP 2.3

Maximum Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Maximum Pixel Clock: 594 MHz

Resolution Range: 640x480 up to 4096x2160

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Color Space: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, and 12 bits per color

Horizontal Frequency: 24 kHz to 135 kHz

Vertical Frequency: 24 Hz to 120 Hz (depending on the resolution)

Format: RGB and YCbCr digital video

Maximum 4K Capability: 4096x2160 at 60 Hz with 4:4:4 chroma sampling

Video Input and Loop Out: 1 HDMI input; 1 HDMI loop out

Video Connectors: 1 female HDMI type A input; 1 female HDMI type A loop out

Power for Active Cables: 1.1 watts

Optical Modules: 1 or 2 SFPs

Optical Connectors: 1, 2, or 3 LC connectors

Operating Distance (Singlemode): 20 km (12.4 miles) with singlemode (SM) cables

Nominal Peak Wavelength: 1310 nm for singlemode

Optical Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power (Singlemode): -5.2 dBm, minimum

Receiver Sensitivity (Singlemode): -12.6 dBm, maximum

Optical Loss Budget (Singlemode): +7.4 dB, maximum

Laser Safety: Class 1 laser product; meets the safety regulations of IEC-60825

Audio Gain: Unbalanced output: -6 dB

Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

THD + Noise: Less than 0.03% at 20 Hz to 20 kHz at maximum output

Signal-to-Noise Ratio: Greater than 90 dB at maximum input (7 dBV), unweighted

CMRR: 65 dB at 20 Hz to 20 kHz

Stereo Channel Separation: Greater than 80 dB at 1 kHz to 20 kHz

Audio Bit Depth: 16, 20, 24

Audio Sampling Rate: 48 kHz

Audio Input: 1 digital audio de-embedded from HDMI (2-CH, PCM only) or 1 analog stereo, unbalanced

Audio Input Connectors: 1 female HDMI (shared with video input); (1) 3.5 mm mini stereo jack, 2 channels

Audio Input Impedance: Greater than 10k ohms, DC coupled

Audio Nominal Level: -10 dBV (316 mVrms)

Audio Maximum Level: +7 dBV unbalanced

Audio Source Formats: 2-CH LPCM

Program Control: Extron Product Configuration Software; Extron Simple Instruction Set (SIS)

RS-232 Pass-Through Port: (1) 3.5 mm captive screw connector, 3-pole

Pass-Through Baud Rate: 9600 to 115,200 baud

Pass-Through Pin Configuration: 1 = Tx, 2 = Rx, 3 = GND

USB Standards: USB 2.0, USB 1.1, USB 1.0 compatible

USB Data Rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB Data Transfer Types: Bulk, control, interrupt, and isochronous

USB Host Port: 1-port USB HID; 1 USB type B, female

Built-In USB Hubs: 1 maximum, 1 minimum

Power Supply: Internal; powered by the PowerCage 411 enclosure

Power Consumption: 18.2 watts

Thermal Dissipation: 61.1 BTU/hr

Ambient Temperature/Humidity: Storage -40 to +158 F (-40 to +70 C), 10% to 90% noncondensing; Operating +32 to +104 F (0 to +40 C), 10% to 90% noncondensing

Cooling: Fans, front to back within the PowerCage 411 enclosure

Module Dimensions: 1.6 in H x 3.5 in W x 8.0 in D; fits a single slot opening in a PowerCage 411 enclosure (depth excludes connectors)

Product Weight: 0.9 lbs (0.4 kg)

Host Enclosure: PowerCage 411, Extron part 60-1492-02

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, FSA Class 1, ICES, UL, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
