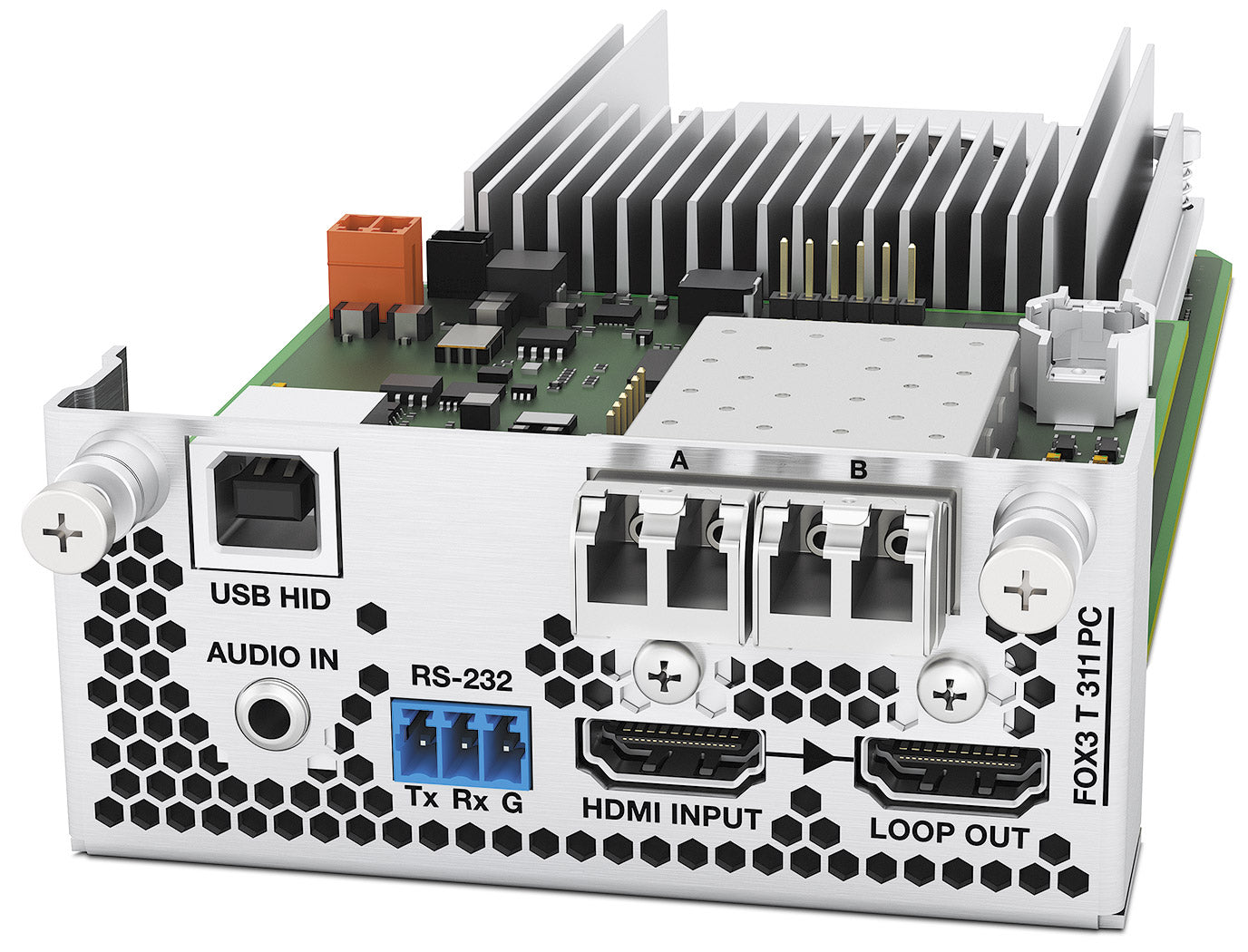

Extron FOX3 T 311 PC MM (part number 70-1223-13) — a single-slot, multimode fiber HDMI transmitter module for the PowerCage 411 enclosure, configured for bit-for-bit uncompressed transmission over two fibers.

This card-style transmitter drops into any open slot of a PowerCage 411 chassis and draws its power directly from the shared enclosure. It accepts an HDMI source plus analog or embedded stereo audio, offers a USB HID connection for peripherals, and includes RS-232 pass-through, then converts everything to light for transport across up to 500 meters of OM4 multimode fiber, uncompressed and 4:4:4.

Key Capabilities

Bit-for-bit uncompressed 4096x2160 at 60 Hz, 4:4:4 HDMI 2.0/HDCP 2.3 over two fibers
Multimode fiber reach to 500 m (1640 ft) on OM4 laser-optimized cable
USB HID port for keyboard, mouse, and touch-panel extension
Analog stereo or HDMI-embedded digital audio input with RS-232 pass-through
Powered entirely by the PowerCage 411 enclosure — no per-module power supply required
Compact card format, 3-year Extron warranty plus 7-year Everlast coverage on the enclosure's power supply

Where It Is Used

Built for multi-room AV installs — classrooms, boardrooms, command centers — where several fiber links share a single centralized PowerCage 411 chassis and the video must remain bit-for-bit uncompressed.

Specifications at a Glance

Video: HDMI 2.0/HDCP 2.3, up to 4096x2160 at 60 Hz, 4:4:4, 18 Gbps
Fiber: multimode, 500 m max reach, 1-3 LC connectors, 850 nm
USB: 1-port USB HID
Module: 1.6"H x 3.5"W x 8.0"D, 0.9 lbs, PowerCage 411 slot-mount

Also referenced as Extron FOX3T311PCMM, FOX3-T-311-PC-MM, part number 70122313.

Specifications

Part Number: 70-1223-13

Manufacturer: Extron

Model: FOX3 T 311 PC MM

Condition: New

Max Resolution: 4096x2160 at 60 Hz, 4:4:4, bit-for-bit uncompressed over 2 fibers

Signal Type: HDMI 2.0, HDCP 2.3

Max Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Max Pixel Clock: 594 MHz

Color Space: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, and 12 bits per color

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Horizontal Frequency: 24 kHz to 135 kHz

Vertical Frequency: 24 Hz to 120 Hz, depending on resolution

Video Input/Loop Out: 1 HDMI input, 1 HDMI loop out

Power for Active Cables: 1.1 W

Audio Input: 1 digital (HDMI-embedded, 2-CH PCM) or 1 analog stereo, 3.5 mm mini jack, unbalanced

Audio Gain: Unbalanced output -6 dB

Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

S/N Ratio: >90 dB at maximum input (7 dBV), unweighted

THD+N: <0.03% at 20 Hz to 20 kHz, maximum output

CMRR: 65 dB at 20 Hz to 20 kHz

Fiber Connectors: 1-3 LC connectors (1-2 SFPs)

Operating Distance (Multimode): Up to 500 m (1640 ft) on 50 µm OM4 fiber

Nominal Peak Wavelength: 850 nm

Fiber Data Rate: 10 Gbps (1 fiber) or 20 Gbps (2 fibers)

Transmission Power (Multimode): -2.8 dBm, minimum

Receiver Sensitivity (Multimode): -11.1 dBm, maximum

Optical Loss Budget (Multimode): 8.3 dB, maximum

USB Host Ports: 1-port USB HID, 1 USB Type B connector (FOX3 T 311 PC only)

USB Built-in Hubs: 1 minimum, 1 maximum

USB Standards: USB 2.0, USB 1.1, USB 1.0 compatible

USB Data Rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

RS-232 Pass-Through Port: 1, 3.5 mm captive screw, 3-pole, 9600-115200 baud

Program Control: Extron Product Configuration Software, SIS commands

Power Supply: Internal, powered by the PowerCage 411 enclosure (no module-level supply)

Power Consumption: 18.2 W

Thermal Dissipation: 61.1 BTU/hr

Ambient Temperature/Humidity: Storage -40 to 158 F, Operating 32 to 104 F, 10% to 90% noncondensing

Cooling: Fans, front-to-back, within the PowerCage 411 enclosure

Module Dimensions: 1.6" H x 3.5" W x 8.0" D, fits one PowerCage 411 slot (depth excludes connectors)

Weight: 0.9 lbs (0.4 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, FSA Class 1, ICES, UL, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor (PowerCage 411 enclosure supply)

Diagram

Resources

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 Systems (fox3_matrix_series_vA5.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 T 311 PC (fox3_t_311_pc_revA.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | PowerCage 411

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 T 311 PC (FOX3-T-311-PC_BR_A4_FR_RevA.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 T 311 PC (FOX3-T-311-PC_BR_A4_GE_RevA.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 T 311 PC (FOX3-T-311-PC_BR_A4_IT_RevA.pdf)

Brochure | FOX3 T 311 PC MM 70-1223-13 | FOX3 T 311 PC (FOX3-T-311-PC_BR_A4_SP_RevA.pdf)

Manual | FOX3 T 311 PC MM 70-1223-13 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 T 311 PC MM 70-1223-13 | FOX3 T 301/311/201 PC Setup Guide

Manual | FOX3 T 311 PC MM 70-1223-13 | PowerCage 411 Series User Guide

Specifications | FOX3 T 311 PC MM 70-1223-13 | FOX3 T 301/311/201 PC

Panel Drawing | FOX3 T 311 PC MM 70-1223-13 | FOX3 T 311 PC
