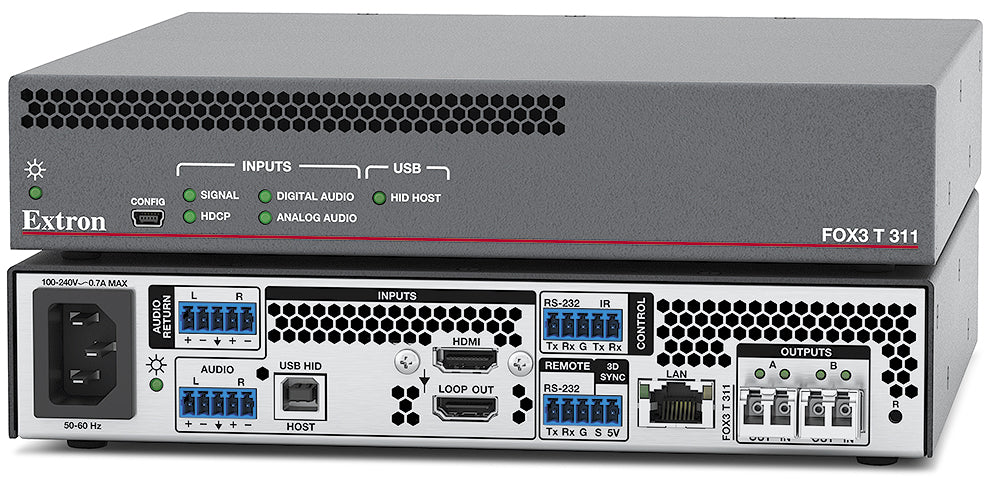

Extron FOX3 T 311 MM (part number 60-1523-13) — a multimode fiber transmitter for HDMI video, USB HID, stereo audio, and RS-232/IR control, configured for bit-for-bit uncompressed transmission over two fibers.

This half-rack transmitter accepts an HDMI source, an analog or HDMI-embedded audio input, and a USB HID peripheral connection, then sends the combined signal out over multimode fiber at up to 4096x2160 at 60 Hz, 4:4:4, bit-for-bit uncompressed across two fiber strands.

Key Capabilities

Uncompressed 4096x2160 at 60 Hz, 4:4:4 HDMI 2.0/HDCP 2.3 transmission over two fibers
Multimode fiber reach to 500 m (1640 ft) on OM4 laser-optimized cable
Dedicated USB HID port for keyboard, mouse, and touch-panel extension
Balanced/unbalanced stereo audio input and return with adjustable gain
RS-232 and IR insertion plus Ethernet monitoring and control
Half-rack metal enclosure backed by a 3-year warranty and 7-year Everlast PSU coverage

Where It Is Used

Fits fixed-installation AV rooms — classrooms, conference spaces, control rooms — where the video must stay bit-for-bit uncompressed and only HID-level USB is needed.

Specifications at a Glance

Video: HDMI 2.0/HDCP 2.3, up to 4096x2160 at 60 Hz, 4:4:4, 18 Gbps
Fiber: multimode, 500 m max reach, 1-3 LC connectors, 850 nm
USB: 1-port USB HID only
Enclosure: half-rack metal, 1.7"H x 8.75"W x 8.5"D, 2.4 lbs

Also referenced as Extron FOX3T311MM, FOX3-T-311-MM, part number 60152313.

Specifications

Part Number: 60-1523-13

Manufacturer: Extron

Model: FOX3 T 311 MM

Condition: New

Max Resolution: 4096x2160 at 60 Hz, 4:4:4, bit-for-bit uncompressed over 2 fibers

Signal Type: HDMI 2.0, HDCP 2.3

Max Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Max Pixel Clock: 594 MHz

Color Space: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, and 12 bits per color

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Horizontal Frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Video Input/Loop Out: 1 HDMI input, 1 HDMI loop out

Power for Active Cables: 1.1 W max for the HDMI port

Audio Input: 1 digital (HDMI-embedded) or 1 analog stereo, balanced/unbalanced, 3.5 mm captive screw 5-pole

Audio Input Gain Range: Adjustable, -18 dB to +24 dB, 1 dB steps

Audio Input Impedance: >=10k ohms unbalanced, >=20k ohms balanced

Audio Return Output: 1 analog stereo, balanced/unbalanced, 3.5 mm captive screw 5-pole

Audio Return Impedance: 50 ohms unbalanced, 100 ohms balanced

Gain: Unbalanced output -6 dB, balanced output 0 dB (default)

Gain Error: +/-0.5 dB channel to channel

Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

S/N Ratio: >90 dB at maximum output, unweighted

THD+N: <0.1% at 20 Hz to 20 kHz, nominal level

CMRR: 65 dB at 20 Hz to 20 kHz

Stereo Channel Separation: >80 dB at 1 kHz

Bit Depth: 16, 20, 24

Sampling Rate: 48 kHz

Source Formats: 2-CH LPCM

Fiber Connectors: 1-3 LC connectors (1-2 SFPs)

Operating Distance (Multimode): Up to 500 m (1640 ft) on 50 µm OM4 fiber

Nominal Peak Wavelength: 850 nm

Fiber Data Rate: 10 Gbps (1 fiber) or 20 Gbps (2 fibers)

Transmission Power (Multimode): -2.8 dBm, minimum

Receiver Sensitivity (Multimode): -11.1 dBm, maximum

Optical Loss Budget (Multimode): 8.3 dB, maximum

USB Configuration Port: 1 front panel mini USB B, female (Ethernet over USB)

USB Host Ports: 1-port USB HID, 1 USB Type B connector (FOX3 T 311 does not include a USB 2.0 extension port)

USB Built-in Hubs: 0 minimum, 0 maximum (endpoint to endpoint; 1 hub when used with a FOX3 Matrix)

USB Extension Standards: USB 1.1 (HID only — T 311 does not support the USB 2.0 extension standard reserved for T 301 models)

USB Host Support: OHCI/UHCI (USB 1.1)

USB Data Rates: Low speed (1.5 Mbps), full speed (12 Mbps)

Serial Control Port: 1 RS-232, 3.5 mm captive screw, 5-pole (3 pins used), rear panel, 9600 baud

Serial Pass-Through Port: 1 RS-232, 3.5 mm captive screw, 5-pole (3 pins used), rear panel, 9600-115200 baud

IR Control Port: 1, 3.5 mm captive screw, 5-pole (shared with RS-232 pass-through), 30-56 kHz

Ethernet Control Port: 1 RJ-45, 10/100/1000Base-T, half/full duplex autodetect

Program Control: Extron Product Configuration Software, SIS commands

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption: 23.3 W

Thermal Dissipation: 78.3 BTU/hr

Ambient Temperature/Humidity: Storage -40 to 158 F, Operating 32 to 122 F, 10% to 90% noncondensing

Cooling: Fan, front-to-rear vented

Enclosure: Metal, 1.7" H x 8.75" W x 8.5" D, half-rack width

Mounting: Optional rack shelf or under-desk mounting kit

Weight: 2.4 lbs (1.1 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

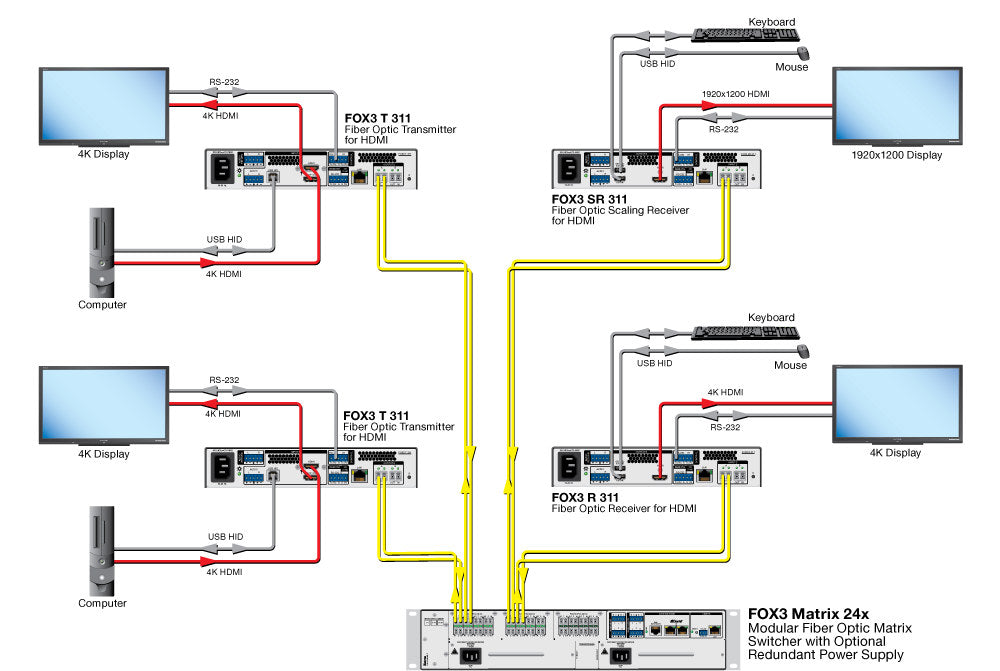

Diagram

Resources

Brochure | FOX3 T 311 MM 60-1523-13 | FOX3 Systems (fox3_matrix_series_vA5.pdf)

Brochure | FOX3 T 311 MM 60-1523-13 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)

Brochure | FOX3 T 311 MM 60-1523-13 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)

Brochure | FOX3 T 311 MM 60-1523-13 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)

Brochure | FOX3 T 311 MM 60-1523-13 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)

Brochure | FOX3 T 311 MM 60-1523-13 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)

Brochure | FOX3 T 311 MM 60-1523-13 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)

Manual | FOX3 T 311 MM 60-1523-13 | Cleaning Instruction Card

Manual | FOX3 T 311 MM 60-1523-13 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 T 311 MM 60-1523-13 | FOX3 T/R 301 and FOX3 T/R 311 Setup Guide

Manual | FOX3 T 311 MM 60-1523-13 | FOX3 T/R 301/311 User Guide

Specifications | FOX3 T 311 MM 60-1523-13 | FOX3 T 301/311

Specifications | FOX3 T 311 MM 60-1523-13 | FOX3 T/R 301/311

Panel Drawing | FOX3 T 311 MM 60-1523-13 | FOX3 T 311
