Details

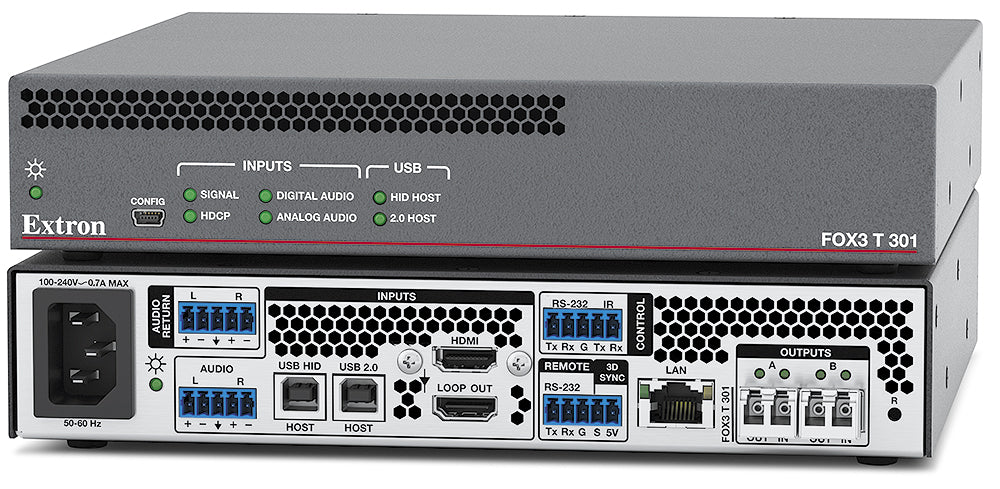

Extron FOX3 T 301 SM (part number 60-1522-14) — a singlemode fiber transmitter for HDMI video, USB, stereo audio, and RS-232/IR control, configured for uncompressed transmission over two fibers across long runs.

This half-rack transmitter accepts an HDMI input, a discrete analog audio input, and USB HID plus general USB 2.0 traffic, then sends the combined signal out over two singlemode fibers at up to 4096x2160 at 60 Hz, 4:4:4 color, bit-for-bit uncompressed, with reach to 20 km at 1310 nm.

Key Capabilities

Uncompressed 4096x2160 at 60 Hz, 4:4:4 HDMI 2.0/HDCP 2.3 transmission over two fibers
Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
USB 2.0 extension plus dedicated USB HID port for full peripheral support
Discrete stereo audio input with adjustable gain, -18 dB to +24 dB, plus an audio return path
RS-232 and IR insertion plus HDMI loop-out for local monitoring
Front-panel USB configuration port and rear RJ-45 for Ethernet monitoring

Where It Is Used

Fits campus-scale USB-camera and peripheral extension for production, broadcast, and enterprise AV/IT installs where the video must be bit-for-bit uncompressed and the link runs well beyond multimode range.

Specifications at a Glance

Video: HDMI 2.0/HDCP 2.3, up to 4096x2160 at 60 Hz, 4:4:4, 18 Gbps
Fiber: singlemode, 20 km max reach, 1-3 LC connectors, 1310 nm
USB: 2-port (1 HID + 1 USB 2.0), full-speed extension
Enclosure: half-rack metal, 1.7"H x 8.75"W x 8.5"D, 2.4 lbs

Also referenced as Extron FOX3T301SM, FOX3-T-301-SM, part number 60152214.

Specifications

Part Number: 60-1522-14

Manufacturer: Extron

Model: FOX3 T 301 SM

Condition: New

Video Input: 1 HDMI, HDCP 2.3 compliant

Video Loop Out: 1 HDMI

Max Video Data Rate: 18.0 Gbps (6.0 Gbps per graphics channel)

Max Pixel Clock: 594 MHz

Max Resolution: 4096x2160 at 60 Hz, 4:4:4, bit-for-bit uncompressed over 2 fibers

Standards Supported: HDMI 2.0, HDCP 2.3 (backward compatible with HDCP 1.4)

Power for Active Cables: 1.1 W

Audio Input: 1 stereo, unbalanced, 3.5 mm captive screw, 2 Vrms max

Audio Input Gain: -18 dB to +24 dB

Audio Return Output: 1 stereo, unbalanced, 3.5 mm captive screw, 2 Vrms max

Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

S/N Ratio: >100 dB unweighted

THD+N: <0.05%, 20 Hz to 20 kHz, unweighted

Fiber Connectors: 2 LC (singlemode, duplex)

Operating Distance (Singlemode): Up to 20 km (12.4 miles)

Nominal Peak Wavelength: 1310 nm

Fiber Data Rate: Up to 10.3 Gbps per fiber (2 fibers used)

Transmission Power (Singlemode): -5.2 dBm

Receiver Sensitivity (Singlemode): -12.6 dBm

Optical Loss Budget (Singlemode): 7.4 dB

USB Configuration Port: 1 USB Type B (mini), front panel, for setup only

USB Host Ports: 2 USB Type B connectors - 1 USB HID, 1 USB 2.0 (FOX3 T 301 models only)

USB Extension Standards: USB 2.0 full-speed and low-speed, HID class

Serial Host/Device Port: 1 RS-232, bidirectional, for pass-through control

IR Control Port: 1 IR, insertion/pass-through, 3.5 mm mini jack

Ethernet Control Port: 1 RJ-45, 10/100 Mbps, for monitoring and control

Program Control: SIS commands via RS-232, USB, or Ethernet

Power Supply: Internal, 100-240 VAC, 50/60 Hz

Power Consumption: 23.3 W

Thermal Dissipation: 78.3 BTU/hr

Ambient Operating Temperature: 32 to 122 F (0 to 50 C)

Operating Humidity: 10% to 90%, noncondensing

Cooling: Convection, no fan

Enclosure Dimensions: 1.7" H x 8.75" W x 8.5" D (half-rack width metal enclosure)

Mounting: Optional rack shelf or under-desk/surface mounting brackets

Weight: 2.4 lbs (1.1 kg)

Regulatory Compliance: CE, FCC Class A, IC, RoHS

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years
