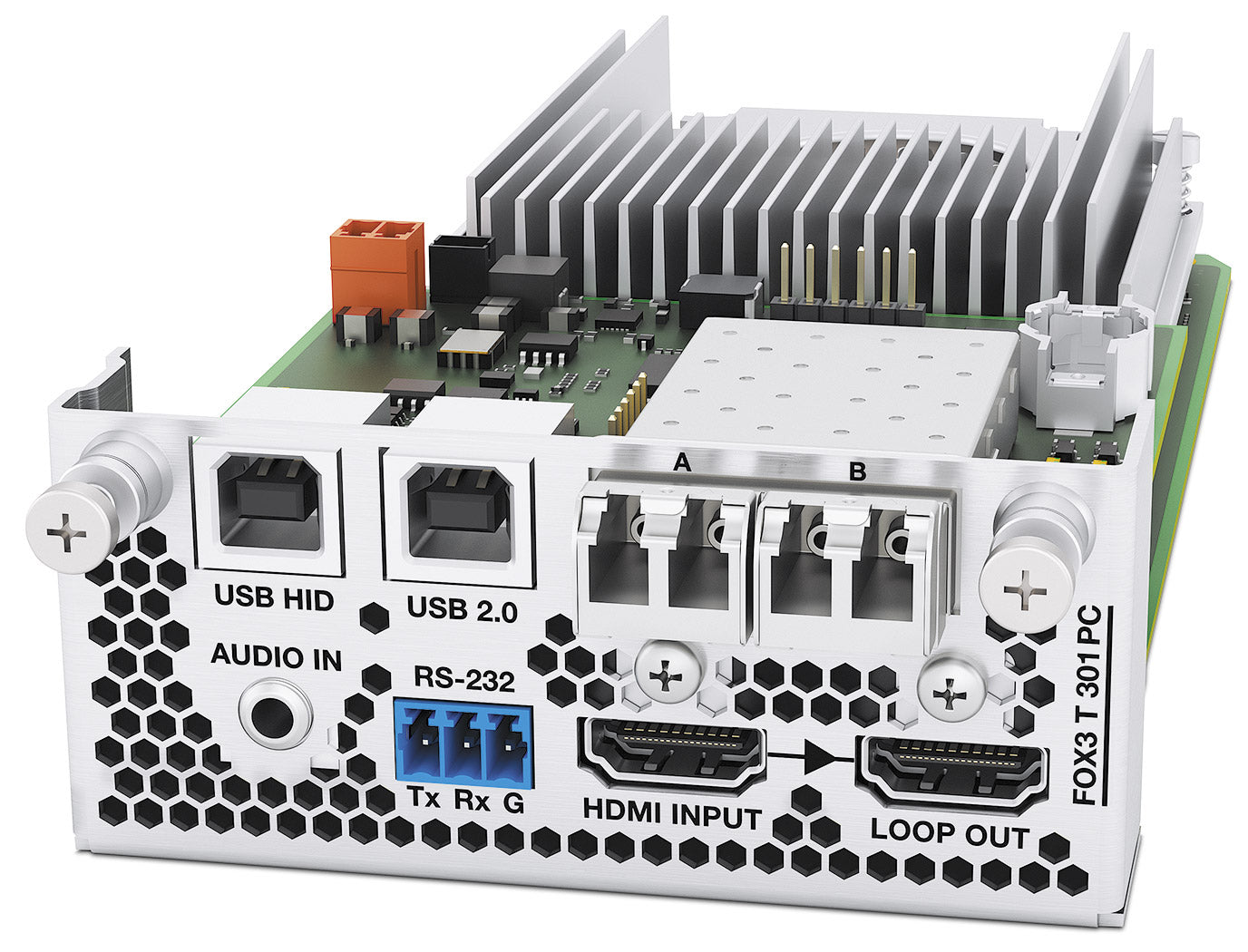

Extron FOX3 T 301 PC SM (part number 70-1190-14) — a single-slot, singlemode fiber HDMI transmitter module for the PowerCage 411 enclosure, configured for bit-for-bit uncompressed 4K/60 transmission over two fibers.

This card-style transmitter drops into any open slot of a PowerCage 411 chassis and draws its power directly from the shared enclosure, so there is no external supply to manage per module. It accepts an HDMI source plus analog or embedded stereo audio and RS-232 pass-through, then converts everything to light for transport across singlemode fiber runs up to 20 km, uncompressed and 4:4:4.

Key Capabilities

Bit-for-bit uncompressed 4096x2160 at 60 Hz, 4:4:4 HDMI 2.0/HDCP 2.3 over two fibers
Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
Dedicated USB HID port plus a second USB 2.0 port for peripheral extension
Analog stereo or HDMI-embedded digital audio input with RS-232 pass-through
Powered entirely by the PowerCage 411 enclosure — no per-module power supply required
Compact card format, 3-year Extron warranty plus 7-year Everlast coverage on the enclosure's power supply

Where It Is Used

Built for campus-scale AV installs where several long-haul fiber links share a single centralized PowerCage 411 chassis and the video must remain bit-for-bit uncompressed.

Specifications at a Glance

Video: HDMI 2.0/HDCP 2.3, up to 4096x2160 at 60 Hz, 4:4:4, 18 Gbps
Fiber: singlemode, 20 km max reach, 1-3 LC connectors, 1310 nm
USB: 2-port (1 HID + 1 USB 2.0)
Module: 1.6"H x 3.5"W x 8.0"D, 0.9 lbs, PowerCage 411 slot-mount

Also referenced as Extron FOX3T301PCSM, FOX3-T-301-PC-SM, part number 70119014.

Specifications

Part Number: 70-1190-14

Manufacturer: Extron

Model: FOX3 T 301 PC SM

Condition: New

Max Resolution: 4096x2160 at 60 Hz, 4:4:4, bit-for-bit uncompressed over 2 fibers

Signal Type: HDMI 2.0, HDCP 2.3

Max Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Max Pixel Clock: 594 MHz

Color Space: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, and 12 bits per color

Frame Rate: 24, 25, 30, 50, 60, or 120 fps

Horizontal Frequency: 24 kHz to 135 kHz

Vertical Frequency: 24 Hz to 120 Hz, depending on resolution

Video Input/Loop Out: 1 HDMI input, 1 HDMI loop out

Power for Active Cables: 1.1 W

Audio Input: 1 digital (HDMI-embedded, 2-CH PCM) or 1 analog stereo, 3.5 mm mini jack, unbalanced

Audio Gain: Unbalanced output -6 dB

Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

S/N Ratio: >90 dB at maximum input (7 dBV), unweighted

THD+N: <0.03% at 20 Hz to 20 kHz, maximum output

CMRR: 65 dB at 20 Hz to 20 kHz

Fiber Connectors: 1-3 LC connectors (1-2 SFPs)

Operating Distance (Singlemode): Up to 20 km (12.4 miles)

Nominal Peak Wavelength: 1310 nm

Fiber Data Rate: 10 Gbps (1 fiber) or 20 Gbps (2 fibers)

Transmission Power (Singlemode): -5.2 dBm, minimum

Receiver Sensitivity (Singlemode): -12.6 dBm, maximum

Optical Loss Budget (Singlemode): 7.4 dB, maximum

USB Host Ports: 2 USB Type B connectors - 1 USB HID, 1 USB 2.0 (FOX3 T 301 PC only)

USB Built-in Hubs: 1 minimum, 1 maximum

USB Standards: USB 2.0, USB 1.1, USB 1.0 compatible

USB Data Rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

RS-232 Pass-Through Port: 1, 3.5 mm captive screw, 3-pole, 9600-115200 baud

Program Control: Extron Product Configuration Software, SIS commands

Power Supply: Internal, powered by the PowerCage 411 enclosure (no module-level supply)

Power Consumption: 18.2 W

Thermal Dissipation: 61.3 BTU/hr

Ambient Temperature/Humidity: Storage -40 to 158 F, Operating 32 to 104 F, 10% to 90% noncondensing

Cooling: Fans, front-to-back, within the PowerCage 411 enclosure

Module Dimensions: 1.6" H x 3.5" W x 8.0" D, fits one PowerCage 411 slot (depth excludes connectors)

Weight: 0.9 lbs (0.4 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, FSA Class 1, ICES, UL, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor (PowerCage 411 enclosure supply)

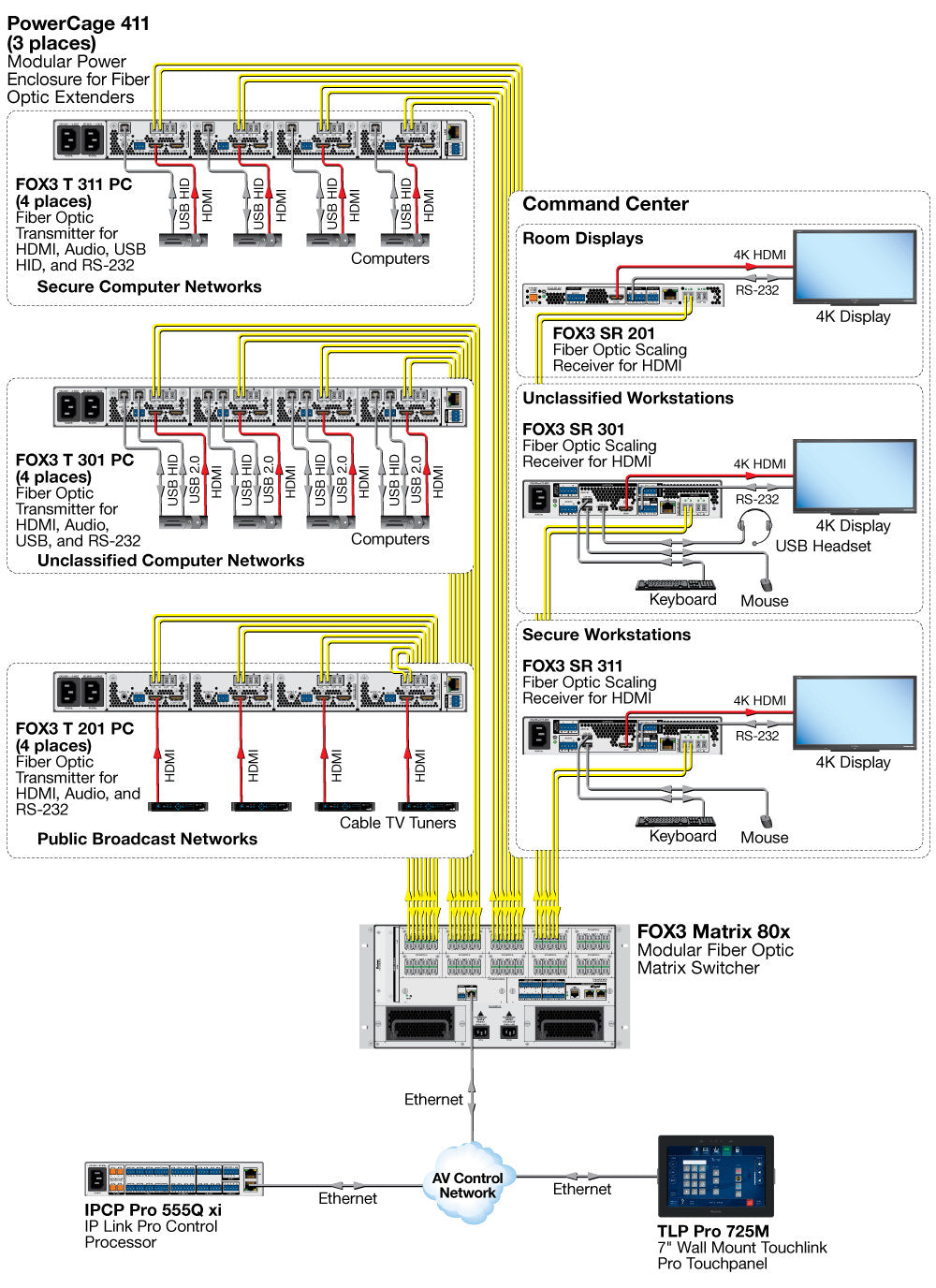

Diagram

Resources

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 Systems (fox3_matrix_series_vA5.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 T 301 PC (fox3_t_301_pc_revA.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | PowerCage 411

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 T 301 PC (FOX3-T-301-PC_BR_A4_FR_RevA.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 T 301 PC (FOX3-T-301-PC_BR_A4_GE_RevA.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 T 301 PC (FOX3-T-301-PC_BR_A4_IT_RevA.pdf)

Brochure | FOX3 T 301 PC SM 70-1190-14 | FOX3 T 301 PC (FOX3-T-301-PC_BR_A4_SP_RevA.pdf)

Manual | FOX3 T 301 PC SM 70-1190-14 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 T 301 PC SM 70-1190-14 | FOX3 T 301/311/201 PC Setup Guide

Manual | FOX3 T 301 PC SM 70-1190-14 | PowerCage 411 Series User Guide

Specifications | FOX3 T 301 PC SM 70-1190-14 | FOX3 T 301/311/201 PC

Panel Drawing | FOX3 T 301 PC SM 70-1190-14 | FOX3 T 301 PC
