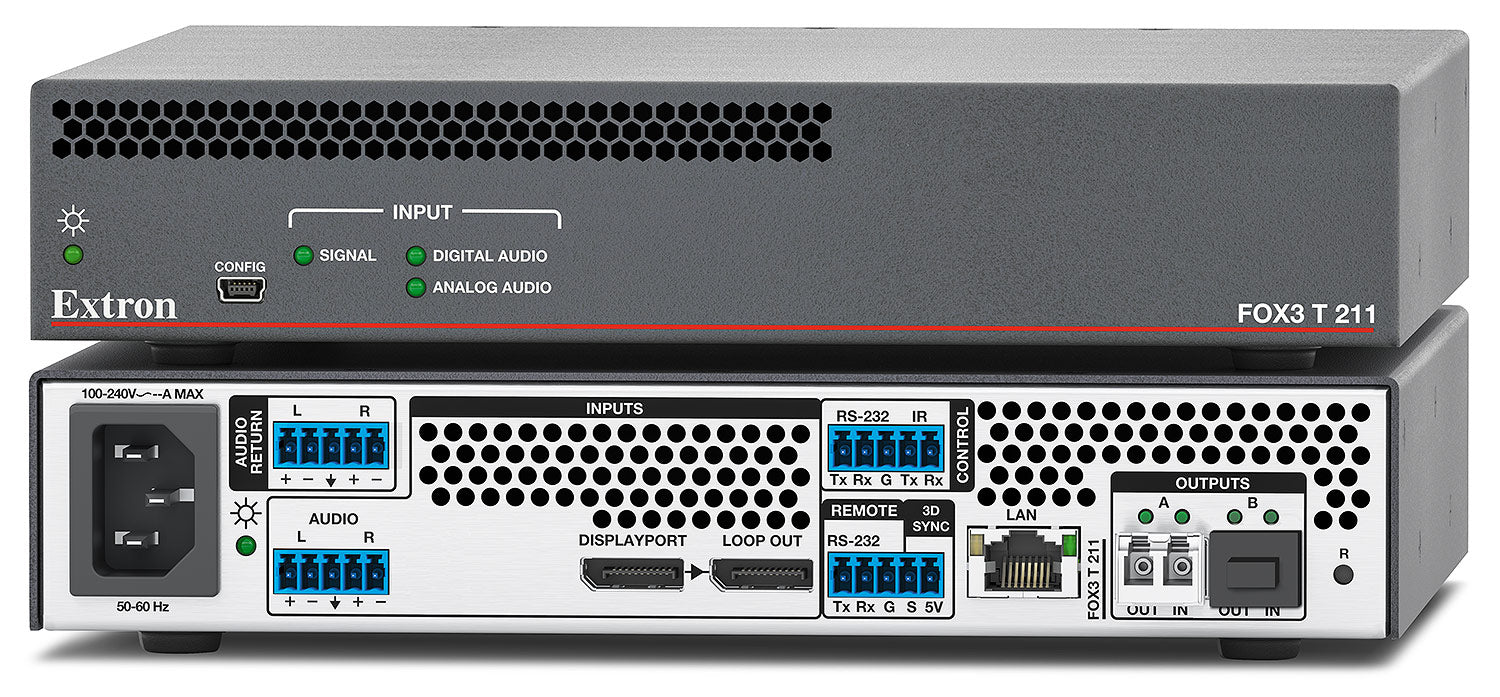

Extron FOX3 T 211 SM (part number 60-2090-12) — a singlemode fiber transmitter for DisplayPort video, stereo audio, and RS-232/IR control over long runs.

This half-rack transmitter accepts a DisplayPort source plus a discrete analog audio input, embeds them, and sends the combined signal out over one singlemode fiber at up to 4096x2160 at 60 Hz, 4:4:4 color, mathematically lossless. Riding on 1310 nm glass, reach extends to 20 km, and a DisplayPort loop-out plus analog audio return path keep the source room self-contained.

Key Capabilities

Lossless 4096x2160 at 60 Hz, 4:4:4 DisplayPort transmission over one fiber
Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
Discrete stereo audio input with adjustable gain, -18 dB to +24 dB
Analog audio return path plus RS-232 and IR insertion
DisplayPort loop-out for local monitoring at the source
Front-panel USB configuration port and rear RJ-45 for Ethernet monitoring

Where It Is Used

Fits campus-scale DisplayPort extension — university labs, government sites, and command centers — where a source needs to reach a receiver far beyond what copper or multimode fiber can cover.

Specifications at a Glance

Video: DisplayPort 1.2a, up to 4096x2160 at 60 Hz, 4:4:4
Fiber: singlemode, 20 km max reach, 1-2 LC connectors, 1310 nm
Enclosure: half-rack metal, 1.7"H x 8.75"W x 8.5"D, 2.4 lbs
Power: internal 100-240 VAC supply

Also referenced as Extron FOX3T211SM, FOX3-T-211-SM, part number 60209012.

Specifications

Part Number: 60-2090-12

Manufacturer: Extron

Model: FOX3 T 211 SM

Condition: New

Video Input: 1 DisplayPort, female

Video Loop Out: 1 DisplayPort, female

Max. DisplayPort Link Rate: 21.6 Gbps (5.4 Gbps per lane)

Max. Video Data Rate: 18.0 Gbps

Max. Pixel Clock: 594 MHz

Max. Resolution: 4096x2160 at 60 Hz, 4:4:4 chroma (lossless over 1 fiber)

Standards: DisplayPort 1.2a

Audio Input: 1 digital (de-embedded from DisplayPort) or 1 analog stereo, balanced/unbalanced

Audio Input Connectors: 1 DisplayPort (shared with video), 1 3.5 mm captive screw, 5-pole

Audio Input Impedance: ≥10k ohms unbalanced, ≥20k ohms balanced

Audio Input Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio Input Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Audio Gain Range: Adjustable, -18 dB to +24 dB, 1 dB steps

Audio Return Output: 1 analog stereo, balanced/unbalanced, 3.5 mm captive screw, 5-pole

Audio Return Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Return Output Maximum Level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced

Audio Delay: Compressed = 2-3 frames; 0.5 frame in non-scaling bypass mode

Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

S/N Ratio: >90 dB at maximum output, unweighted

THD + Noise: <0.1% at 20 Hz to 20 kHz, nominal level

Fiber Connectors: 1 or 2 LC (1 SFP)

Operating Distance (Singlemode): 20 km (12.4 miles)

Nominal Peak Wavelength: 1310 nm (singlemode)

Fiber Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power (Singlemode): -5.2 dBm, typical

Receiver Sensitivity (Singlemode): -12.6 dBm, typical

Optical Loss Budget (Singlemode): +7.4 dB, maximum

USB Configuration Port: 1 front-panel mini USB B, Ethernet over USB

Serial Host Control: 1 RS-232, 3.5 mm captive screw, 5-pole, 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Pass-Through: 1 RS-232, 3.5 mm captive screw, 5-pole, 9600 to 115,200 baud

IR Control Port: 3.5 mm captive screw, 5-pole (shared with RS-232 pass-through), 30-56 kHz modulated

Ethernet Control: 1 RJ-45, 10/100/1000Base-T, default IP 192.168.254.254

Program Control: Extron Product Configuration Software, Extron SIS

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Ambient Temperature/Humidity: Storage -40 to +158°F (-40 to +70°C), 10-90% noncondensing; Operating +32 to +122°F (0 to +50°C), 10-90% noncondensing

Cooling: Fan, air flows front to rear (vented)

Enclosure: Metal, 1.7" H x 8.75" W x 8.5" D, half rack wide (depth excludes connectors)

Mounting: Rack mount with optional shelf; furniture mount with optional under-desk kit

Product Weight: 2.4 lbs (1.1 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
