Extron FOX3 T 201 PC SM 70-1224-14

Extron FOX3 T 201 PC SM Fiber Optic HDMI Transmitter 70-1224-14

Extron FOX3 T 201 PC SM Fiber Optic HDMI Transmitter 70-1224-14

Manufacturer: Extron

Type: Fiber Optics

Extron FOX3 T 201 PC SM PowerCage Fiber Transmitter

  • • Uncompressed 4K/60 HDMI transmission over two singlemode fibers
  • • Hot-swappable single-slot module, up to 4 per PowerCage 411
  • • Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
  • • Discrete analog audio input alongside embedded HDMI audio
  • • RS-232 pass-through over fiber for downstream device control
  • • Draws just 17.8 W from the shared PowerCage 411 supply

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOX3T201PCSM-70122414

Details

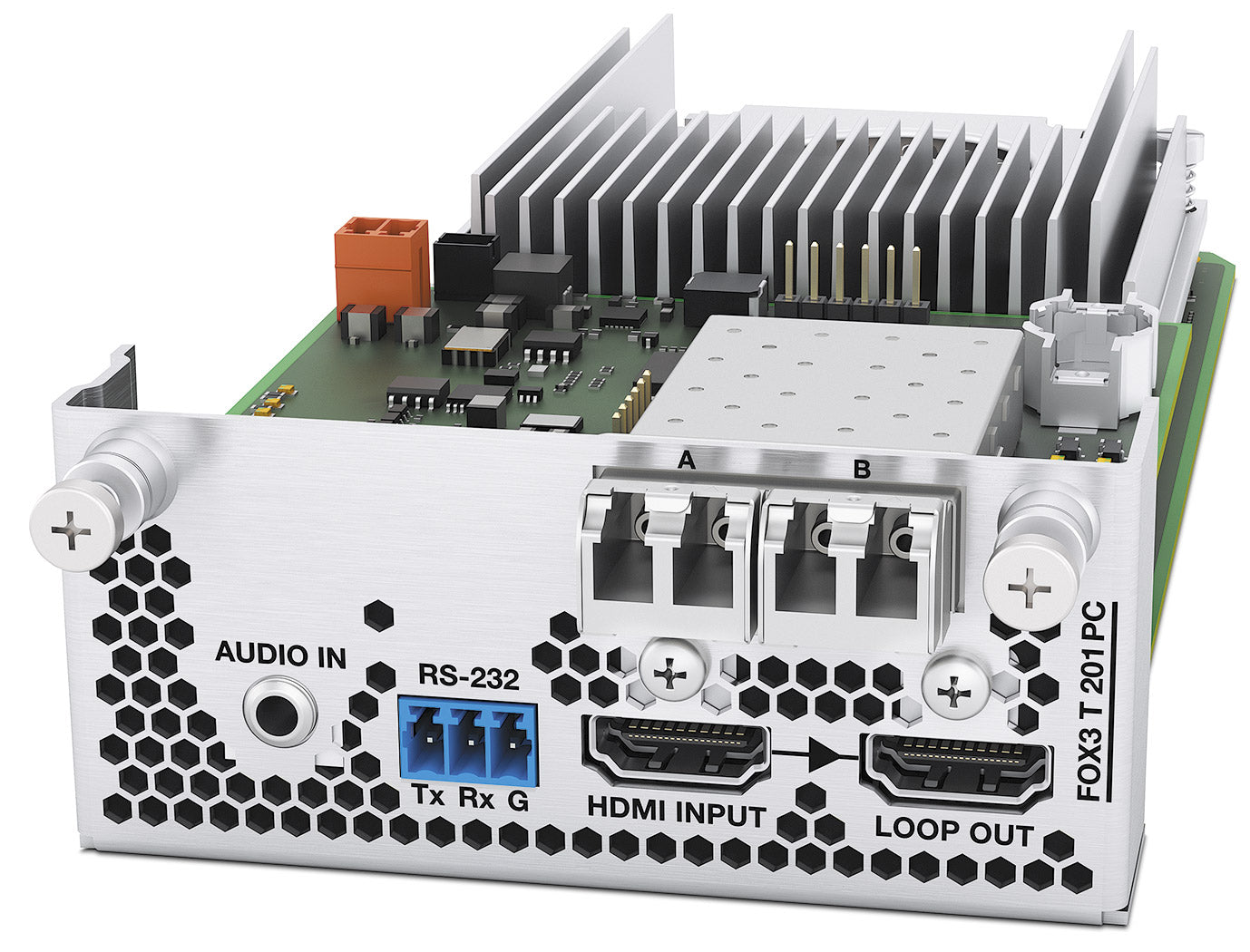

Extron FOX3 T 201 PC SM (part number 70-1224-14) — a single-slot, hot-swappable HDMI fiber transmitter module for the PowerCage 411 enclosure, configured for uncompressed transmission over two fibers across long runs.

This module slides into a PowerCage 411 chassis alongside up to three others, sharing redundant power, forced-air cooling, and Ethernet control. It accepts an HDMI input plus a discrete analog audio input, embeds them, and sends the combined signal out over two singlemode fibers at up to 4096x2160 at 60 Hz, 4:4:4 color, bit-for-bit uncompressed, with reach to 20 km at 1310 nm.

Key Capabilities

  • Uncompressed 4096x2160 at 60 Hz, 4:4:4 HDMI/DVI transmission over two fibers
  • Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
  • Hot-swappable single-slot module, up to 4 per PowerCage 411
  • Discrete analog audio input alongside embedded HDMI audio
  • RS-232 pass-through over fiber for downstream device control
  • Draws power, cooling, and Ethernet control from the shared enclosure

Where It Is Used

Fits campus-scale racks needing zero-compression fidelity across long singlemode runs — large venues, medical campuses, and government facilities where several transmitters share one PowerCage 411.

Specifications at a Glance

  • Video: HDMI 2.0/HDCP 2.3 and DVI 1.0/HDCP 1.4, up to 4096x2160 at 60 Hz, 4:4:4
  • Fiber: singlemode, 20 km max reach, 1-3 LC connectors, 1310 nm
  • Module: 1.6"H x 3.5"W x 8.0"D single PowerCage 411 slot, 0.9 lb
  • Power: 17.8 W, supplied by the PowerCage 411 enclosure

Also referenced as Extron FOX3T201PCSM, FOX3-T-201-PC-SM, part number 70122414.
