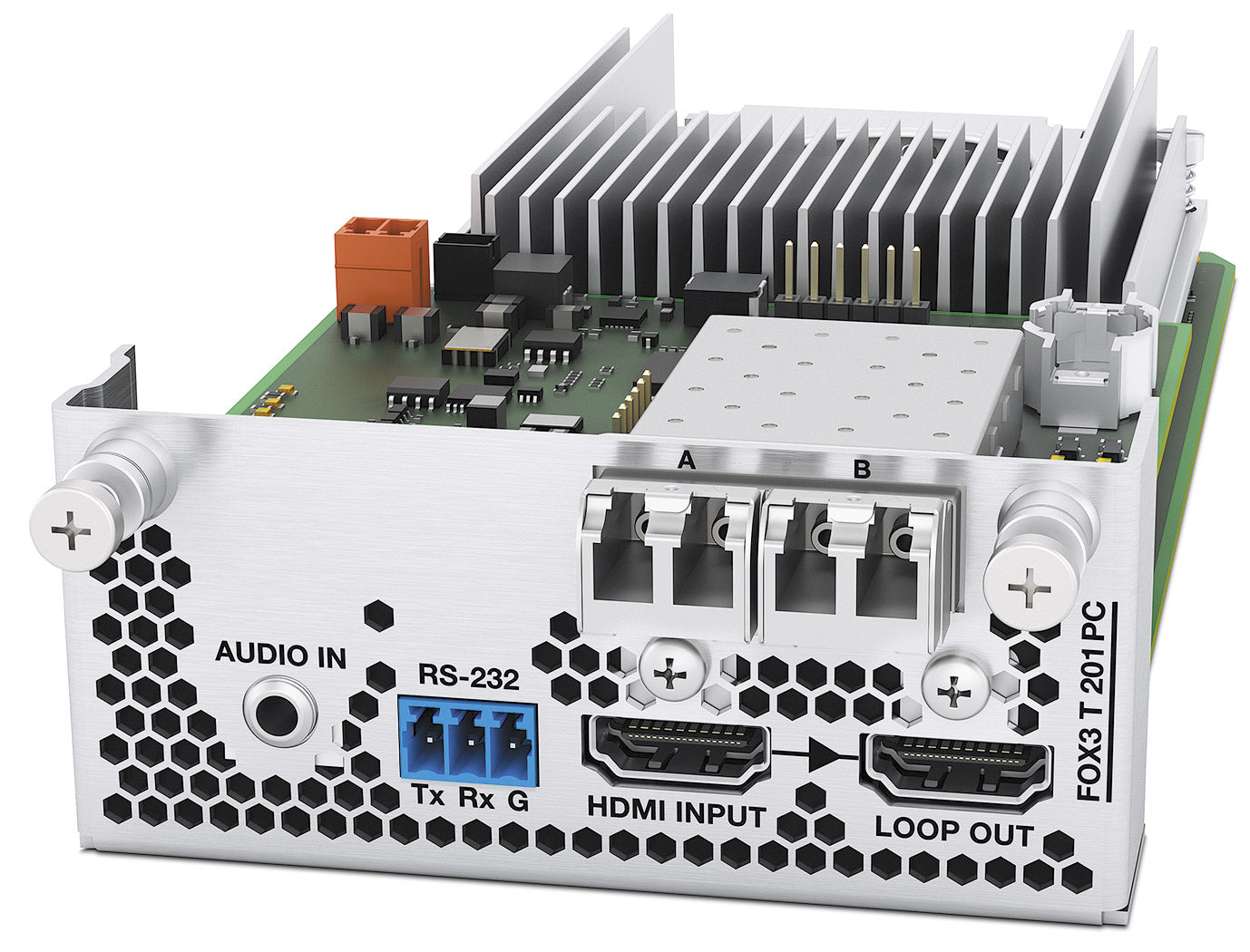

Extron FOX3 T 201 PC MM 70-1224-13

Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter 70-1224-13

Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter 70-1224-13

Manufacturer: Extron

Type: Fiber Optics

Extron FOX3 T 201 PC MM PowerCage Fiber Transmitter

  • • Uncompressed 4K/60 HDMI transmission over two multimode fibers
  • • Hot-swappable single-slot module, up to 4 per PowerCage 411
  • • Multimode fiber reach to 500 m (1640 ft) on OM4 cable
  • • Discrete analog audio input alongside embedded HDMI audio
  • • RS-232 pass-through over fiber for downstream device control
  • • Draws just 17.8 W from the shared PowerCage 411 supply

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOX3T201PCMM-70122413

Details

Extron FOX3 T 201 PC MM (part number 70-1224-13) — a single-slot, hot-swappable HDMI fiber transmitter module for the PowerCage 411 enclosure, configured for uncompressed transmission over two fibers.

This module slides into a PowerCage 411 chassis alongside up to three others, sharing redundant power, forced-air cooling, and Ethernet control. It accepts an HDMI input plus a discrete analog audio input, embeds them, and sends the combined signal out over two multimode fibers at up to 4096x2160 at 60 Hz, 4:4:4 color, bit-for-bit uncompressed. An HDMI loop-out and hot-swap capability keep field maintenance simple.

Key Capabilities

  • Uncompressed 4096x2160 at 60 Hz, 4:4:4 HDMI/DVI transmission over two fibers
  • Multimode reach to 500 m (1640 ft) on OM4 laser-optimized cable
  • Hot-swappable single-slot module, up to 4 per PowerCage 411
  • Discrete analog audio input alongside embedded HDMI audio
  • RS-232 pass-through over fiber for downstream device control
  • Draws power, cooling, and Ethernet control from the shared enclosure

Where It Is Used

Fits multi-source racks needing zero-compression fidelity — broadcast racks, command centers, and reference-monitoring walls where the second fiber strand buys bit-for-bit accuracy.

Specifications at a Glance

  • Video: HDMI 2.0/HDCP 2.3 and DVI 1.0/HDCP 1.4, up to 4096x2160 at 60 Hz, 4:4:4
  • Fiber: multimode, 500 m max reach, 1-3 LC connectors, 850 nm
  • Module: 1.6"H x 3.5"W x 8.0"D single PowerCage 411 slot, 0.9 lb
  • Power: 17.8 W, supplied by the PowerCage 411 enclosure

Also referenced as Extron FOX3T201PCMM, FOX3-T-201-PC-MM, part number 70122413.
