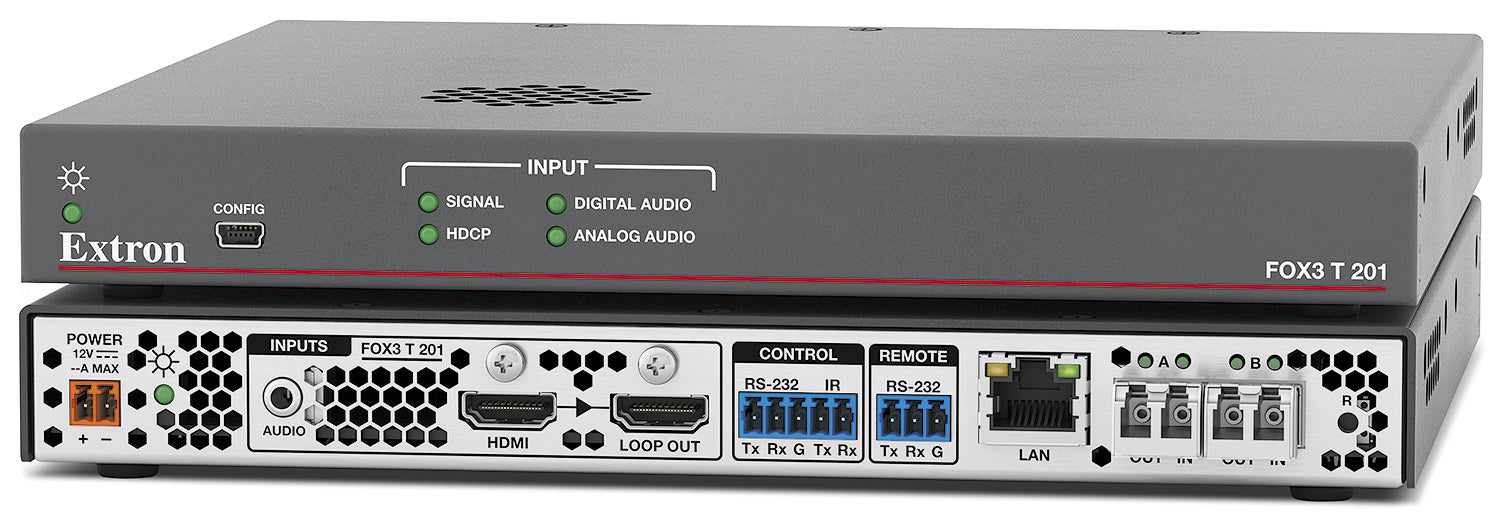

Extron FOX3 T 201 MM (part number 60-1600-13) — a multimode fiber transmitter for HDMI video, stereo audio, and RS-232/IR control, configured for uncompressed transmission over two fibers.

Built as the source-side half of a FOX3 T/SR 201 point-to-point link, this half-rack transmitter accepts an HDMI input plus a discrete stereo audio input, embeds them together, and sends the combined signal out over two multimode fibers at up to 4096x2160 at 60 Hz, 4:4:4 color, bit-for-bit uncompressed. EDID and HDCP handling are managed automatically so the source powers up cleanly every time, and an HDMI loop-out lets the same signal drive a local monitor for setup or confidence viewing.

Key Capabilities

Uncompressed 4096x2160 at 60 Hz, 4:4:4 HDMI 2.0/HDCP 2.3 transmission over two fibers
Multimode reach to 500 m (1640 ft) on OM4 laser-optimized cable
Discrete stereo audio input with adjustable gain, -18 dB to +24 dB
RS-232 and IR insertion plus HDMI loop-out for local monitoring
Front-panel USB configuration port and rear RJ-45 for Ethernet monitoring
Compact half-rack enclosure runs on an external 24 W supply

Where It Is Used

Suits reference monitoring, CAD review, and medical imaging workstations where a source feeds a FOX3 SR 201 receiver and no compression of any kind is acceptable, even at the cost of a second fiber strand.

Specifications at a Glance

Video: HDMI 2.0/HDCP 2.3, up to 4096x2160 at 60 Hz, 4:4:4, 18 Gbps
Fiber: multimode, 500 m max reach, 1-3 LC connectors, 850 nm
Enclosure: half-rack metal, 1.0"H x 8.75"W x 8.0"D, 1.85 lbs
Power: external 24 W supply, 20.0 W device draw

Also referenced as Extron FOX3T201MM, FOX3-T-201-MM, part number 60160013.

Specifications

Part Number: 60-1600-13

Manufacturer: Extron

Model: FOX3 T 201 MM

Condition: New

Video Input: 1 HDMI, female Type A

Video Loop Out: 1 HDMI, female Type A

Max. Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Max. Pixel Clock: 594 MHz

Max. Resolution: 4096x2160 at 60 Hz, 4:4:4 chroma, up to 12-bit color (uncompressed over 2 fibers)

Standards: HDMI 2.0, HDCP 2.3

Power for Active Cables: 1.0 W max. at the HDMI port

Audio Input: 1 digital (2-CH LPCM de-embedded from HDMI) or 1 unbalanced stereo / 2 unbalanced mono

Audio Input Connectors: 1 HDMI (shared with video), 1 3.5 mm mini stereo jack

Audio Input Impedance: ≥10k ohms balanced, DC coupled

Audio Input Nominal Level: -10 dBV (316 mVrms)

Audio Input Maximum Level: +19 dBV unbalanced at 1% THD+N

Audio Gain Range: Adjustable, -18 dB to +24 dB, 1 dB steps

Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

S/N Ratio: >90 dB at maximum output, unweighted

THD + Noise: <0.1% at 20 Hz to 20 kHz, nominal level

Fiber Connectors: 1, 2, or 3 LC (1 or 2 SFP modules)

Operating Distance (Multimode): 500 m (1640 feet) with 50 µm OM4 laser-optimized multimode cable

Nominal Peak Wavelength: 850 nm (multimode)

Fiber Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power (Multimode): -2.8 dBm, minimum

Receiver Sensitivity (Multimode): -11.1 dBm, maximum

Optical Loss Budget (Multimode): +8.3 dB, maximum

USB Configuration Port: 1 front-panel mini USB B, Ethernet over USB

Serial Host Control: 1 RS-232, 3.5 mm captive screw, 3-pole, 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Pass-Through: 1 RS-232, 3.5 mm captive screw, 5-pole, 9600 to 115,200 baud

IR Control Port: 3.5 mm captive screw, 5-pole (shared with RS-232 pass-through), 30-56 kHz modulated

Ethernet Control: 1 RJ-45, 10/100/1000Base-T, default IP 192.168.254.254

Program Control: Extron Product Configuration Software, Extron SIS

Power Supply: External, input 100-240 VAC 50-60 Hz, output 12 VDC 2.0 A (24 W)

Power Consumption: 20.0 W device, 22.9 W device and power supply

Thermal Dissipation: 67.1 BTU/hr device, 77.3 BTU/hr device and power supply

Ambient Temperature/Humidity: Storage -40 to +158°F (-40 to +70°C), 10-90% noncondensing; Operating +32 to +122°F (0 to +50°C), 10-90% noncondensing

Cooling: Fan, air flows top to rear (vented)

Enclosure: Metal, 1.0" H x 8.75" W x 8.0" D, half rack wide (depth excludes connectors)

Mounting: Rack mount with optional shelf; furniture mount with optional under-desk kit

Product Weight: 1.85 lbs (0.84 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
