Details

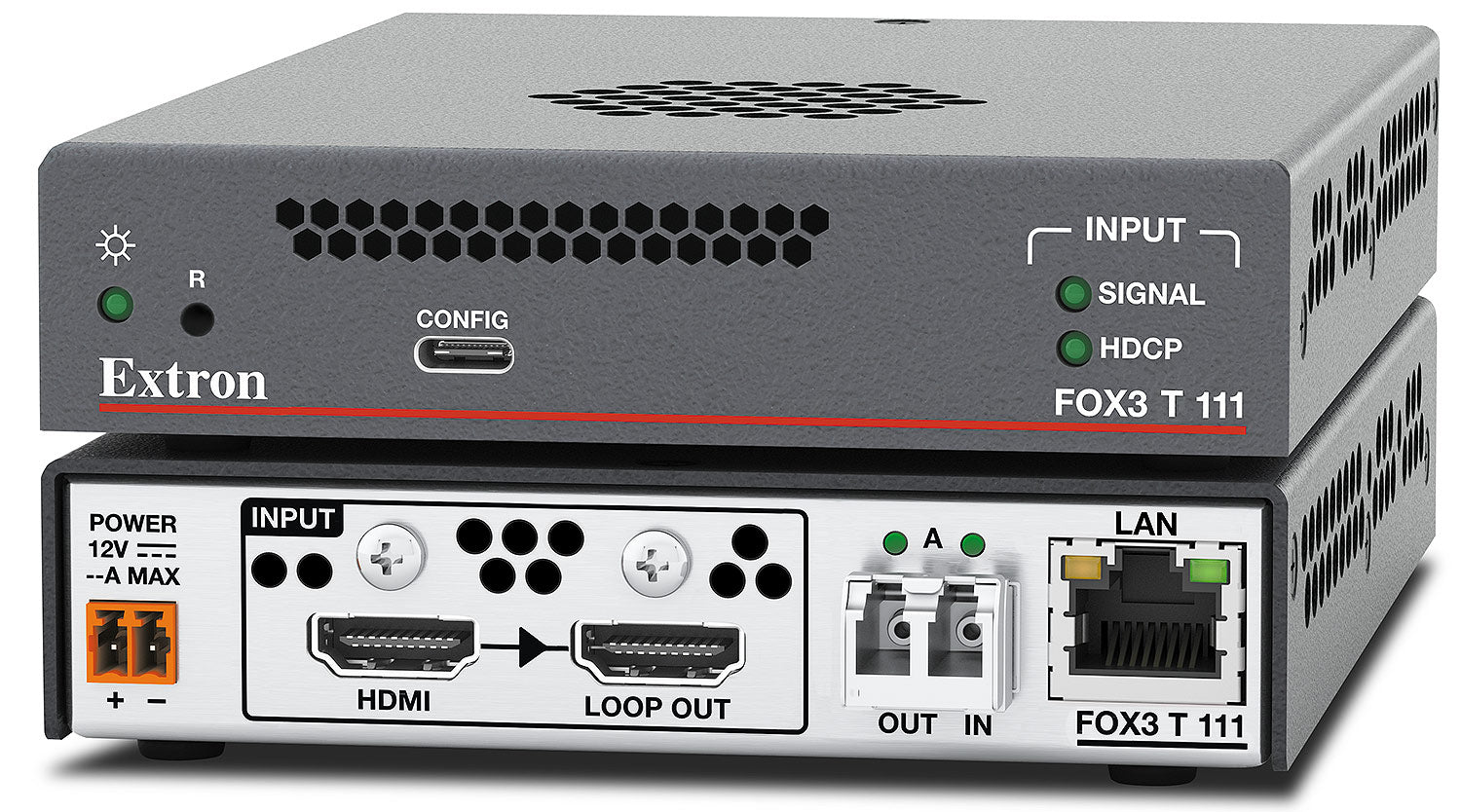

Extron FOX3 T 111 SM (part number 60-1957-32) — a compact singlemode fiber transmitter that sends HDMI video over long glass runs instead of copper.

Built as the source-side half of a FOX3 T/R 111 point-to-point link, this quarter-rack transmitter takes a single HDMI input, embeds its audio, and pushes the signal out over one singlemode fiber at up to 4096x2160 at 60 Hz with 4:4:4 color, mathematically lossless. Riding on 1310 nm singlemode glass, reach extends to 20 km, and a local HDMI loop-out still lets the source feed a nearby confidence monitor at the same time.

Key Capabilities

Lossless 4096x2160 at 60 Hz, 4:4:4 HDMI 2.0/HDCP 2.3 transmission over one fiber
Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
HDMI loop-out for a local confidence monitor
Front-panel USB-C configuration port and rear RJ-45 for Ethernet monitoring
Quarter-rack metal enclosure runs on an external 24 W supply

Where It Is Used

Pairs with a FOX3 R 111 receiver for long-distance HDMI extension across a campus or facility — auditoriums, stadiums, and government sites where a copper run simply won't reach.

Specifications at a Glance

Video: HDMI 2.0/HDCP 2.3, up to 4096x2160 at 60 Hz, 4:4:4, 18 Gbps
Fiber: singlemode, 20 km max reach, 2 LC connectors, 1310 nm
Enclosure: quarter-rack metal, 1.0"H x 4.3"W x 6.0"D, 1.0 lb
Power: external 24 W supply, 14.1 W device draw

Also referenced as Extron FOX3T111SM, FOX3-T-111-SM, part number 60195732.

Specifications

Part Number: 60-1957-32

Manufacturer: Extron

Model: FOX3 T 111 SM

Condition: New

Video Input: 1 single-link HDMI, female Type A

Video Loop Out: 1 single-link HDMI, female Type A

Max. Video Data Rate: 18.0 Gbps

Max. Pixel Clock: 594 MHz

Max. Resolution: 4096x2160 at 60 Hz, 4:4:4 chroma (lossless over 1 fiber)

Standards: HDMI 2.0, HDCP 2.3

Power for Active Cables: 1.25 W max. at the HDMI port

Audio Input: 1 HDMI, embedded, female HDMI Type A

Fiber Connectors: 2 LC (1 SFP)

Operating Distance (Singlemode): 20 km (12.4 miles)

Nominal Peak Wavelength: 1310 nm (singlemode)

Maximum Channel Data Rate: 10.0 Gbps

Transmission Power (Singlemode): -5.2 dBm, minimum

Receiver Sensitivity (Singlemode): -12.6 dBm, maximum

Optical Loss Budget (Singlemode): +7.4 dB, maximum

USB Configuration Port: 1 front-panel USB-C, female, Ethernet over USB

Ethernet Control: 1 RJ-45, 10/100/1000Base-T, default IP 192.168.254.254

Program Control: Extron Product Configuration Software, Extron SIS

Power Supply: External, input 100-240 VAC 50-60 Hz, output 12 VDC 2.0 A (24 W)

Power Consumption: 14.1 W device, 15.8 W device and power supply

Thermal Dissipation: 44.0 BTU/hr device, 49.6 BTU/hr device and power supply

Ambient Temperature/Humidity: Storage -40 to +158°F (-40 to +70°C), 10-90% noncondensing; Operating +32 to +104°F (0 to +40°C), 10-90% noncondensing

Cooling: Fan, blows top to rear (vented)

Enclosure: Metal, 1.0" H x 4.3" W x 6.0" D, quarter rack wide (depth excludes connectors)

Mounting: Rack mount with optional 1U shelf; furniture mount with optional under-desk kit

Product Weight: 1.0 lbs (0.5 kg)

Regulatory Compliance: CE, C-UL, C-tick, FCC Class A, ICES, KCC, RoHS, UL, VCCI, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

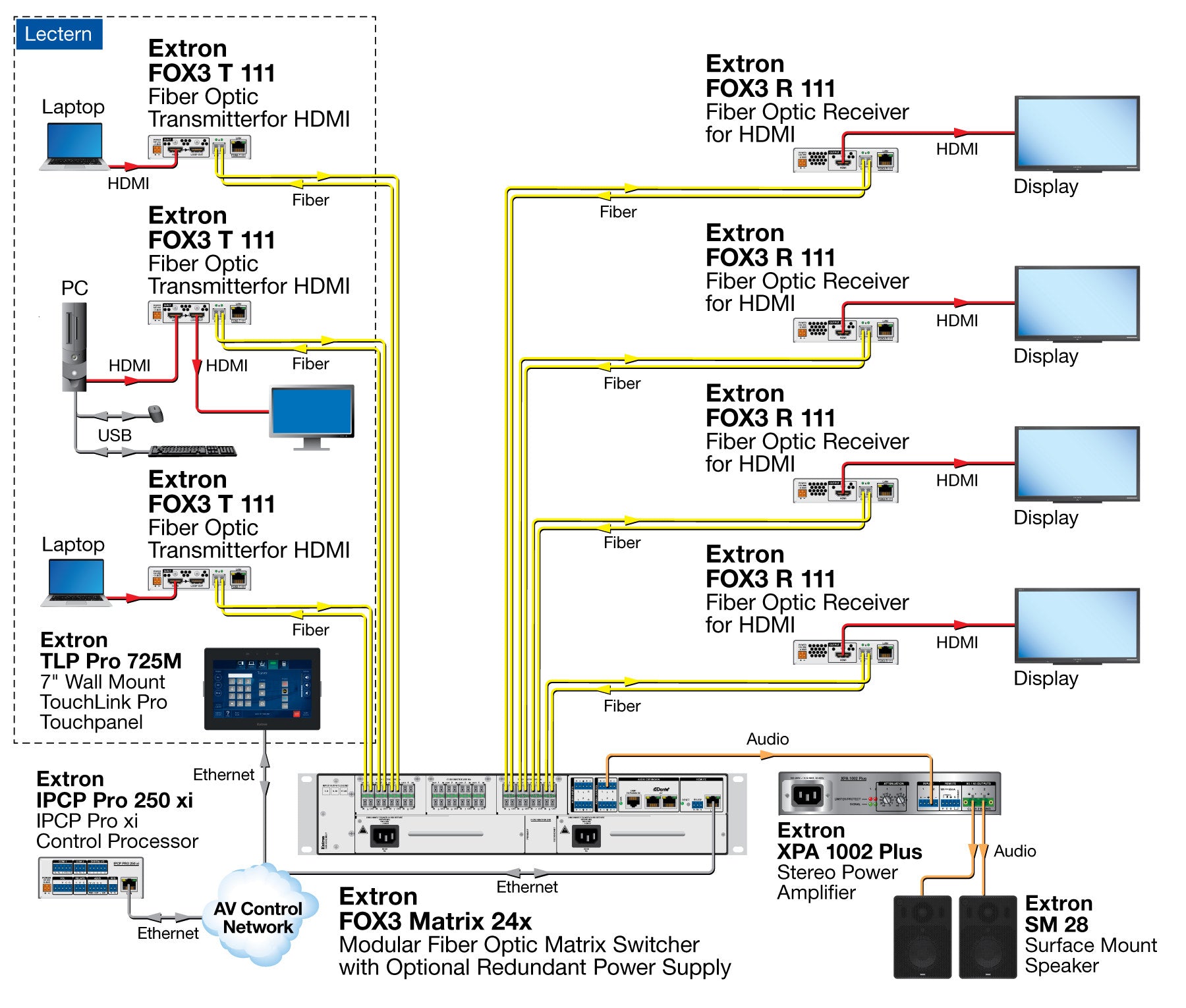

Diagram

Resources

Brochure | FOX3 T 111 SM 60-1957-32 | FOX3 T 111 & FOX3 R 111

Manual | FOX3 T 111 SM 60-1957-32 | FOX3 T 111 SUG

Manual | FOX3 T 111 SM 60-1957-32 | FOX3 T 111 User Guide

Specifications | FOX3 T 111 SM 60-1957-32 | FOX3 T 111

Panel Drawing | FOX3 T 111 SM 60-1957-32 | FOX3 T 111
