Extron FOX3 SR 331 SM Fiber Optic Scaling Receiver
- • Uncompressed 4K/60 DisplayPort output at 4:4:4 chroma over two fibers
- • Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
- • 2-port USB HID extension for keyboard, mouse, and touch control
- • RS-232 and IR insertion keep sources and displays controllable at distance
- • Analog stereo audio de-embed with a local return channel
- • Half-rack 1U enclosure draws just 26.1 W
- • Ethernet monitoring via RJ-45 for remote system management
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

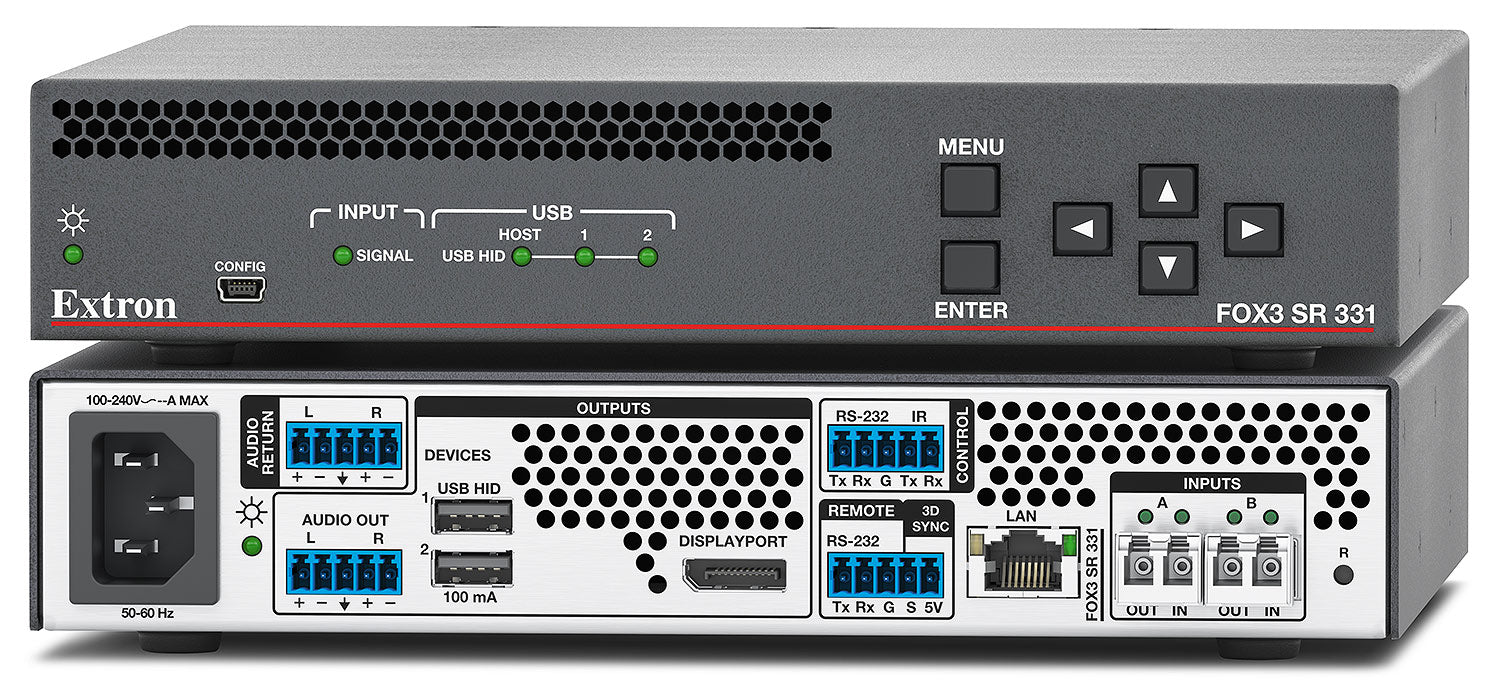

Extron FOX3 SR 331 SM (part number 60-1778-24) — a singlemode fiber receiver configured for uncompressed 4K/60 DisplayPort delivery to a KVM workstation over long runs.
This receiver recovers video, USB HID, audio, and control data sent by a FOX3 T 331 transmitter over singlemode glass at 1310 nm and reconstructs it as scaled DisplayPort output at up to 4096x2160 at 60 Hz, 4:4:4 color. Running uncompressed over two fibers, it reaches 20 km while keeping every pixel bit-for-bit intact, and its USB side stays limited to HID peripherals for tighter security than a general-purpose USB extender.
Key Capabilities
- Uncompressed 4096x2160 at 60 Hz, 4:4:4 DisplayPort output over two singlemode fibers
- Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
- 2-port USB HID extension for keyboard, mouse, and touch control
- RS-232 and IR insertion for remote source and display control
- Analog stereo audio de-embed with a local audio return channel
- Front-panel USB configuration port and rear RJ-45 for Ethernet monitoring
Where It Is Used
Fits secure, campus-scale KVM extension — government facilities, command centers, and control rooms — where the workstation sits buildings from its source and only HID peripherals should be reachable over the link.
Specifications at a Glance
- Video: DisplayPort 1.2a, up to 4096x2160 at 60 Hz, 4:4:4, 21.6 Gbps
- Fiber: singlemode, 20 km max reach, 2 or 4 LC connectors, 1310 nm
- USB: 2-port USB HID only, 100 mA available
- Enclosure: half-rack metal, 1.7"H x 8.75"W x 8.5"D, 2.4 lbs
- Power: internal 100-240 VAC supply, 26.1 W consumption
Also referenced as Extron FOX3SR331SM, FOX3-SR-331-SM, part number 60177824.
