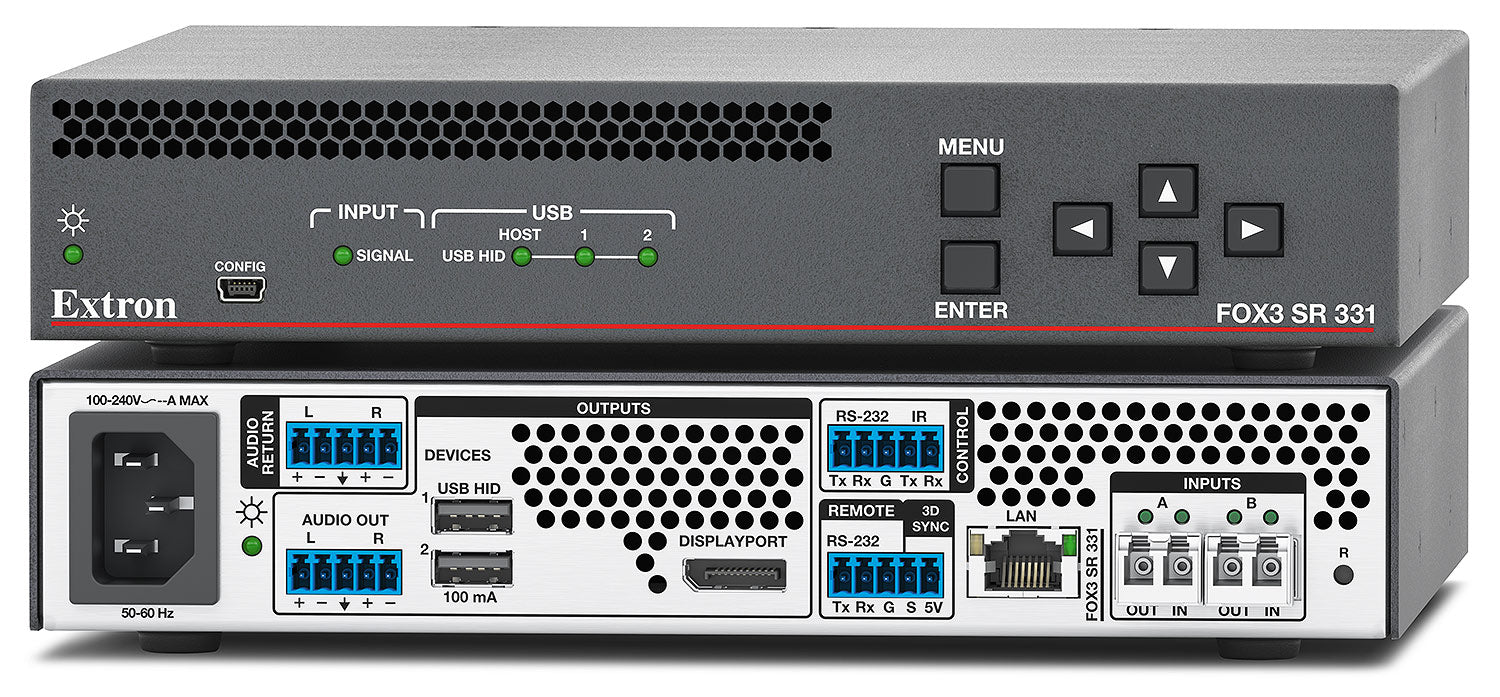

Extron FOX3 SR 331 MM (part number 60-1778-23) — a multimode fiber receiver configured for uncompressed 4K/60 DisplayPort delivery to a KVM workstation.

This receiver recovers video, USB HID, audio, and control data sent by a FOX3 T 331 transmitter over multimode glass and reconstructs it as scaled DisplayPort output at up to 4096x2160 at 60 Hz, 4:4:4 color. Running uncompressed across two fibers, it trades a second fiber strand for maximum image fidelity, while its USB side stays limited to HID peripherals for tighter KVM security than a general-purpose USB extender.

Key Capabilities

Uncompressed 4096x2160 at 60 Hz, 4:4:4 DisplayPort output over two multimode fibers
Multimode reach to 500 m (1640 ft) on OM4 laser-optimized cable
2-port USB HID extension for keyboard, mouse, and touch control
RS-232 and IR insertion for remote source and display control
Analog stereo audio de-embed with a local audio return channel
Front-panel USB configuration port and rear RJ-45 for Ethernet monitoring

Where It Is Used

Fits KVM-secured DisplayPort extension in control rooms, trading desks, and government facilities where only HID peripherals should reach the source and every pixel must arrive untouched.

Specifications at a Glance

Video: DisplayPort 1.2a, up to 4096x2160 at 60 Hz, 4:4:4, 21.6 Gbps
Fiber: multimode, 500 m max reach, 2 or 4 LC connectors, 850 nm
USB: 2-port USB HID only, 100 mA available
Enclosure: half-rack metal, 1.7"H x 8.75"W x 8.5"D, 2.4 lbs
Power: internal 100-240 VAC supply, 26.1 W consumption

Also referenced as Extron FOX3SR331MM, FOX3-SR-331-MM, part number 60177823.

Specifications

Part Number: 60-1778-23

Manufacturer: Extron

Model: FOX3 SR 331 MM

Condition: New

Video Output Signal: 1 single-link DisplayPort, female DisplayPort Type A

Max. Video Data Rate: 21.6 Gbps (5.4 Gbps per lane)

Max. Pixel Clock: 594 MHz

Max. Resolution: 4096x2160 at 60 Hz, 4:4:4 chroma, up to 10-bit color (uncompressed over 2 fibers)

Scaled Output Resolutions: 480p through 4096x2160, plus 1 custom mode and bypass

Standards: DisplayPort 1.2a

Audio Output: 1 digital (2-CH PCM de-embedded from DisplayPort) or 1 analog stereo, balanced/unbalanced

Audio Output Connectors: 1 DisplayPort (shared with video), 1 3.5 mm captive screw, 5-pole

Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

S/N Ratio: >90 dB at maximum output, unweighted

THD + Noise: <0.1% at 20 Hz to 20 kHz, nominal level

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Return Input: 1 analog stereo, balanced/unbalanced, 3.5 mm captive screw, 5-pole

Audio Return Input Impedance: ≥10k ohms unbalanced, ≥20k ohms balanced

Audio Return Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio Return Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Fiber Connectors: 2 or 4 LC (1 or 2 SFP modules)

Operating Distance (Multimode): 500 m (1640 feet) with 50 µm OM4 laser-optimized multimode cable

Nominal Peak Wavelength: 850 nm (multimode)

Fiber Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power (Multimode): -3.3 dBm, typical

Receiver Sensitivity (Multimode): -13.0 dBm, typical

Optical Loss Budget (Multimode): +9.7 dB, maximum

USB Configuration Port: 1 front-panel mini USB B, Ethernet over USB, USB 2.0 low speed

USB Host Ports: 2-port USB HID, 2 USB Type A female connectors, 0 built-in hubs

Available USB Power: USB HID ports 100 mA

Serial Host Control: 1 RS-232, 3.5 mm captive screw, 5-pole, 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Pass-Through: 1 RS-232, 3.5 mm captive screw, 5-pole, 9600 to 115,200 baud

IR Control Port: 3.5 mm captive screw, 5-pole (shared with RS-232 pass-through), 30-56 kHz modulated

Ethernet Control: 1 RJ-45, 10/100/1000Base-T, default IP 192.168.254.254

Program Control: Extron Product Configuration Software, Extron SIS

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption: 26.1 watts

Thermal Dissipation: 73.3 BTU/hr

Ambient Temperature/Humidity: Storage -40 to +158°F (-40 to +70°C), 10-90% noncondensing; Operating +32 to +122°F (0 to +50°C), 10-90% noncondensing

Cooling: Convection

Enclosure: Metal, 1.7" H x 8.75" W x 8.5" D, half rack wide (depth excludes connectors)

Mounting: Rack mount with optional shelf; furniture mount with optional under-desk kit

Product Weight: 2.4 lbs (1.1 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

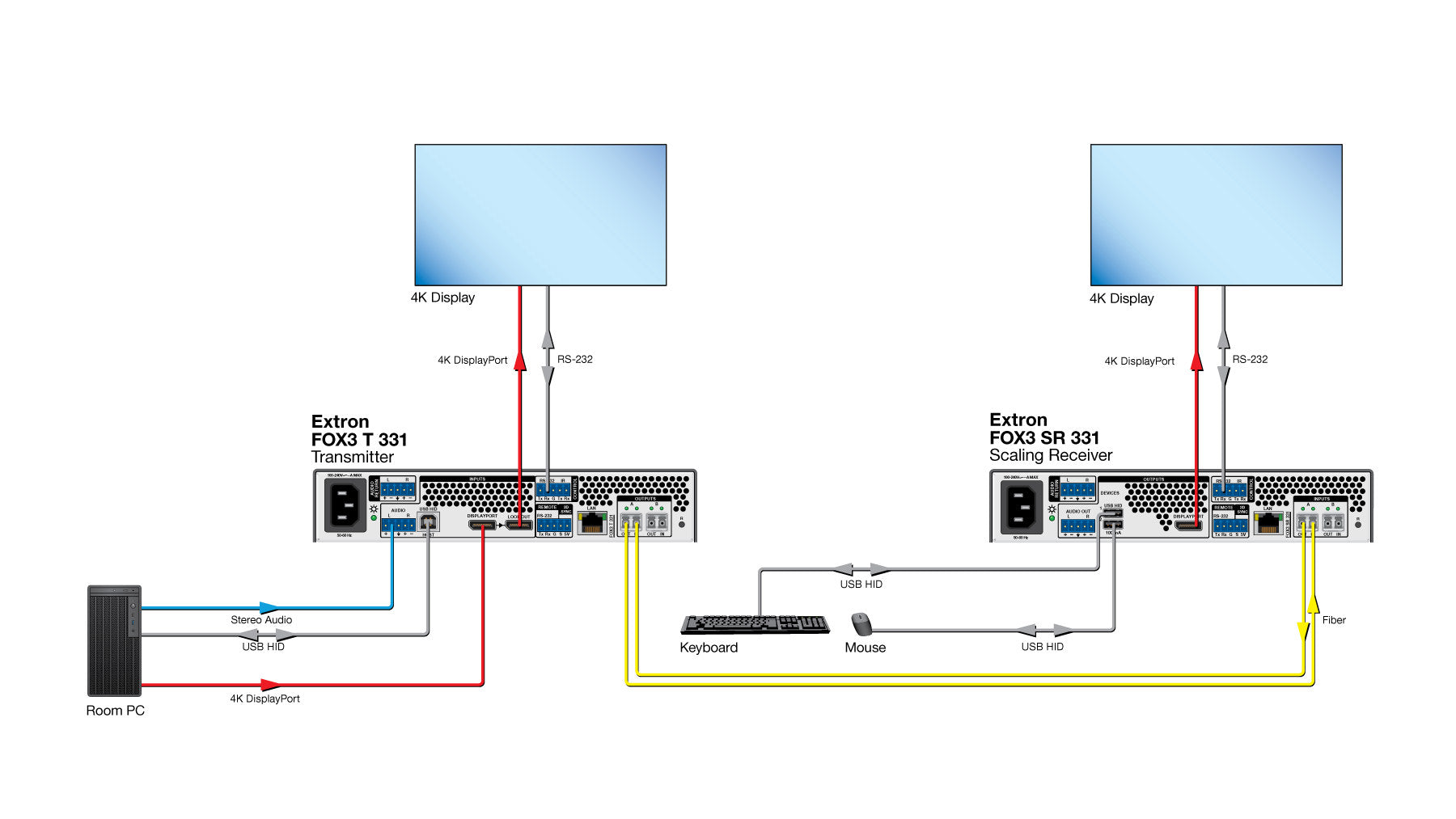

Diagram
