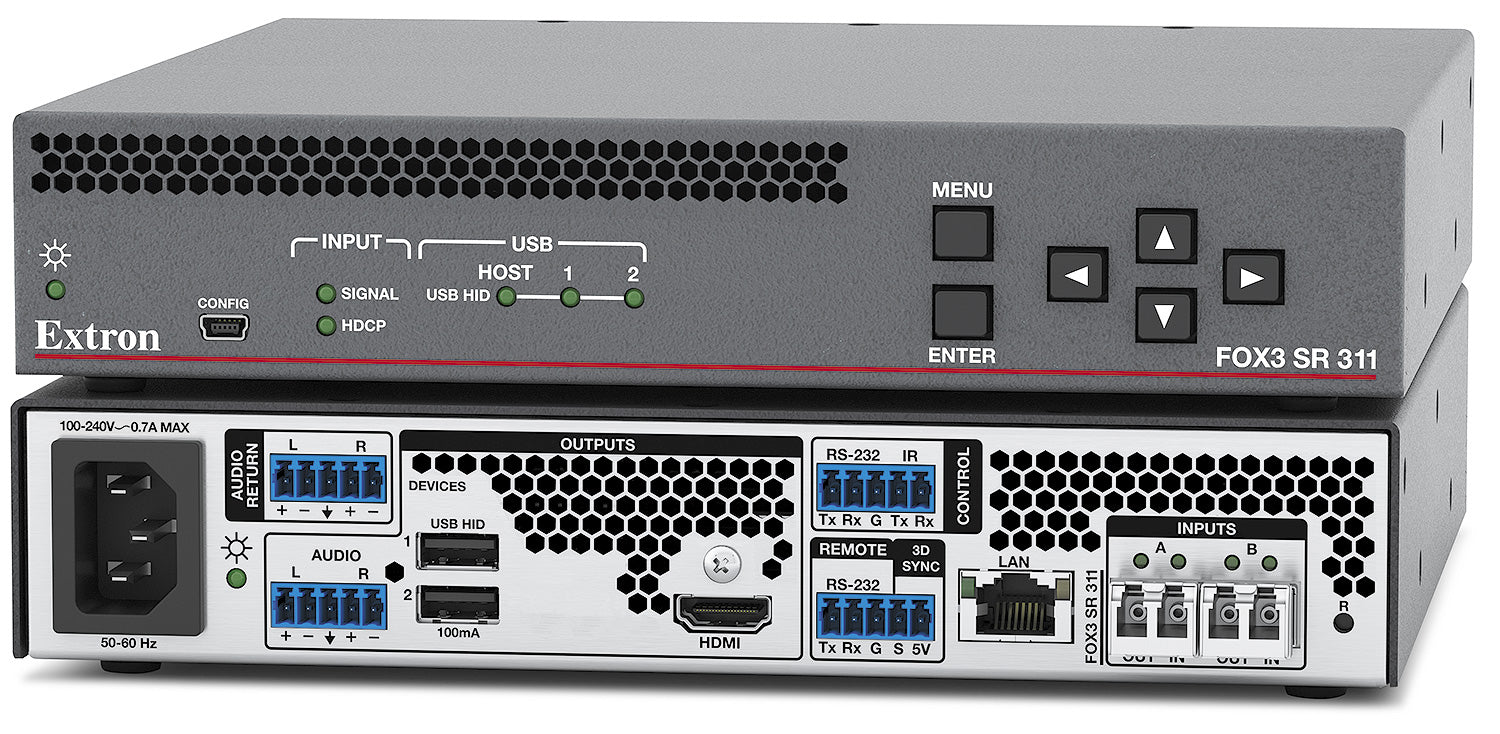

Extron FOX3 SR 311 SM (part number 60-1732-24) — a singlemode fiber optic receiver built for uncompressed 4K/60 HDMI delivery across long campus and facility runs.

This receiver pulls the video, audio, USB HID, and control signals sent by a matching FOX3 transmitter and rebuilds them at the display end. Its onboard scaler outputs up to 4096x2160 at 60 Hz with 4:4:4 color, so a single receiver can match whatever native resolution a downstream display needs regardless of what the source is putting out. Because it rides on singlemode glass at 1310 nm, reach extends to 20 km — enough to link buildings on a campus or bridge a stadium concourse — without the signal loss copper-based extenders suffer over distance.

Key Capabilities

Rebuilds HDMI up to 4096x2160 at 60 Hz, 4:4:4 chroma, from incoming fiber data
Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
USB HID pass-through for KVM-style keyboard and mouse extension
Analog stereo audio de-embed plus a return audio channel for local mic or paging
RS-232 and IR insertion ports keep sources and displays controllable at distance
Front-panel Ethernet-over-USB configuration port and rear RJ-45 for network monitoring

Where It Is Used

Pairs naturally with a FOX3 T 311 transmitter for point-to-point 4K delivery, or with a FOX3 matrix for enterprise distribution. The long singlemode reach suits university campuses, airports, stadiums, and government or medical sites where runs exceed what copper HDBaseT extenders can cover and a secure, interference-immune link matters.

Specifications at a Glance

Video: up to 4096x2160 at 60 Hz, 4:4:4, HDMI 2.0/HDCP 2.3
Fiber: singlemode, 20 km max reach, LC connectors, 1310 nm
Data rate: 10 Gbps single-fiber / 20 Gbps dual-fiber
Enclosure: half-rack metal, 1.7"H x 8.75"W x 8.5"D, 2.5 lbs
Power: internal 100-240 VAC supply, 30.3 W consumption

Also referenced as Extron FOX3SR311SM, FOX3-SR-311-SM, part number 60173224.

Specifications

Part Number: 60-1732-24

Manufacturer: Extron

Model: FOX3 SR 311 SM

Condition: New

Video Output Signal: 1 HDMI, female Type A connector

Max. Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Max. Pixel Clock: 594 MHz

Max. Resolution: 4096x2160 at 60 Hz, 4:4:4 chroma (lossless over 1 fiber, uncompressed over 2 fibers)

Scaled Output Resolutions: 480p through 4096x2160, plus 1 custom mode and bypass

Standards: HDMI 2.0, HDCP 2.3

Power for Active Cables: 1.1 W max. at the HDMI port

Audio Output: 1 digital (2-CH LPCM via HDMI) or 1 analog stereo, balanced/unbalanced

Audio Output Connectors: 1 HDMI (shared with video), 1 3.5 mm captive screw, 5-pole

Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

S/N Ratio: >90 dB at maximum output, unweighted

THD + Noise: <0.1% at 20 Hz to 20 kHz, nominal level

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Return Input: 1 analog stereo, balanced/unbalanced, 3.5 mm captive screw, 5-pole

Audio Return Input Impedance: ≥10k ohms unbalanced, ≥20k ohms balanced

Audio Return Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio Return Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Fiber Connectors: 1, 2, or 3 LC (1 or 2 SFP modules)

Operating Distance (Singlemode): 20 km (12.4 miles)

Nominal Peak Wavelength: 1310 nm (singlemode)

Fiber Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power (Singlemode): -5.2 dBm, minimum

Receiver Sensitivity (Singlemode): -12.6 dBm, maximum

Optical Loss Budget (Singlemode): +7.4 dB, maximum

USB Configuration Port: 1 front-panel mini USB B, female, Ethernet over USB

Serial Host Control: 1 RS-232, 3.5 mm captive screw, 5-pole, 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Pass-Through: 1 RS-232, 3.5 mm captive screw, 5-pole, 9600 to 115,200 baud

IR Control Port: 3.5 mm captive screw, 5-pole (shared with RS-232 pass-through), 30-56 kHz modulated

Ethernet Control: 1 RJ-45, 10/100/1000Base-T, default IP 192.168.254.254

USB HID Ports: 2 USB Type A, female, 100 mA available, 0 built-in hubs

Program Control: Extron Product Configuration Software, Extron SIS

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption: 30.3 watts

Thermal Dissipation: 90.7 BTU/hr

Ambient Temperature/Humidity: Storage -40 to +158°F (-40 to +70°C), 10-90% noncondensing; Operating +32 to +122°F (0 to +50°C), 10-90% noncondensing

Cooling: Fan, blows top to rear (vented)

Enclosure: Metal, 1.7" H x 8.75" W x 8.5" D, half rack wide (depth excludes connectors)

Mounting: Rack mount with optional shelf; furniture mount with optional under-desk kit

Product Weight: 2.5 lbs (1.3 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | FOX3 SR 311 SM 60-1732-24 | FOX3 Systems (fox3_matrix_series_vA5.pdf)

Brochure | FOX3 SR 311 SM 60-1732-24 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)

Brochure | FOX3 SR 311 SM 60-1732-24 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)

Brochure | FOX3 SR 311 SM 60-1732-24 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)

Brochure | FOX3 SR 311 SM 60-1732-24 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)

Brochure | FOX3 SR 311 SM 60-1732-24 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)

Brochure | FOX3 SR 311 SM 60-1732-24 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)

Manual | FOX3 SR 311 SM 60-1732-24 | Cleaning Instruction Card

Manual | FOX3 SR 311 SM 60-1732-24 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 SR 311 SM 60-1732-24 | FOX3 SR 301 and FOX3 SR 311 User Guide

Manual | FOX3 SR 311 SM 60-1732-24 | FOX3 SR 301/311 Setup Guide

Specifications | FOX3 SR 311 SM 60-1732-24 | FOX3 SR 311

Panel Drawing | FOX3 SR 311 SM 60-1732-24 | FOX3 SR 311

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron FOX3 SR 311 SM Fiber Optic Scaling Receiver 60-1732-24

Name: Extron FOX3 SR 311 SM Fiber Optic Scaling Receiver 60-1732-24
Brand: Extron
SKU: EXTRON-FOX3SR311SM-60173224
Availability: InStock

Manufacturer: Extron

Type: Fiber Optics

Extron FOX3 SR 311 SM Fiber Optic Scaling Receiver

• Uncompressed 4K/60 HDMI at 4:4:4 chroma from FOX3 fiber transmitters
• Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
• USB HID extension for KVM keyboard and mouse over the same fiber run
• RS-232 and IR insertion keep sources and displays controllable at distance
• Analog stereo audio de-embed plus a local audio return channel
• Half-rack 1U metal enclosure draws just 30.3 W
• Ethernet monitoring via RJ-45 for remote system management
