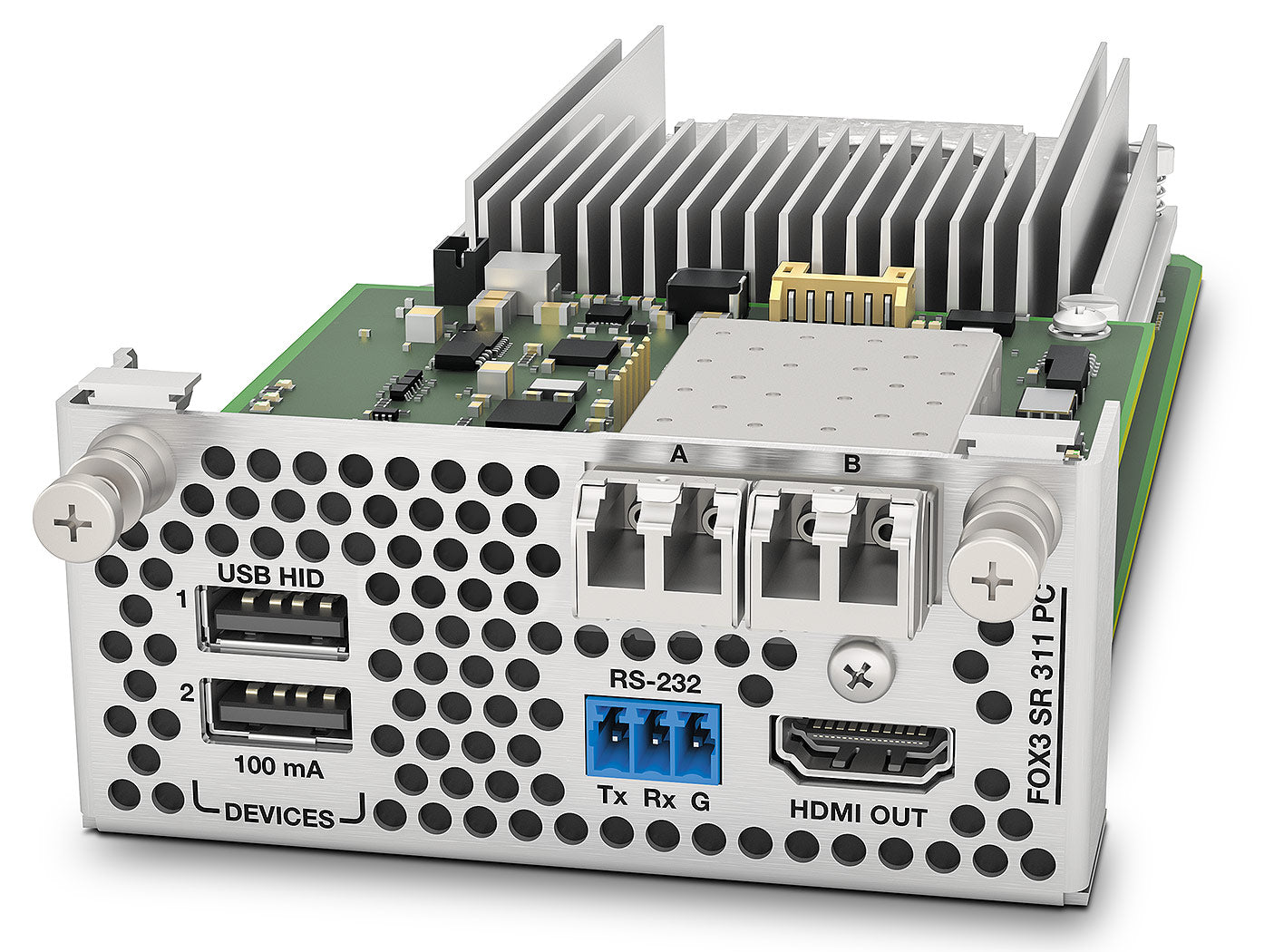

Part Number: 70-1223-22
Manufacturer: Extron
Condition: New
4096 x 2160 at 30 Hz1: 10 bit
4096 x 2160 at 30 Hz2: 4:4:4
4096 x 2160 at 60 Hz1: 4:4:4
4096 x 2160 at 60 Hz2: 4:2:2
Height: 3.0" (7.6 cm)
Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
Audio bits per sample: 16, 20, 24
Audio delay: Compressed or uncompressed = 2-3 framesCompressed = 0.5 frame, Uncompressed = 2 lines (in bypass mode)
Available USB power: USB 2.0 port = 500 mA USB HID ports = 100 mA
Baud rates: 9600 to 115,200 baud
Chroma sampling3: 4:4:4, 4:2:2
Color bit depth: 8, 10, and 12 bits per color
Color bit depth2,3: 8, 10, or 12 bits per color
Color space: 4:4:4, 4:2:2
Connectors: 1, 2 or 3 LC connectors
Cooling: Fan, air flows from front to rear within the PowerCage 411 enclosure
Data rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)
Data transfer types: Bulk, control, interrupt, and isochronous
Everlast power supply warranty: 7 years parts and labor
FOX3 SR 201 PC: 19.2 watts
FOX3 SR 301 PC: 24.9 watts
FOX3 SR 311 PC: 20.8 watts
Formats: RGB and YCbCr digital video
Frame rate: 24, 25, 30, 50, 60, or 120 fps
Frame rate3: 24, 25, 30, 50, or 60 fps
Gain error: ± 0.5 dB channel to channel
Horizontal frequency: 24 kHz to 135 kHz
Max. video data rate: 18.0 Gbps
Maximum built-in USB hubs: 0
Maximum data rate: Up to 18.0 Gbps (6.0 Gbps per color)
Maximum pixel clock: 594 MHz
Module dimensions: 1.6” H x 3.5” W x 8.0” D (4.1 cm H x 8.9 cm W x 20.3 cm D) (Each fits a single slot opening in a PowerCage 411 enclosure.)
Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables
Nominal peak wavelength: 850 nm for multimode, 1310 nm for singlemode
Number/signal type: 1 HDMI
Number/type: 1 or 2 SFPs
Pass-through pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd
Power for active cables: 1.6 watts max. for HDMI port
Power supply: InternalSupplied by PowerCage 411 enclosure
Product warranty: 3 years parts and labor
Program control: Extron control/configuration program for Windows® (PCS) Extron Simple Instruction Set (SIS™) Microsoft® Internet Explorer® ver 6.0 or higher, Telnet
Regulatory compliance: CE, c-UL, C-tick, FCC Class A, FDA Class 1, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE.
Resolution and Refresh Rate: Chroma Sampling
Resolution range: 640x4808 up to 4096x21601,2,3,4,5,6,7,8, 480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9, 2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8 123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz, 9120 Hz
Sampling rate: 48 kHz
Scaled resolution: 640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1400x10508, 1600x9008, 1600x12008, 1920x12008, 2048x12008, 2048x15368, 2560x10808, 2560x14408, 2560x16008, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2K1,2,3,4,5,6,7,8, 1 custom, bypass 123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz
Serial pass-through port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole
Signal Type: HDMI 2.0, HDCP 2.3
Singlemode: 20 km (12.4 miles) with singlemode (SM) cables
Source formats: HDMI - 2-CH LPCM
USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480Mbps)
USB standards: USB 2.0, USB 1.1, USB 1.0 compatible
Vertical frequency: 24 Hz to 120 Hz (depending on the resolution)
Video delay: Compressed or uncompressed = 2-3 frames (through the Scaler engine)Compressed = 0.5 frame, Uncompressed = 2 lines (in bypass mode)
Volume control range: 100% to 0% (0 - 100 in 1% steps)
