Details

Manufacturer: Extron | Model: FOX3 SR 311 PC MM | Part number: 70-1223-21 (also written 7012221)

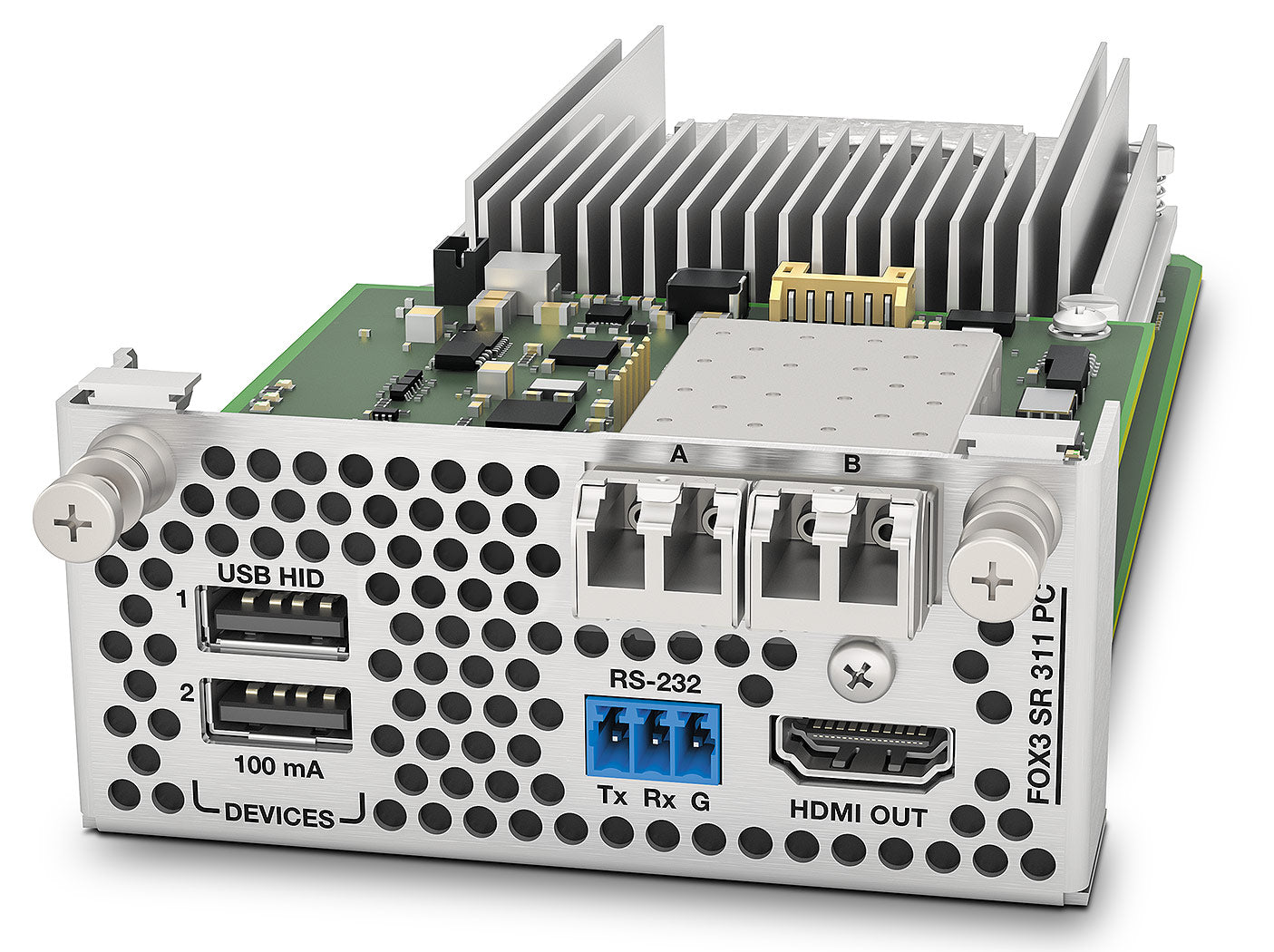

The Extron FOX3 SR 311 PC MM Lossless, part number 70-1223-21, is a multimode fiber scaling receiver module that occupies one slot in the PowerCage 411 enclosure. This lossless variant uses one multimode fiber to carry mathematically lossless 4K/60 at 4:4:4 from any FOX3 Series transmitter to the receiver. Output is one scaled HDMI feed up to 4096x2160 at 60 Hz with 4:4:4 chroma and up to 12-bit color depth at 18 Gbps, plus one USB 2.0 host port, two USB HID ports, and one bidirectional RS-232 pass-through port. The built-in scaler handles output resolution adjustment and can run in bypass mode. Power is supplied by the PowerCage 411 enclosure. Multimode fiber reach is up to 500 m on OM4 laser-optimized cable.

Specifications

Part Number: 70-1223-21

Manufacturer: Extron

Condition: New

4096 x 2160 at 30 Hz1: 10 bit

4096 x 2160 at 30 Hz2: 4:4:4

4096 x 2160 at 60 Hz1: 4:4:4

4096 x 2160 at 60 Hz2: 4:2:2

Height: 3.0" (7.6 cm)

Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Audio bits per sample: 16, 20, 24

Audio delay: Compressed or uncompressed = 2-3 framesCompressed = 0.5 frame, Uncompressed = 2 lines (in bypass mode)

Available USB power: USB 2.0 port = 500 mA USB HID ports = 100 mA

Baud rates: 9600 to 115,200 baud

Chroma sampling3: 4:4:4, 4:2:2

Color bit depth: 8, 10, and 12 bits per color

Color bit depth2,3: 8, 10, or 12 bits per color

Color space: 4:4:4, 4:2:2

Connectors: 1, 2 or 3 LC connectors

Cooling: Fan, air flows from front to rear within the PowerCage 411 enclosure

Data rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Data transfer types: Bulk, control, interrupt, and isochronous

Everlast power supply warranty: 7 years parts and labor

FOX3 SR 201 PC: 19.2 watts

FOX3 SR 301 PC: 24.9 watts

FOX3 SR 311 PC: 20.8 watts

Formats: RGB and YCbCr digital video

Frame rate: 24, 25, 30, 50, 60, or 120 fps

Frame rate3: 24, 25, 30, 50, or 60 fps

Gain error: ± 0.5 dB channel to channel

Horizontal frequency: 24 kHz to 135 kHz

Max. video data rate: 18.0 Gbps

Maximum built-in USB hubs: 0

Maximum data rate: Up to 18.0 Gbps (6.0 Gbps per color)

Maximum pixel clock: 594 MHz

Module dimensions: 1.6” H x 3.5” W x 8.0” D (4.1 cm H x 8.9 cm W x 20.3 cm D) (Each fits a single slot opening in a PowerCage 411 enclosure.)

Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables

Nominal peak wavelength: 850 nm for multimode, 1310 nm for singlemode

Number/signal type: 1 HDMI

Number/type: 1 or 2 SFPs

Pass-through pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Power for active cables: 1.6 watts max. for HDMI port

Power supply: InternalSupplied by PowerCage 411 enclosure

Product warranty: 3 years parts and labor

Program control: Extron control/configuration program for Windows® (PCS) Extron Simple Instruction Set (SIS™) Microsoft® Internet Explorer® ver 6.0 or higher, Telnet

Regulatory compliance: CE, c-UL, C-tick, FCC Class A, FDA Class 1, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE.

Resolution and Refresh Rate: Chroma Sampling

Resolution range: 640x4808 up to 4096x21601,2,3,4,5,6,7,8, 480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9, 2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8 123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz, 9120 Hz

Sampling rate: 48 kHz

Scaled resolution: 640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1400x10508, 1600x9008, 1600x12008, 1920x12008, 2048x12008, 2048x15368, 2560x10808, 2560x14408, 2560x16008, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2K1,2,3,4,5,6,7,8, 1 custom, bypass 123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz

Serial pass-through port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole

Signal Type: HDMI 2.0, HDCP 2.3

Singlemode: 20 km (12.4 miles) with singlemode (SM) cables

Source formats: HDMI - 2-CH LPCM

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480Mbps)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vertical frequency: 24 Hz to 120 Hz (depending on the resolution)

Video delay: Compressed or uncompressed = 2-3 frames (through the Scaler engine)Compressed = 0.5 frame, Uncompressed = 2 lines (in bypass mode)

Volume control range: 100% to 0% (0 - 100 in 1% steps)

Diagram

Resources

Brochure | FOX3 SR 311 PC MM 70-1223-21 | PowerCage 411

Manual | FOX3 SR 311 PC MM 70-1223-21 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 SR 311 PC MM 70-1223-21 | FOX3 SR 301/311/201 PC Setup Guide

Manual | FOX3 SR 311 PC MM 70-1223-21 | PowerCage 411 Series User Guide

Specifications | FOX3 SR 311 PC MM 70-1223-21 | FOX3 SR 201/301/311 PC

Panel Drawing | FOX3 SR 311 PC MM 70-1223-21 | FOX3 SR 311 PC

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron FOX3 SR 311 PC MM 70-1223-21

Name: Extron FOX3 SR 311 PC MM 70-1223-21
Brand: Extron
SKU: EXTRON-FOX3SR311PCMM-70122321
Availability: InStock

Manufacturer: Extron

Type: Fiber Optics

Extron FOX3 SR 311 PC MM 70-1223-21 Lossless

• Multimode PowerCage 411 receiver module: lossless 4K/60 over one fiber
• Mathematically lossless 4K/60 4:4:4 using a single SFP and one fiber strand
• Scales HDMI output to any resolution up to 4096x2160 at 60 Hz 4:4:4
• Up to 500 m on OM4 multimode cable, power supplied by the PowerCage 411
• Includes USB 2.0 host port, two USB HID ports, and RS-232 pass-through
