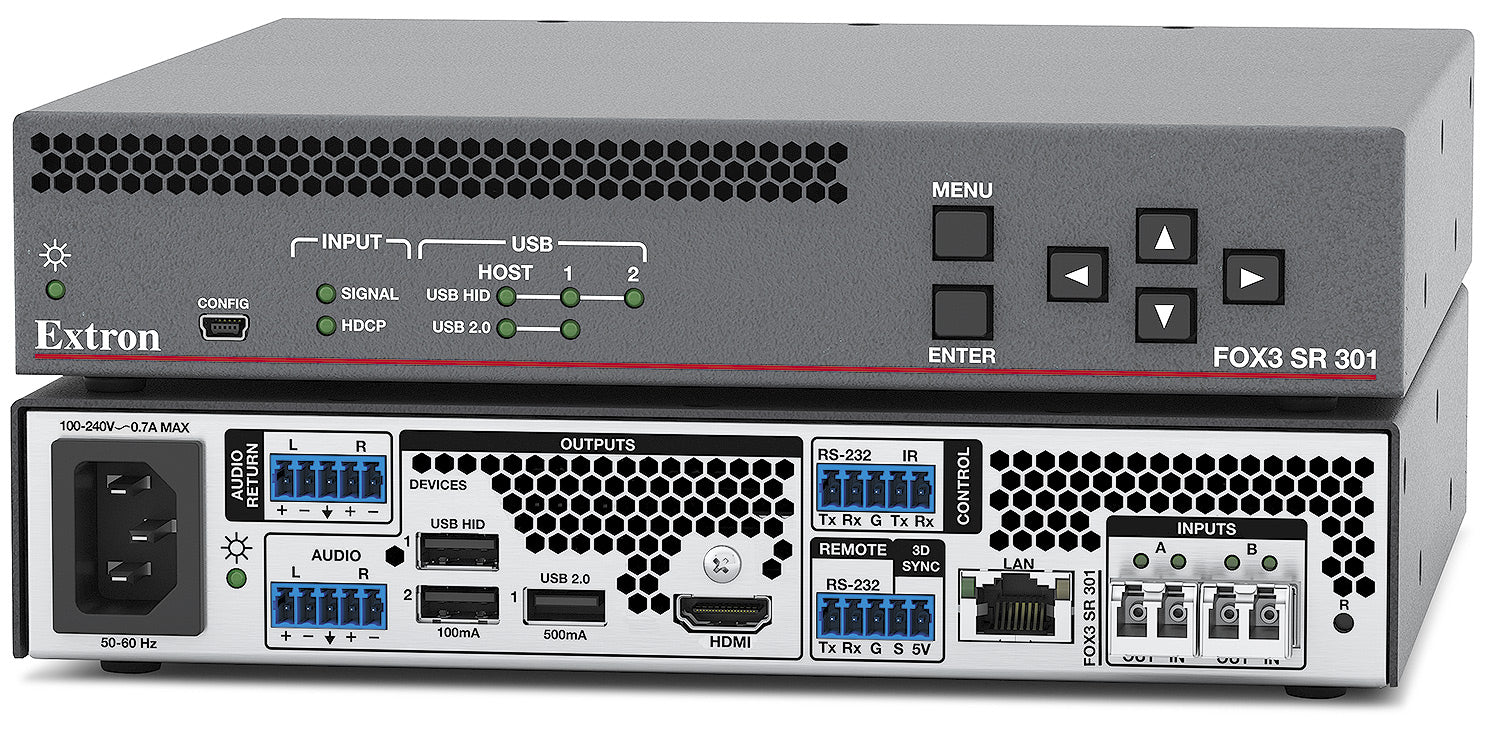

Extron FOX3 SR 301 SM 60-1749-24 Uncompressed Scaling Receiver
- • Uncompressed fiber scaling receiver for HDMI, USB 2.0, audio, and control
- • 20 km (12.4 miles) over singlemode fiber
- • Scales to fixed output resolutions up to 4096x2160 at 60 Hz, or bypass mode
- • Full USB 2.0 host plus 2-port USB HID hub for KVM extension
- • Bidirectional RS-232 and IR control pass-through
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron FOX3 SR 301 SM (part number 60-1749-24) is an uncompressed fiber optic scaling receiver for HDMI, USB, stereo audio, RS-232/IR control, and 3D sync, built to pair with an Extron FOX3 T 301 transmitter or a FOX3 Matrix fiber switcher over singlemode cable.
The SR 301's built-in scaler outputs fixed resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling, or runs in bypass mode to pass the source resolution unchanged, over a single HDMI 2.0, HDCP 2.3-compliant output. Unlike the SR 201, the SR 301 adds a full USB 2.0 host alongside its two-port USB HID hub, supporting xHCI/EHCI-class peripherals at up to 480 Mbps in addition to keyboard/mouse extension -- ideal for KVM applications that need more than HID devices. Audio de-embeds to a digital HDMI-embedded output or a 3.5 mm analog stereo connector, with bidirectional RS-232 and IR pass-through control on the same fiber run. This uncompressed variant uses 2 SFPs (uncompressed 4K/60 over two fibers), giving a maximum channel data rate of 20.0 Gbps (2 fibers). Power is internal, 100-240 VAC.
Key Capabilities
- Built-in scaler outputs fixed resolutions up to 4096x2160 at 60 Hz, or bypass mode
- Full USB 2.0 host plus 2-port USB HID hub for KVM extension
- 20 km (12.4 miles) on singlemode fiber
- Bidirectional RS-232 and IR pass-through control
- Half-rack metal enclosure with optional rack shelf or under-desk mount
Where It Is Used
Workstation KVM extension and control rooms that need HDMI, general-purpose USB 2.0 peripherals, and RS-232/IR device control delivered together over fiber specify the SR 301 alongside a matching FOX3 T 301 transmitter or FOX3 Matrix frame.
Specifications at a Glance
- Optical link: 2 SFPs (uncompressed 4K/60 over two fibers), 2 LC connectors, 20 km (12.4 miles)
- Video output: 1 HDMI, scaled or bypass, up to 4096x2160 at 60 Hz 4:4:4
- USB: 1-port USB 2.0 host + 2-port USB HID hub
- Enclosure: 1.7" H x 8.75" W x 8.5" D (half rack wide)
Also referenced as Extron FOX3SR301SM, FOX3-SR-301-SM, part number 60174924.
