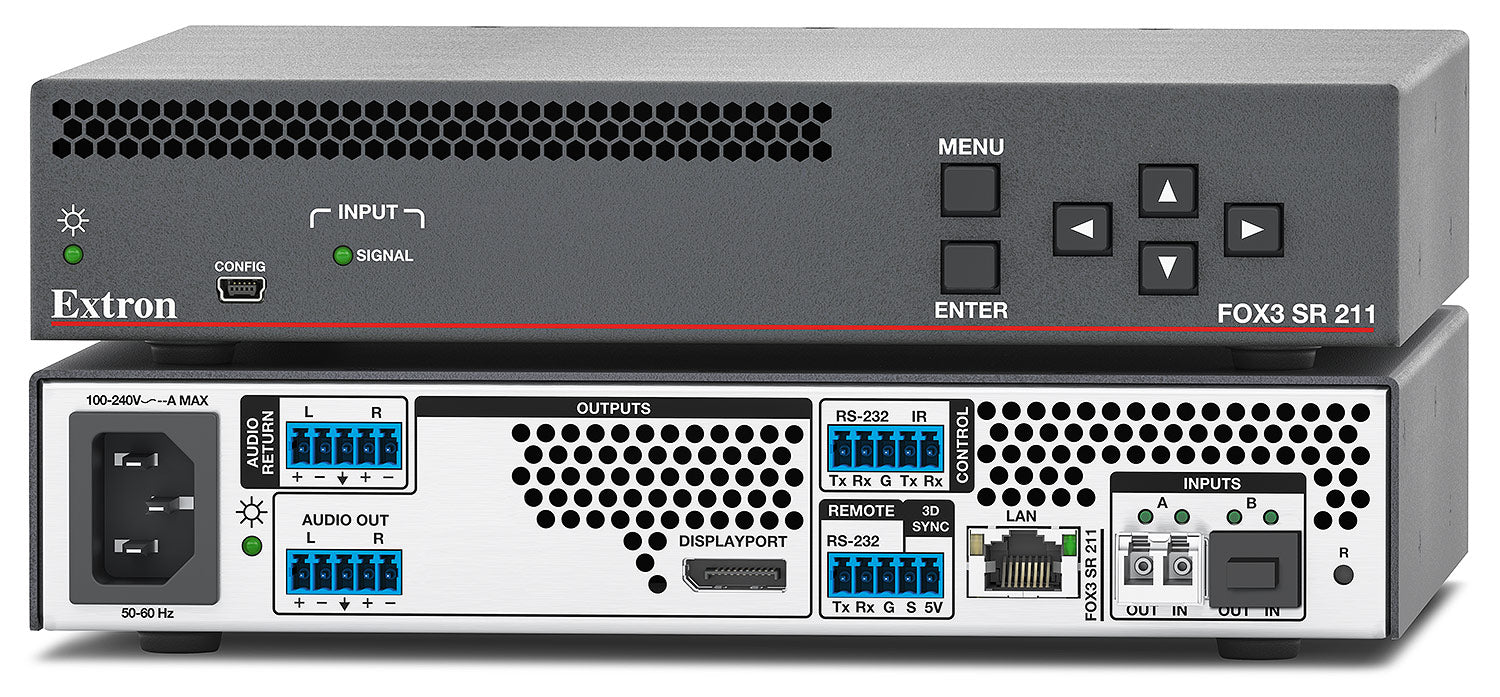

Extron FOX3 SR 211 SM (part number 60-2090-22) — the singlemode build of the FOX3 SR 211 scaling receiver, intended for optical runs measured in kilometres rather than metres.

At the display end of a FOX3 link this unit recovers DisplayPort video, stereo audio, RS-232, IR and 3D sync from the fiber and drives them out locally. The video path is mathematically lossless, so nothing is thrown away in transit, and an integrated Vector 4K scaling engine re-rates the picture to suit the attached display instead of forcing the source to change. FILL and FOLLOW modes govern aspect ratio, and the output colour space and chroma sampling can be set automatically to match the display.

Key Capabilities

Singlemode operating distance of 20 km (12.4 miles) at a 1310 nm peak wavelength
Scaled DisplayPort output selectable up to 4096x2160 / 60 Hz at 4:4:4 chroma
DisplayPort 1.2a signalling with data rates to 21.6 Gbps and 10-bit Deep Colour
Optical loss budget of +7.4 dB maximum with -12.6 dBm typical receiver sensitivity
DisplayPort audio de-embedding plus a separate analog stereo return channel
Network monitoring over RJ-45 and control insertion via RS-232 or IR

Where It Is Used

Singlemode reach makes this the model for airports, stadiums, multi-building campuses and inter-facility links where the display sits far from the head end. It also suits government, military and medical installations, where an optical backbone is chosen for its resistance to electromagnetic interference and its inherent transmission security.

Specifications at a Glance

Max. video data rate 21.6 Gbps (5.4 Gbps per lane); maximum data rate 18 Gbps
Transmission power -5.2 dBm typical; 1 SFP with 1 or 2 LC connectors
Fiber data rate 10.0 Gbps on one fiber or 20.0 Gbps on two
Enclosure 1.7" H x 8.75" W x 8.5" D, 1U half rack wide, metal, 2.4 lbs (1.1 kg)
Warranty 3 years parts and labor; Everlast power supply 7 years parts and labor

Also referenced as Extron FOX3SR211SM, FOX3-SR-211-SM, part number 60209022.

Specifications

Part Number: 60-2090-22

Manufacturer: Extron

Model: FOX3 SR 211 SM

Condition: New

Signal type: DP 1.2a

Maximum data rate: 18 Gbps

Max. video data rate: 21.6 Gbps (5.4 Gbps per lane)

Maximum pixel clock: 594 MHz

Resolution range: 640x480 up to 4096x2160, plus 480p, 576p, 720p, 1080i, 1080p, 2K and 3840x2160 (refresh rates from 23.98 Hz to 120 Hz)

Frame rate: 24, 25, 30, 50, 60, or 120 fps

Color space: 4:4:4, 4:2:2

Color bit depth: 8 or 10 bits per color

Standards: DP 1.2a

Horizontal frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Format: RGB and YCbCr digital video

Video output number/signal type: 1 single link DisplayPort

Video output connectors: 1 female DisplayPort type A

Video delay: 2-3 frames through the scaler engine; 0.5 frame in bypass mode

Scaled resolution: 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x900, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2160, 4096x2160, 480p, 576p, 720p, 1080i, 1080p, 2K, 1 custom, bypass

Fiber optic interface number/type: 1 SFP

Fiber connectors: 1 or 2 LC connectors

Operating distance (singlemode): 20 km (12.4 miles) with singlemode (SM) cables

Nominal peak wavelength: 1310 nm (singlemode)

Fiber data rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission power (singlemode): -5.2 dBm, typical

Maximum receiver sensitivity (singlemode): -12.6 dBm, typical

Optical loss budget (singlemode): +7.4 dB, maximum

Laser safety: Class 1 laser; meets IEC 60825-1, FDA 21 CFR 1040.10 and FDA 21 CFR 1040.11

Audio gain: Unbalanced output -6 dB; balanced output 0 dB (default)

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: <0.1% @ 20 Hz to 20 kHz at nominal level

S/N: >90 dB at maximum output (unweighted)

CMRR: 65 dB @ 20 Hz to 20 kHz

Stereo channel separation: >80 dB @ 1 kHz

Audio bit depth: 16, 20, 24

Sampling rate: 48 kHz

Audio output number/signal type: 1 digital audio de-embedded from DisplayPort (2-CH, PCM only) or 1 analog stereo, balanced/unbalanced

Audio output connectors: 1 female DisplayPort (shared with video output); 1 3.5 mm captive screw connector, 5 pole

Audio output supported formats: DisplayPort 2 CH LPCM; analog stereo audio

Audio output impedance: 50 ohms unbalanced, 100 ohms balanced (analog only)

Audio output maximum level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced

Gain error: ± 0.5 dB channel to channel

Volume control range: 100% to 0% (0 - 100 in 1% steps)

Audio delay: 2-3 frames; 0.5 frame in bypass mode

Audio return input number/signal type: 1 analog stereo, balanced/unbalanced

Audio return input connectors: 1 3.5 mm captive screw connector, 5 pole

Audio return input impedance: ≥10 k ohms unbalanced, ≥20 k ohms balanced

Audio return nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio return maximum level: +21 dBu balanced, +15 dBu unbalanced

Audio return gain range: Adjustable, -18 dB to +24 dB in 1 dB steps

USB configuration port: 1 front panel mini USB B, female; Ethernet over USB; USB 2.0, low speed

Ethernet port: 1 RJ-45 connector, female

Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect

Protocols: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP

Default settings: Link speed and duplex level autodetected; IP address 192.168.254.254; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off

Serial host control port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel

Serial pass-through port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel

Baud rate and protocol: Control 9600 baud, 8 data bits, 1 stop bit, no parity; pass-through 9600 to 115,200 baud

Serial control pin configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND

IR control port: 1 3.5 mm captive screw connector, 5 pole (shared with RS-232 pass thru); TTL level (0 to 5 V) modulated infrared control from 30 kHz to 56 kHz

IR control pin configuration: 3 = GND, 4 = IR Tx, 5 = IR Rx

Program control: Extron Product Configuration Software; Extron Simple Instruction Set (SIS)

Power supply: Internal; input 100-240 VAC, 50-60 Hz

Ambient temperature/humidity: Storage -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing; Operating +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Cooling: Convection

Rack mount: Yes, with optional rack shelf

Furniture mount: Yes, with optional under desk mounting kit

Enclosure type: Metal

Enclosure dimensions: 1.7" H x 8.75" W x 8.5" D (1U, half rack wide) (4.4 cm H x 22 cm W x 15 cm D); depth excludes connectors

Product weight: 2.4 lbs (1.1 kg)

Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

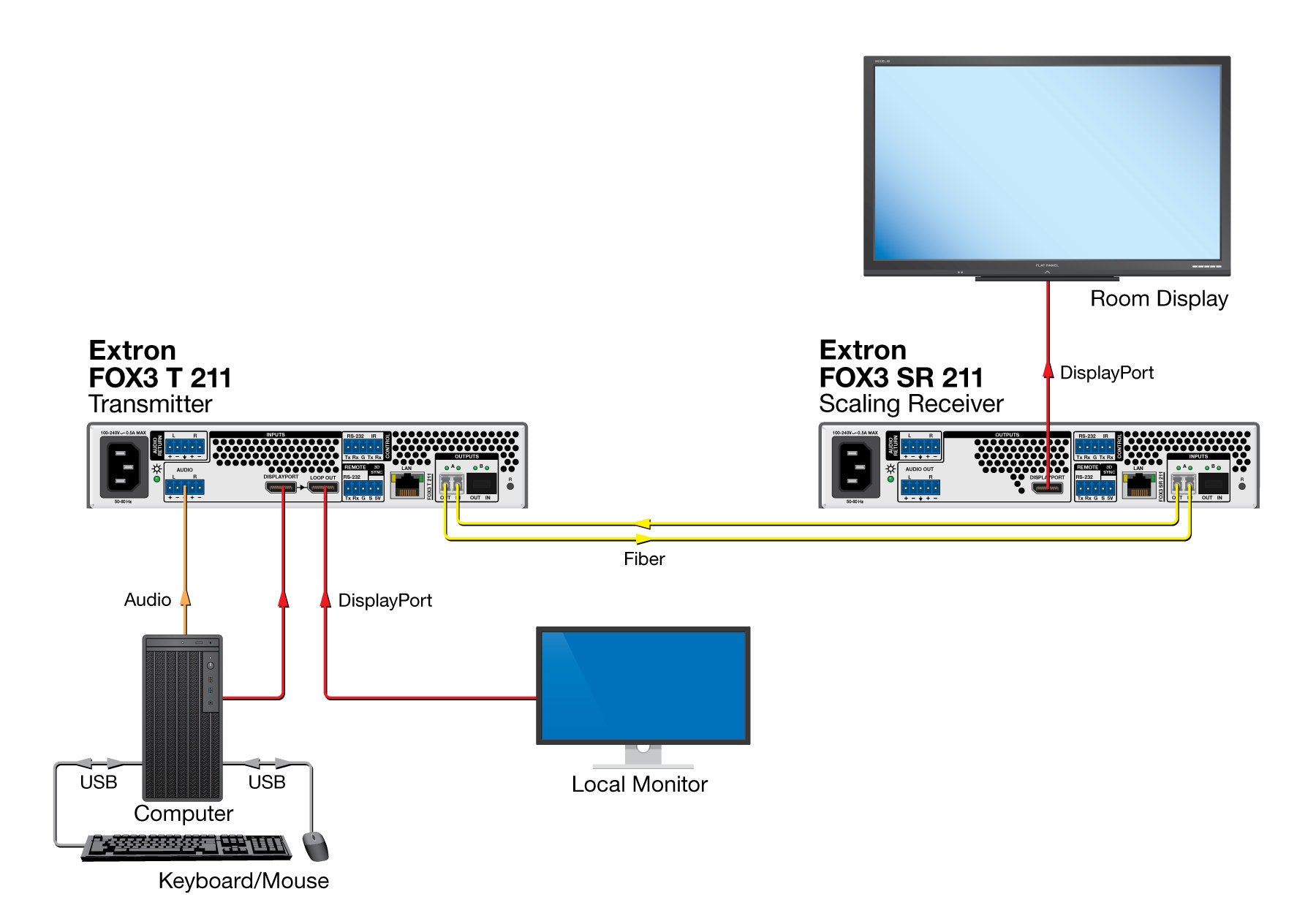

Diagram

Resources

Brochure | FOX3 SR 211 SM 60-2090-22 | FOX3 DisplayPort Extenders

Brochure | FOX3 SR 211 SM 60-2090-22 | Extender DisplayPort FOX3

Brochure | FOX3 SR 211 SM 60-2090-22 | Extendeurs DisplayPort FOX3

Brochure | FOX3 SR 211 SM 60-2090-22 | Extensores FOX3 DisplayPort

Brochure | FOX3 SR 211 SM 60-2090-22 | FOX3-DisplayPort-Extender

Manual | FOX3 SR 211 SM 60-2090-22 | FOX3 SR 321/331/211 Setup Guide

Manual | FOX3 SR 211 SM 60-2090-22 | FOX3 SR 321/331/211 User Guide

Specifications | FOX3 SR 211 SM 60-2090-22 | FOX3 SR 211

Panel Drawing | FOX3 SR 211 SM 60-2090-22 | FOX3 SR 211

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron FOX3 SR 211 SM Fiber Optic DisplayPort Scaling Receiver 60-2090-22

Name: Extron FOX3 SR 211 SM Fiber Optic DisplayPort Scaling Receiver 60-2090-22
Brand: Extron
SKU: EXTRON-FOX3SR211SM-60209022
Availability: InStock

Manufacturer: Extron

Type: Fiber Optics

Extron FOX3 SR 211 SM Fiber Optic Scaling Receiver

• Singlemode operating distance of 20 km (12.4 miles) at 1310 nm
• Scaled DisplayPort output selectable to 4096x2160 / 60 Hz at 4:4:4 chroma
• DisplayPort 1.2a data rates to 21.6 Gbps with 10-bit Deep Colour
• Optical loss budget +7.4 dB max; receiver sensitivity -12.6 dBm typical
• De-embeds DisplayPort audio to balanced or unbalanced analog stereo
• Analog audio return channel, plus RS-232 and IR insertion over fiber
• 10/100/1000Base-T LAN monitoring and front-panel USB configuration port
• 1U half-rack metal enclosure, 2.4 lbs, internal 100-240 VAC supply
