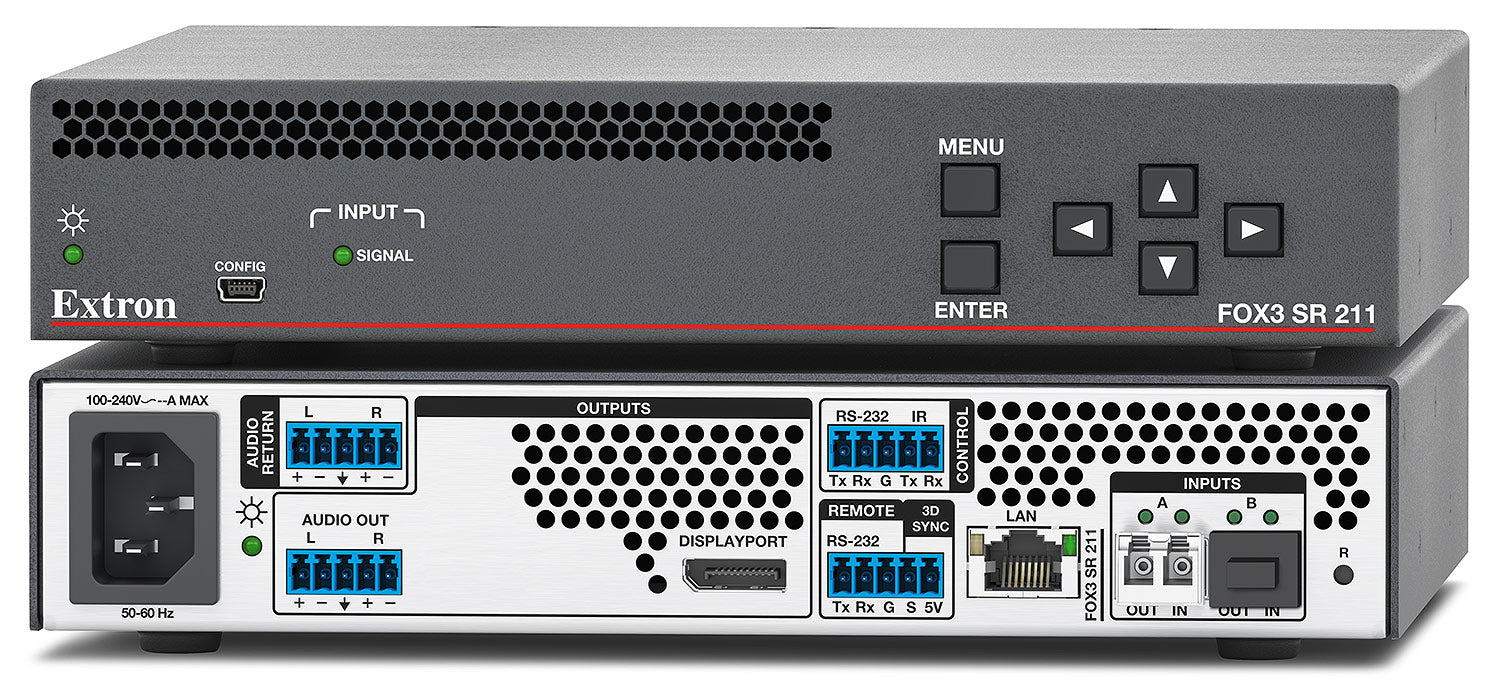

Extron FOX3 SR 211 MM (part number 60-2090-21) — the multimode member of Extron's FOX3 fiber optic scaling receiver line, built to land 4K/60 4:4:4 DisplayPort on a display at the far end of a fiber run.

This receiver terminates a FOX3 fiber link and hands off scaled DisplayPort video together with stereo audio, RS-232, IR and 3D sync. Because the optical path carries mathematically lossless imagery rather than a compressed proxy, what arrives at the display matches what left the source. An onboard Vector 4K scaling engine then re-rates the picture to whatever the connected display prefers, so a mismatched projector or panel no longer forces a compromise upstream. FILL and FOLLOW modes decide how aspect ratio is handled at the output.

Key Capabilities

Selectable scaled output rates reaching 4096x2160 / 60 Hz at 4:4:4 chroma
Multimode optical reach of 500 m (1640 feet) over 50 µm OM4 laser-optimized fiber at 850 nm
Handles DisplayPort 1.2a data rates to 21.6 Gbps with 8- or 10-bit color depth
De-embeds DisplayPort audio to a balanced or unbalanced analog stereo output
Analog audio return channel carries audio back up the link toward the transmitter
RS-232 and IR insertion ports drive remote sources and displays over the same fiber

Where It Is Used

Pairs with a FOX3 T 211 transmitter point to point, or plugs into a FOX3 Series matrix switcher for facility-wide distribution. Typical homes for it are boardrooms and auditoriums, campus and stadium AV backbones, medical imaging suites, and government or military control rooms where an optical path is preferred for its immunity to outside interference.

Specifications at a Glance

Max. video data rate 21.6 Gbps (5.4 Gbps per lane); maximum data rate 18 Gbps
Maximum pixel clock 594 MHz; horizontal 24–135 kHz, vertical 24–120 Hz
Optics: 1 SFP, 1 or 2 LC connectors, 10.0 Gbps on one fiber or 20.0 Gbps on two
Enclosure 1.7" H x 8.75" W x 8.5" D, 1U half rack wide, metal, 2.4 lbs (1.1 kg)
Warranty 3 years parts and labor; Everlast power supply 7 years parts and labor

Also referenced as Extron FOX3SR211MM, FOX3-SR-211-MM, part number 60209021.

Specifications

Part Number: 60-2090-21

Manufacturer: Extron

Model: FOX3 SR 211 MM

Condition: New

Signal type: DP 1.2a

Maximum data rate: 18 Gbps

Max. video data rate: 21.6 Gbps (5.4 Gbps per lane)

Maximum pixel clock: 594 MHz

Resolution range: 640x480 up to 4096x2160, plus 480p, 576p, 720p, 1080i, 1080p, 2K and 3840x2160 (refresh rates from 23.98 Hz to 120 Hz)

Frame rate: 24, 25, 30, 50, 60, or 120 fps

Color space: 4:4:4, 4:2:2

Color bit depth: 8 or 10 bits per color

Standards: DP 1.2a

Horizontal frequency: 24 kHz to 135 kHz for resolutions up to 18 Gbps

Vertical frequency: 24 Hz to 120 Hz for resolutions up to 18 Gbps

Format: RGB and YCbCr digital video

Video output number/signal type: 1 single link DisplayPort

Video output connectors: 1 female DisplayPort type A

Video delay: 2-3 frames through the scaler engine; 0.5 frame in bypass mode

Scaled resolution: 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x900, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2160, 4096x2160, 480p, 576p, 720p, 1080i, 1080p, 2K, 1 custom, bypass

Fiber optic interface number/type: 1 SFP

Fiber connectors: 1 or 2 LC connectors

Operating distance (multimode): 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cable; works with OM1, OM2 and OM3 fiber at reduced distances

Nominal peak wavelength: 850 nm (multimode)

Fiber data rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission power (multimode): -2.8 dBm, typical

Maximum receiver sensitivity (multimode): -11.1 dBm, typical

Optical loss budget (multimode): +8.3 dB, maximum

Laser safety: Class 1 laser; meets IEC 60825-1, FDA 21 CFR 1040.10 and FDA 21 CFR 1040.11

Audio gain: Unbalanced output -6 dB; balanced output 0 dB (default)

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: <0.1% @ 20 Hz to 20 kHz at nominal level

S/N: >90 dB at maximum output (unweighted)

CMRR: 65 dB @ 20 Hz to 20 kHz

Stereo channel separation: >80 dB @ 1 kHz

Audio bit depth: 16, 20, 24

Sampling rate: 48 kHz

Audio output number/signal type: 1 digital audio de-embedded from DisplayPort (2-CH, PCM only) or 1 analog stereo, balanced/unbalanced

Audio output connectors: 1 female DisplayPort (shared with video output); 1 3.5 mm captive screw connector, 5 pole

Audio output supported formats: DisplayPort 2 CH LPCM; analog stereo audio

Audio output impedance: 50 ohms unbalanced, 100 ohms balanced (analog only)

Audio output maximum level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced

Gain error: ± 0.5 dB channel to channel

Volume control range: 100% to 0% (0 - 100 in 1% steps)

Audio delay: 2-3 frames; 0.5 frame in bypass mode

Audio return input number/signal type: 1 analog stereo, balanced/unbalanced

Audio return input connectors: 1 3.5 mm captive screw connector, 5 pole

Audio return input impedance: ≥10 k ohms unbalanced, ≥20 k ohms balanced

Audio return nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio return maximum level: +21 dBu balanced, +15 dBu unbalanced

Audio return gain range: Adjustable, -18 dB to +24 dB in 1 dB steps

USB configuration port: 1 front panel mini USB B, female; Ethernet over USB; USB 2.0, low speed

Ethernet port: 1 RJ-45 connector, female

Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect

Protocols: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP

Default settings: Link speed and duplex level autodetected; IP address 192.168.254.254; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off

Serial host control port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel

Serial pass-through port: 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel

Baud rate and protocol: Control 9600 baud, 8 data bits, 1 stop bit, no parity; pass-through 9600 to 115,200 baud

Serial control pin configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND

IR control port: 1 3.5 mm captive screw connector, 5 pole (shared with RS-232 pass thru); TTL level (0 to 5 V) modulated infrared control from 30 kHz to 56 kHz

IR control pin configuration: 3 = GND, 4 = IR Tx, 5 = IR Rx

Program control: Extron Product Configuration Software; Extron Simple Instruction Set (SIS)

Power supply: Internal; input 100-240 VAC, 50-60 Hz

Ambient temperature/humidity: Storage -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing; Operating +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Cooling: Convection

Rack mount: Yes, with optional rack shelf

Furniture mount: Yes, with optional under desk mounting kit

Enclosure type: Metal

Enclosure dimensions: 1.7" H x 8.75" W x 8.5" D (1U, half rack wide) (4.4 cm H x 22 cm W x 15 cm D); depth excludes connectors

Product weight: 2.4 lbs (1.1 kg)

Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

Diagram

Resources

Brochure | FOX3 SR 211 MM 60-2090-21 | FOX3 DisplayPort Extenders

Brochure | FOX3 SR 211 MM 60-2090-21 | Extender DisplayPort FOX3

Brochure | FOX3 SR 211 MM 60-2090-21 | Extendeurs DisplayPort FOX3

Brochure | FOX3 SR 211 MM 60-2090-21 | Extensores FOX3 DisplayPort

Brochure | FOX3 SR 211 MM 60-2090-21 | FOX3-DisplayPort-Extender

Manual | FOX3 SR 211 MM 60-2090-21 | FOX3 SR 321/331/211 Setup Guide

Manual | FOX3 SR 211 MM 60-2090-21 | FOX3 SR 321/331/211 User Guide

Specifications | FOX3 SR 211 MM 60-2090-21 | FOX3 SR 211

Panel Drawing | FOX3 SR 211 MM 60-2090-21 | FOX3 SR 211
