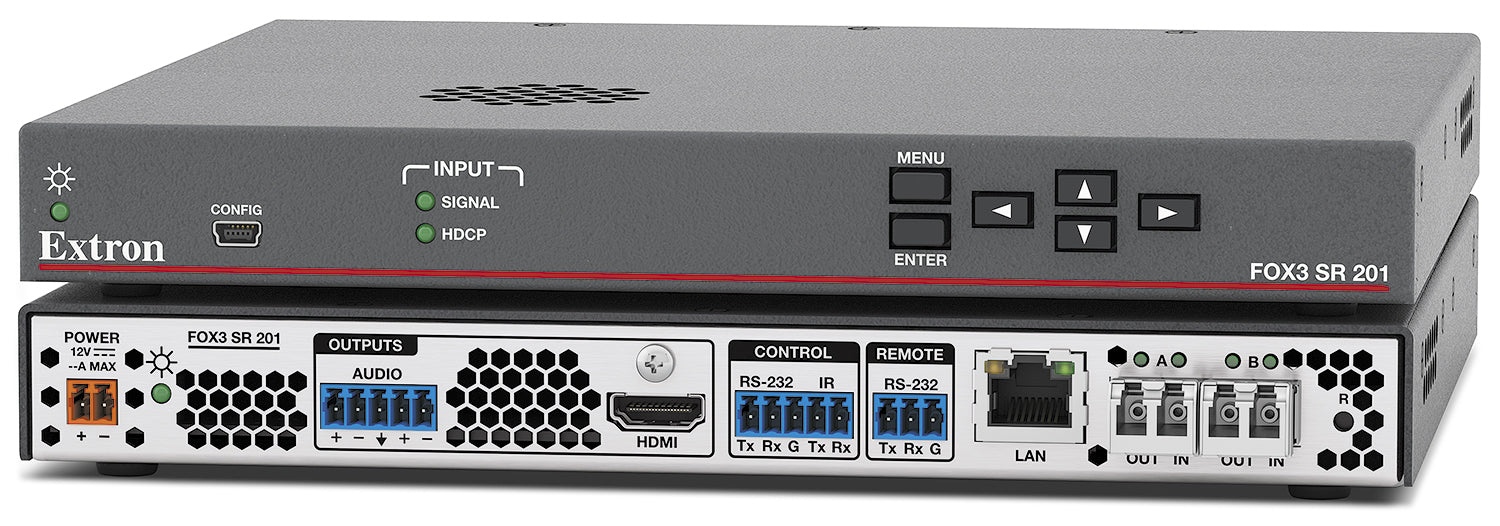

Extron FOX3 SR 201 SM 60-1600-22 Lossless Scaling Receiver
- • Lossless fiber optic scaling receiver for HDMI, audio, and control
- • 20 km (12.4 miles) over singlemode fiber
- • Scales to fixed output resolutions up to 4096x2160 at 60 Hz, or bypass mode
- • Bidirectional RS-232 and IR control pass-through
- • Digital HDMI-embedded or analog stereo audio output
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron FOX3 SR 201 SM (part number 60-1600-22) is a lossless fiber optic scaling receiver for HDMI, stereo audio, and RS-232/IR control, built to pair with an Extron FOX3 T 201 transmitter or a FOX3 Matrix fiber switcher over singlemode cable.
Unlike the non-scaling FOX3 R-series, the SR 201's built-in scaler lets it output any of a wide range of fixed resolutions -- from 640x480 up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling -- or run in bypass mode to pass the source resolution unchanged. HDMI 2.0 input is HDCP 2.3 compliant with a maximum data rate of 18.0 Gbps. Audio de-embeds to a digital HDMI-embedded output or a 3.5 mm analog stereo connector, and bidirectional RS-232 plus IR control pass through to remote devices over the same fiber link. Configuration runs through a front panel USB-B port over Ethernet-over-USB, with full monitoring and control also available over the rear RJ-45 Ethernet port using Extron SIS commands. This lossless variant uses 1 SFP (mathematically lossless 4K/60 over one fiber), giving a maximum channel data rate of 10.0 Gbps (1 fiber). Power is external, converting 100-240 VAC to a 12 VDC, 2.0 A (24 W) output.
Key Capabilities
- Built-in scaler outputs fixed resolutions up to 4096x2160 at 60 Hz, or passes source resolution in bypass mode
- 20 km (12.4 miles) on singlemode fiber
- Bidirectional RS-232 and IR pass-through control
- Digital or analog stereo audio output
- Half-rack metal enclosure with optional rack shelf or under-desk mount
Where It Is Used
Conference rooms and room displays with a fixed native resolution that differs from the source specify the SR 201 to scale incoming HDMI signals to match the display, while extending RS-232 and IR control over the same fiber run.
Specifications at a Glance
- Optical link: 1 SFP (mathematically lossless 4K/60 over one fiber), 1 LC connector, 20 km (12.4 miles)
- Video output: 1 HDMI, scaled or bypass, up to 4096x2160 at 60 Hz 4:4:4
- Enclosure: 1.0" H x 8.75" W x 8.0" D (half rack wide)
- Power: external, 12 VDC 2.0 A (24 W)
Also referenced as Extron FOX3SR201SM, FOX3-SR-201-SM, part number 60160022.
Specifications
Specifications

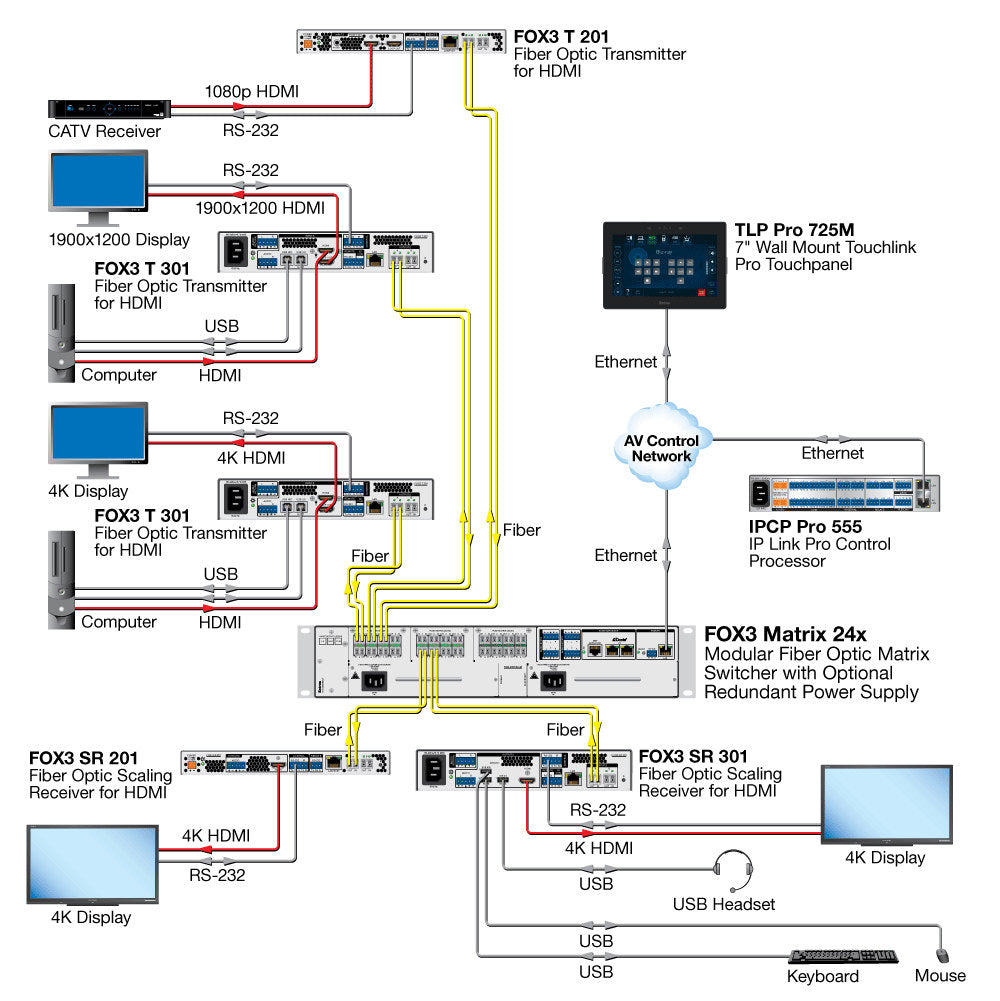

Diagram
