Extron FOX3 R 311 MM 60-1523-23 Uncompressed Receiver
- • Uncompressed fiber optic receiver for HDMI, USB HID, audio, and control
- • 500 m (1640 feet) over multimode fiber
- • 4096x2160 at 60 Hz, 4:4:4 chroma, up to 12-bit color (2-fiber uncompressed)
- • 2-port USB HID with factory-locked device class filtering
- • Bidirectional RS-232 and IR control pass-through
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

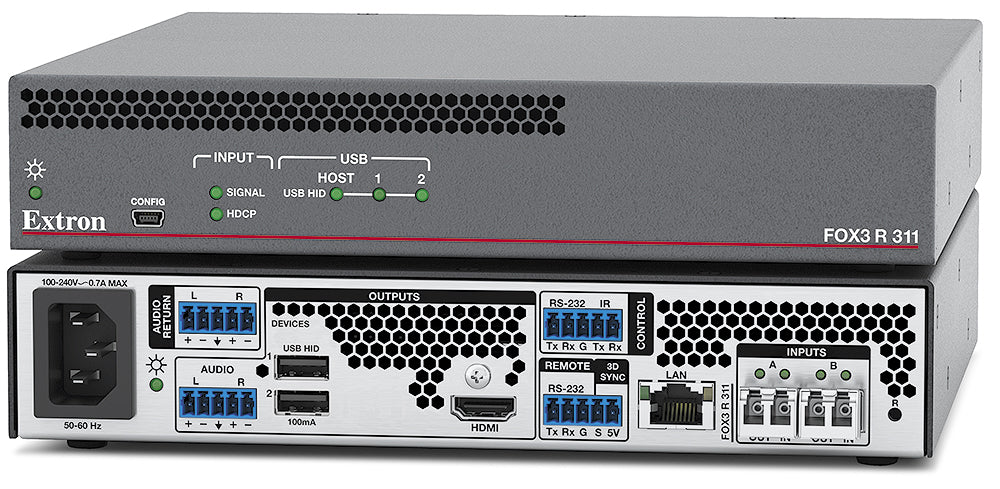

Extron FOX3 R 311 MM (part number 60-1523-23) is an uncompressed fiber optic receiver for HDMI, USB HID, stereo audio, RS-232/IR control, and 3D sync, built to pair with an Extron FOX3 T 311 transmitter or a FOX3 Matrix fiber switcher over multimode cable.
The R 311 recovers 4K/60 4:4:4 video up to 4096x2160 through a single female HDMI output, de-embeds stereo audio to HDMI or a 3.5 mm analog connector, and passes through bidirectional RS-232 and IR control to remote devices. Two USB type-A HID ports extend keyboard, mouse, and other HID-class peripherals back to the source, with device class filtering fixed at the factory so the port cannot be reconfigured for mass storage or other USB classes in the field. Configuration runs through a front panel USB-B port over Ethernet-over-USB, and the rear RJ-45 Ethernet port supports full monitoring and control using Extron SIS commands or Extron Product Configuration Software. This uncompressed variant uses 2 SFPs (uncompressed 4K/60 over two fibers), giving a maximum channel data rate of 20.0 Gbps (2 fibers).
Key Capabilities
- Recovers 4K/60 4:4:4 HDMI video, stereo audio, and USB HID over fiber
- 500 m (1640 feet) on multimode fiber
- Bidirectional RS-232 and IR pass-through control
- Device class filtering locks USB ports to HID for secure environments
- Half-rack metal enclosure with optional rack shelf or under-desk mount
Where It Is Used
KVM extension for secure workstations, command centers, and control rooms that need HDMI, HID peripherals, and RS-232/IR device control delivered together over a single fiber run specify the R 311 alongside a matching FOX3 T 311 transmitter or FOX3 Matrix frame.
Specifications at a Glance
- Optical link: 2 SFPs (uncompressed 4K/60 over two fibers), 2 LC connectors, 500 m (1640 feet)
- Video output: 1 HDMI, up to 4096x2160 at 60 Hz 4:4:4
- Enclosure: 1.7" H x 8.75" W x 8.5" D (half rack wide)
- Power: internal 100-240 VAC, 24.4 W
Also referenced as Extron FOX3R311MM, FOX3-R-311-MM, part number 60152323.
