Extron FOX3 Matrix 80x IPCP Pro
- • Scales from 8x8 to 80x80 with modular I/O boards
- • Integrated IPCP Pro Q xi control card with dedicated AV LAN port
- • Redundant hot-swappable power supplies standard
- • Routes 4K/60 4:4:4 video, audio, USB, and control over fiber
- • Dante/AES-67 audio transport plus DMP expansion port
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

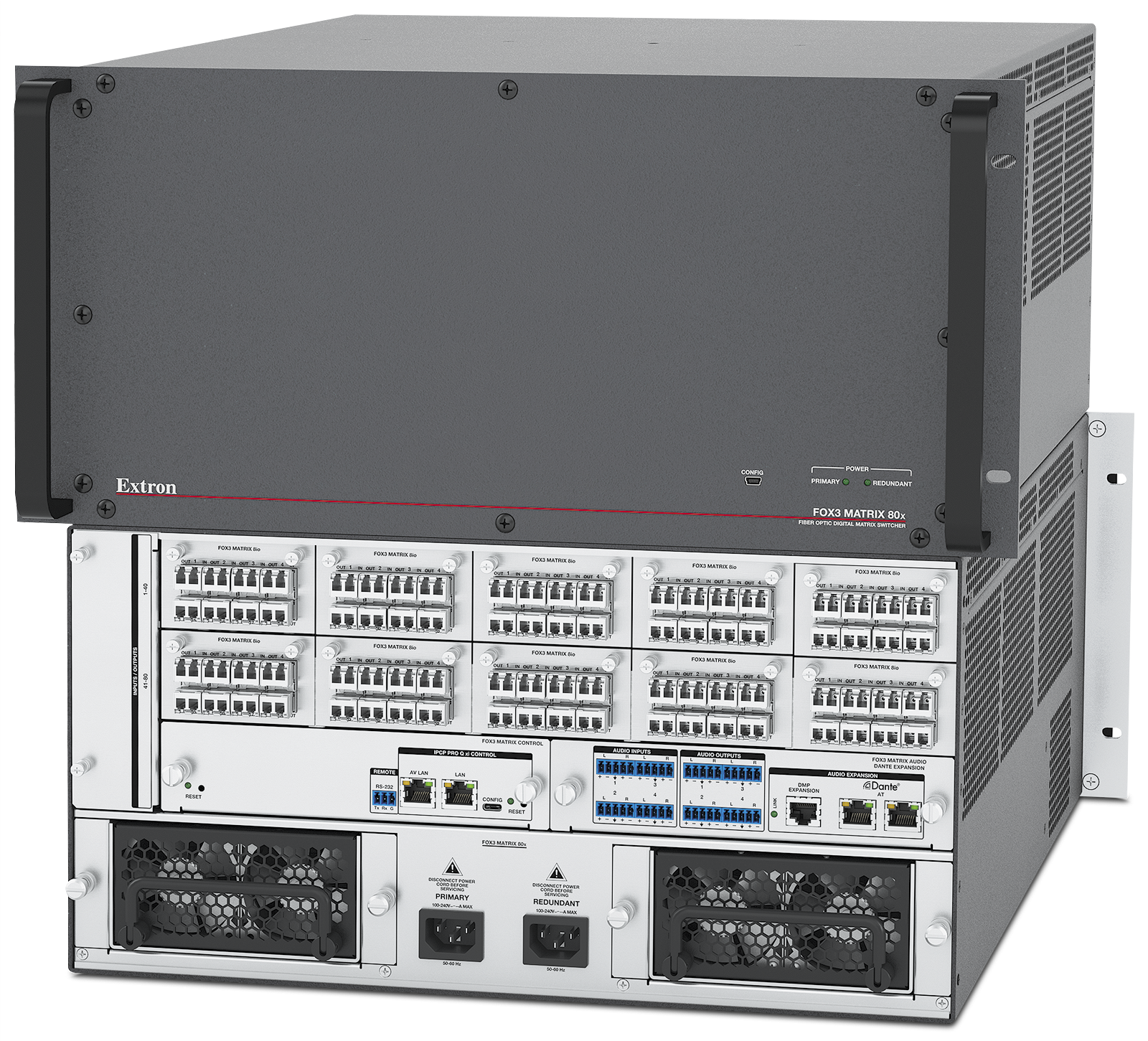

Extron FOX3 Matrix 80x IPCP Pro (part number 60-1553-12) — a modular fiber optic matrix switcher scalable to 8x8 up to 80x80, distributing 4K/60 4:4:4 video, audio, USB, and control over fiber.
Built from individual 8-in by 8-out I/O boards, the FOX3 Matrix 80x IPCP Pro routes uncompressed or mathematically lossless 4K/60 signals between any combination of Extron FOX3 transmitters and receivers, while embedding stereo audio, RS-232, USB, and 3D sync onto the same fiber link. This IPCP Pro variant integrates an Extron IPCP Pro Q xi control card with a dedicated AV LAN port, a standard Ethernet LAN port, and a local USB-C configuration port, isolating control traffic from the AV network. Redundant hot-swappable power supplies are standard. Power connects through an IEC 60320 C14, 100-240 VAC, 50-60 Hz inlet, and the frame cools with a right-to-left fan assembly rated for continuous operation.
Key Capabilities
- Modular I/O boards scale the matrix up to 8x8 up to 80x80, mixing multimode and singlemode as needed
- Routes 4K/60 4:4:4 video, audio, USB 2.0, USB HID, RS-232, and 3D sync per fiber link
- Dante/AES-67 audio transport plus local analog audio inputs and outputs
- Hot-swappable I/O boards, fans, and power supplies for field service without downtime
- Ethernet, RS-232, and front panel USB control with Extron SIS and PCS software
Where It Is Used
Mid-size command centers, broadcast facilities, and higher-education AV backbones specify the 80x IPCP Pro to route 4K/60 video, audio, USB, and control to dozens of endpoints from a single frame with integrated, network-isolated control.
Specifications at a Glance
- I/O size: 8x8 up to 80x80
- Enclosure: 8.72" H x 17.0" W x 20.0" D (5U, full rack wide), 60 lbs (27 kg) fully loaded
- Power: IEC 60320 C14, 100-240 VAC, 50-60 Hz
- Warranty: 3 years parts and labor
Also referenced as Extron FOX3Matrix80xIPCPPro, FOX3-Matrix-80x-IPCP-Pro, part number 60155312.
Specifications
Specifications

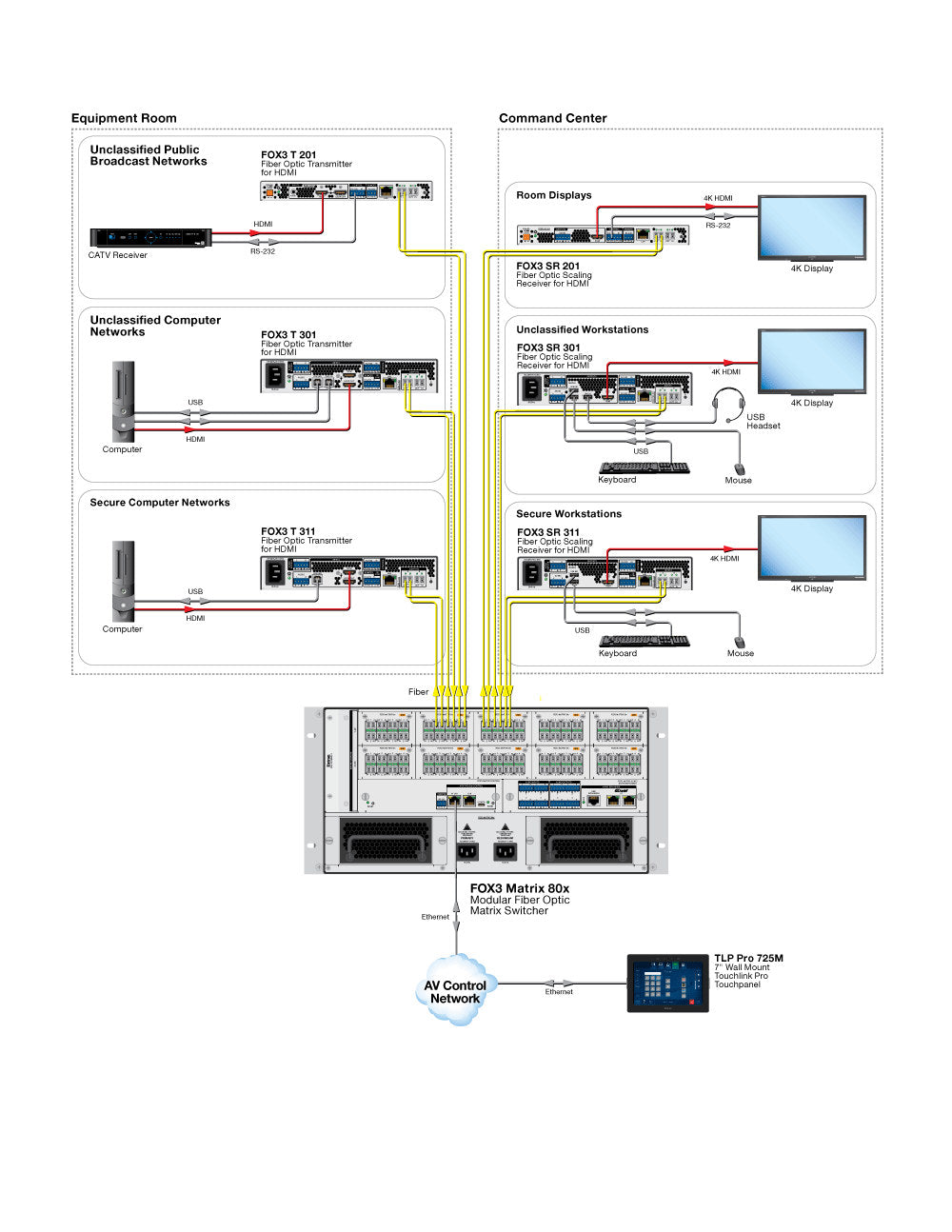

Diagram
