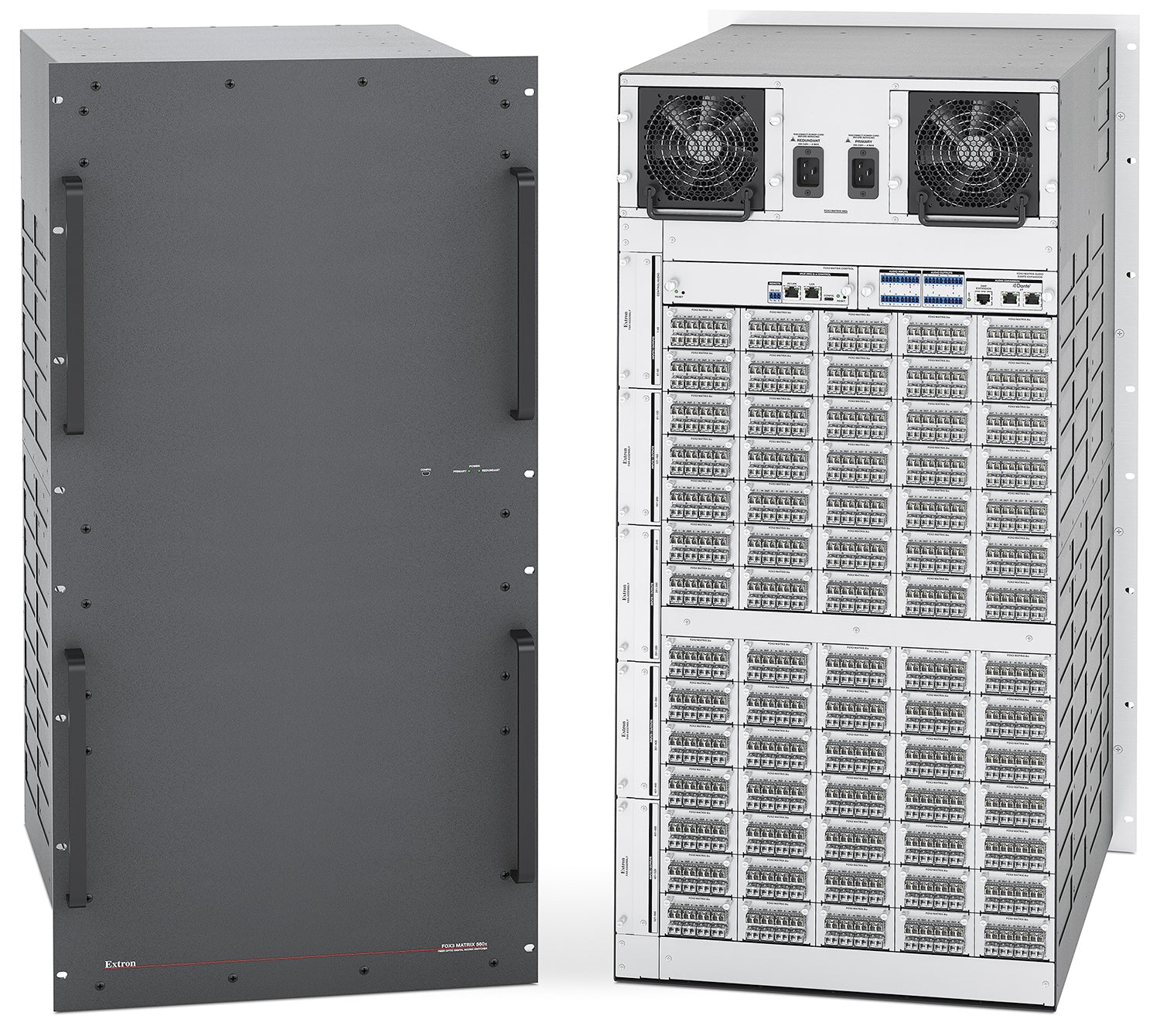

Extron FOX3 Matrix 560x IPCP Pro 60-1978-12

Details

Extron FOX3 Matrix 560x IPCP Pro (part number 60-1978-12) — a modular fiber optic matrix switcher scalable to 8x8 up to 560x560, distributing 4K/60 4:4:4 video, audio, USB, and control over fiber.

Built from individual 8-in by 8-out I/O boards, the FOX3 Matrix 560x IPCP Pro routes uncompressed or mathematically lossless 4K/60 signals between any combination of Extron FOX3 transmitters and receivers, while embedding stereo audio, RS-232, USB, and 3D sync onto the same fiber link. An integrated Extron IPCP Pro Q xi control card is standard on this large-frame chassis, with a dedicated AV LAN port, a standard Ethernet LAN port, and a local USB-C configuration port isolating control traffic from the AV network. Redundant hot-swappable power supplies are standard on a high-current 200-240 VAC circuit sized for a fully loaded 70-board frame. Power connects through an IEC 60320 C20, 200-240 VAC, 50-60 Hz inlet, and the frame cools with a right-to-left fan assembly rated for continuous operation.

Key Capabilities

Modular I/O boards scale the matrix up to 8x8 up to 560x560, mixing multimode and singlemode as needed
Routes 4K/60 4:4:4 video, audio, USB 2.0, USB HID, RS-232, and 3D sync per fiber link
Dante/AES-67 audio transport plus local analog audio inputs and outputs
Hot-swappable I/O boards, fans, and power supplies for field service without downtime
Ethernet, RS-232, and front panel USB control with Extron SIS and PCS software

Where It Is Used

Stadiums, broadcast master control, and government command centers with hundreds of fiber endpoints specify the 560x IPCP Pro to route 4K/60 video, audio, USB, and control from a single, densely populated frame with network-isolated control.

Specifications at a Glance

I/O size: 8x8 up to 560x560
Enclosure: 38.47" H x 19.0" W x 22.0" D (21U, full rack wide, no EMI shield), 380 lbs (172 kg) fully loaded
Power: IEC 60320 C20, 200-240 VAC, 50-60 Hz
Warranty: 3 years parts and labor

Also referenced as Extron FOX3Matrix560xIPCPPro, FOX3-Matrix-560x-IPCP-Pro, part number 60197812.

Specifications

Part Number: 60-1978-12

Manufacturer: Extron

Model: FOX3 Matrix 560x IPCP Pro

Condition: New

Max Resolution: 4096 x 2160 at 60 Hz (mathematically lossless over one fiber, or uncompressed over two fibers)

Chroma Sampling: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, or 12 bits per color

Frame Rate: 24, 25, 30, 50, or 60 fps

Video Signal Type: HDMI 2.0, HDCP 2.3

Max Video Data Rate: 18.0 Gbps

Optical Number/Type: 8 singlemode or 8 multimode SFPs per board

Optical Connectors: 16 LC connectors per I/O board

Signal Type: 8 to 560 fiber optic signals

Routing: 8x8 up to 560x560 unidirectional, or 4x4 up to 280x280 bidirectional

Operating Distance, Singlemode: 20 km (12.4 miles) with singlemode (SM) cables

Operating Distance, Multimode: 500 m (1640 feet) with 50 micron OM4 4700 MHz laser-optimized multimode cables

Nominal Peak Wavelength: 850 nm (multimode), 1310 nm (singlemode)

Transmission Power, Singlemode: -5.2 dBm, minimum

Transmission Power, Multimode: -2.8 dBm, minimum

Receiver Sensitivity, Singlemode: -12.6 dBm, maximum

Receiver Sensitivity, Multimode: -11.1 dBm, maximum

Optical Loss Budget, Singlemode: +7.4 dB, maximum

Optical Loss Budget, Multimode: +8.3 dB, maximum

Maximum Channel Data Rate: 10 Gbps

Audio I/O Board: 4 analog stereo inputs / 4 analog stereo outputs, balanced/unbalanced, 8 3.5 mm captive screw connectors

Audio Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

Audio THD + Noise: <0.1% at 20 Hz to 20 kHz, nominal level

Audio S/N: >90 dB at maximum output, unweighted

Audio Crosstalk: <=-80 dB at 1 kHz, fully loaded

Audio Bit Depth / Sampling Rate: 16, 20, 24 bit / 48 kHz

Dante Audio Transport: 2 RJ-45 ports, up to 32 stereo channels in and 32 stereo channels out, 24-bit uncompressed at 48 kHz

EXP Port: 1 RJ-45, 8 stereo channels Rx / 8 stereo channels Tx, uncompressed 24-bit 48 kHz, shielded CAT6 up to 10 m

Control Processor: Integrated IPCP Pro Q xi card, 2 GB SDRAM, 8 GB Flash

Control Software: Global Configurator Plus/Professional, Global Scripter, Extron Control, GlobalViewer Enterprise

Network Interfaces: 2 NICs (1 LAN, 1 AV LAN), 2 female RJ-45, 10/100/1000Base-T

Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw, 3-pole

USB Configuration Port: 1 rear panel USB-C, Ethernet over USB

Power Supply: Internal, IEC 60320 C20 inlet; North America: 200-240 VAC, 50-60 Hz, 15 A; redundant supply standard

Power Consumption: Enclosure without boards: 253.4 W; each multimode board: 20.1 W; each singlemode board: 23.1 W; fully loaded 70 MM boards: 1634.1 W; fully loaded 70 SM boards: 1658.2 W

Thermal Dissipation, Full Load: Multimode: 5577.2 BTU/hr; Singlemode: 5659.4 BTU/hr

Enclosure Dimensions: 38.47" H x 19.0" W x 22.0" D, no EMI shield (21U, full rack wide)

Product Weight, Fully Loaded: 380 lbs (172 kg)

Ambient Temperature/Humidity: Storage: -40 to 158 F (-40 to 70 C); Operating: +32 to 122 F (0 to 50 C), 10-90% noncondensing

Cooling: Fan, right to left as viewed from front panel

Rack Mount: Yes

Enclosure Type: Metal

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with RoHS, WEEE

Product Warranty: 3 years parts and labor

Diagram

Resources

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix 560x (fox3_matrix_560x_vA1.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Systems (fox3_matrix_series_vA5.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix 560x (FOX3-Matrix-560x_BR_A4_FR_RevA1.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix 560x (FOX3-Matrix-560x_BR_A4_GE_RevA1.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix 560x (FOX3-Matrix-560x_BR_A4_IT_RevA1.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix 560x (FOX3-Matrix-560x_BR_A4_SP_RevA1.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix 560x (FOX3_Matrix_560x_Rev_A_CN_Online.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)

Brochure | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)

Manual | FOX3 Matrix 560x IPCP Pro 60-1978-12 | Control Systems Network Ports, Protocols, and Licenses

Manual | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix Security Configuration Setup Guide

Manual | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix Series EMI Shield Installation Guide

Manual | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix Series Setup Guide

Manual | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix Series User Guide

Manual | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix System Map Setup Guide

Manual | FOX3 Matrix 560x IPCP Pro 60-1978-12 | IPCP Pro Q xi and xi Series Setup Guide

Manual | FOX3 Matrix 560x IPCP Pro 60-1978-12 | IPCP Pro Q xi and xi Series User Guide

Specifications | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix 560x

Panel Drawing | FOX3 Matrix 560x IPCP Pro 60-1978-12 | FOX3 Matrix 560x

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron FOX3 Matrix 560x IPCP Pro Fiber Matrix Switcher 60-1978-12

Name: Extron FOX3 Matrix 560x IPCP Pro Fiber Matrix Switcher 60-1978-12
Brand: Extron
SKU: EXTRON-FOX3MATRIX560XIPCPPRO-60197812
Availability: InStock

Manufacturer: Extron

Type: Fiber Optics

Extron FOX3 Matrix 560x IPCP Pro

• Scales from 8x8 to 560x560 across up to 70 I/O boards
• Integrated IPCP Pro Q xi control card with dedicated AV LAN port
• Redundant hot-swappable power supplies on 200-240 VAC C20 input
• Routes 4K/60 4:4:4 video, audio, USB, and control over fiber
• Dante/AES-67 audio transport plus DMP expansion port
