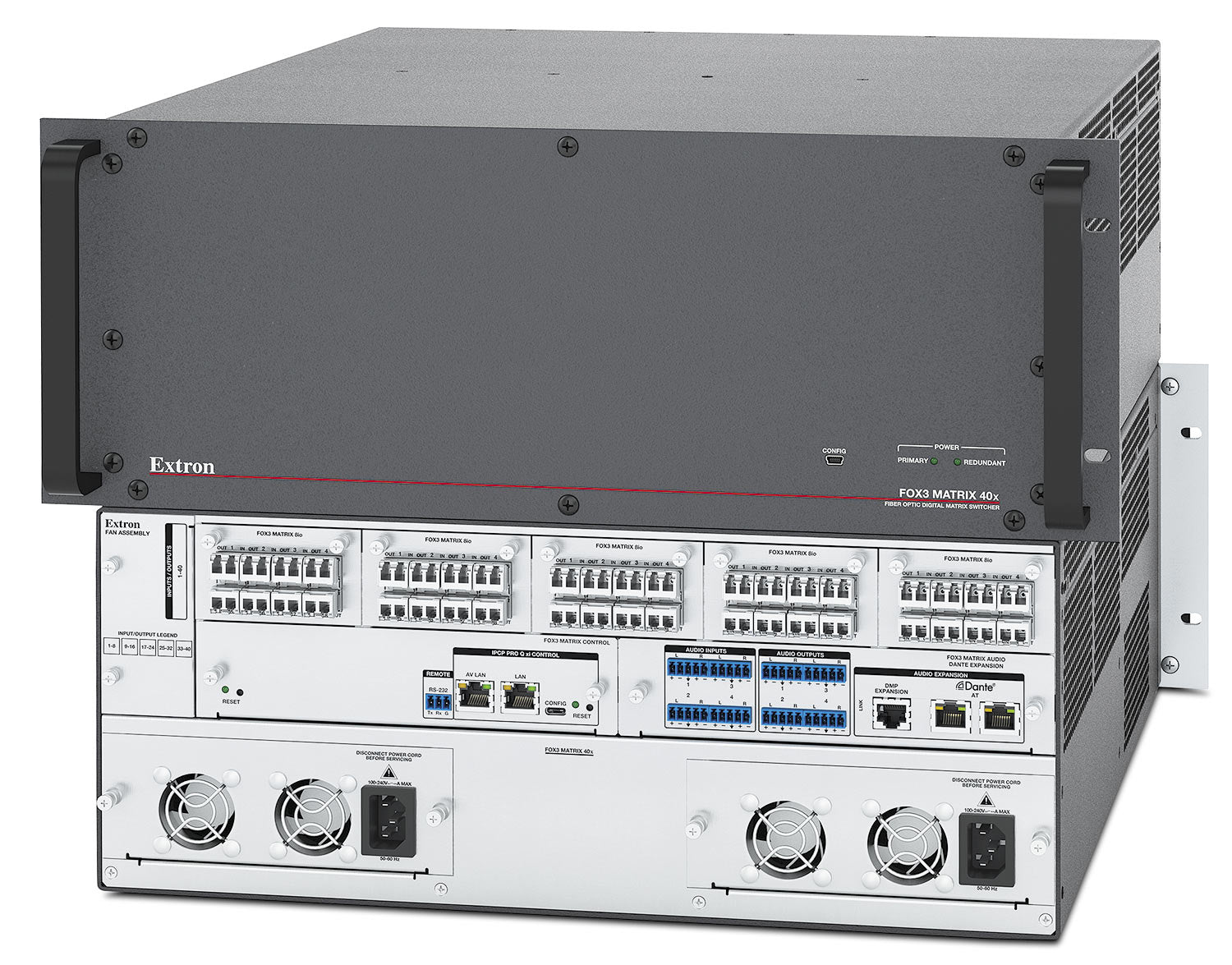

Extron FOX3 Matrix 40x IPCP Pro (part number 60-1576-12) — 4U modular fiber optic matrix frame with an Extron control processor built in.

Five board slots, each holding a FOX3 I/O 88 board with eight LC fiber ports, take this switcher from 8x8 to 40x40. Boards are hot-swappable, so capacity can be added to a live system, and multimode and singlemode boards can share the same chassis - useful when a short in-building link has to hand off to a long singlemode run. Video, audio, USB, RS-232 and 3D sync all share the same fiber pairs, which removes the need for separate USB extenders or extra network drops.

Key Capabilities

Routes 4K at 60 Hz with 4:4:4 chroma over HDMI 2.0 and HDCP 2.3, 18.0 Gbps maximum video data rate
8x8 to 40x40 unidirectional, or 4x4 to 20x20 bidirectional when ports are linked
Integrated IPCP Pro Q xi processor with a dedicated AV LAN port, standard LAN port and USB-C configuration port
Two Dante ports carrying up to 32 stereo channels each way, plus a DMP expansion port
Priority Switching across six security levels and Secure Partitioning into up to six sub-switchers
Redundant internal power supply as standard; 66 watts empty, 174 watts with five singlemode boards

Where It Is Used

The 40x is the small-frame member of the FOX3 matrix family, aimed at installations that need the same security model and 4K performance as the large frames but only a few dozen ports: departmental command posts, operating theatre and imaging suites, courtrooms, broadcast galleries and campus AV hubs.

Specifications at a Glance

Optical: 8 SFPs and 16 LC connectors per board, 10 Gbps maximum channel data rate
Distance: 20 km singlemode, 500 m on 50 µm OM4 multimode
Power: internal supply on an IEC 60320 C14 inlet, 100-240 VAC, 50-60 Hz
Enclosure: 7.0" H x 17.0" W x 20.0" D, 4U full rack width, 45 lbs (20 kg) fully loaded
Warranty: 3 years parts and labor

Also referenced as Extron FOX3Matrix40xIPCPPro, FOX3-Matrix-40x-IPCP-Pro, part number 60157612.

Specifications

Part Number: 60-1576-12

Manufacturer: Extron

Model: FOX3 Matrix 40x IPCP Pro

Condition: New

Device Type: Modular fiber optic matrix switcher frame with integrated IPCP Pro control processor; 5 I/O board slots

Maximum Resolution and Refresh Rate: 4096 x 2160 at 60 Hz

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, or 12 bits per color

Signal Type: HDMI 2.0, HDCP 2.3

Maximum Video Data Rate: 18.0 Gbps

HDMI Protocol Exceptions: CEC signaling is not supported; Ethernet signal transport is not supported (HDMI pin 14 not connected); Audio Return Channel is not supported

Laser Safety: Contains Class 1 laser; meets IEC 60825-1, FDA 21 CFR 1040.10 and FDA 21 CFR 1040.11

Optical Ports Per Board: 8 singlemode or 8 multimode SFPs per board

Optical Connectors: 16 LC connectors per I/O board

Optical Signal Capacity: 8 to 40 fiber optic signals

Routing: 8 x 8 up to 40 x 40 unidirectional matrix, or 4 x 4 up to 20 x 20 bidirectional matrix

Operating Distance, Singlemode: 20 km (12.4 miles) with singlemode (SM) cables

Operating Distance, Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables; OM1, OM2 and OM3 fiber work at reduced distances

Nominal Peak Wavelength: 850 nm for multimode (MM), 1310 nm for singlemode (SM)

Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power: Singlemode: -5.2 dBm, minimum. Multimode: -2.8 dBm, minimum

Receiver Sensitivity: Singlemode: -12.6 dBm, maximum. Multimode: -11.1 dBm, maximum

Optical Loss Budget: Singlemode: +7.4 dB, maximum. Multimode: +8.3 dB, maximum

Maximum Channel Data Rate: 10 Gbps

Audio I/O Board: 4 analog stereo inputs and 4 analog stereo outputs, balanced/unbalanced

Audio Connectors: (8) 3.5 mm captive screw connector, 5 pole

Audio Source Formats: 2 channel LPCM

Audio Input Impedance: ≥10 k ohms unbalanced, ≥20 k ohms balanced

Audio Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Audio Gain Range: Adjustable, -18 dB to +24 dB, 1 dB steps

Audio Gain: Unbalanced output: -6 dB; balanced output: 0 dB (default)

Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: <0.1% @ 20 Hz to 20 kHz at nominal level

S/N: >90 dB at maximum output (unweighted)

CMRR: 65 dB @ 20 Hz to 20 kHz

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced (analog only)

Gain Error: ±0.5 dB channel to channel

Volume Control Range: -100 dB to 0 dB (0-100 in 1 dB steps)

Audio Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

Stereo Channel Separation: >80 dB @ 1 kHz

Audio Bit Depth: 16, 20, 24

Audio Sampling Rate: 48 kHz

Dante AT Ports: 2 RJ-45 to Dante interface; Dante/AES-67, software selectable

Dante Channels: Up to 32 stereo channels in, up to 32 stereo channels out

Dante Audio Format: 24 bit uncompressed at 48 kHz sampling rate

Dante Latency: Deterministic: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms

EXP Port: 1 RJ-45, proprietary transmission; 8 stereo channels Rx and 8 stereo channels Tx; uncompressed 24-bit, 48 kHz

EXP Cable: Shielded CAT6 up to 10 meters

USB Configuration Port: 1 front panel mini USB B, female; Ethernet over USB

USB Host Ports: 1-port USB HID and 1-port USB 2.0; 0 connectors (virtual USB)

USB 2.0 Built-In Hubs: Maximum 1, minimum 1

USB HID Built-In Hubs: Maximum 0, minimum 0

Serial Control Port: 1 RS-232, 3.5 mm captive screw connector, 3-pole, female, rear panel

Baud Rate and Protocol: 300 to 115200 baud (default: 9600), 8 data bits, 1 stop bit, no parity

Serial Control Pin Configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND

Ethernet Port: 1 RJ-45 connector, female

Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect

Ethernet Protocols: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP

Ethernet Default Settings: IP address 192.168.254.254; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; link speed and duplex autodetected

Web Server: Up to 200 simultaneous sessions; 7.0 MB non-volatile memory

Configuration Software: Product Configuration Software (PCS)

Utilities: Toolbelt, embedded web page

Program Control: Extron Product Configuration Software; Extron Simple Instruction Set (SIS)

Integrated Control Processor: Extron IPCP Pro Q xi with dedicated AV LAN port, standard Ethernet LAN port and local USB-C configuration port

Power Supply: Internal (IEC 60320 C14 inlet); input 100-240 VAC, 50-60 Hz. A redundant power supply is standard

Power Consumption: Enclosure without boards: 66 watts. Fully loaded with 5 MM boards: 157 watts. Fully loaded with 5 SM boards: 174 watts. Each MM board: 20.1 watts. Each SM board: 23.1 watts

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Fan, right to left (as viewed from front panel)

Thermal Dissipation, Full Load: MM: 535 BTU/hr. SM: 594 BTU/hr

Rack Mount: Yes

Enclosure Type: Metal

Enclosure Dimensions: 7.0" H x 17.0" W x 20.0" D (4U high, full rack wide) (17.8 cm H x 43.2 cm W x 50.8 cm D); depth excludes connectors and handles, width excludes rack ears

Product Weight (Fully Loaded): 45 lbs (20 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with the appropriate requirements of RoHS, WEEE

Product Warranty: 3 years parts and labor

Diagram

Resources

Brochure | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Systems (fox3_matrix_series_vA5.pdf)

Brochure | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)

Brochure | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)

Brochure | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)

Brochure | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)

Brochure | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)

Brochure | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | Cleaning Instruction Card

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | Control Systems Network Ports, Protocols, and Licenses

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Matrix Security Configuration Setup Guide

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Matrix Series Modules Installation Guide

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Matrix Series Setup Guide

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Matrix Series User Guide

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Matrix System Map Setup Guide

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | IPCP Pro Q xi and xi Series Setup Guide

Manual | FOX3 Matrix 40x IPCP Pro 60-1576-12 | IPCP Pro Q xi and xi Series User Guide

Specifications | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Matrix 40x

Panel Drawing | FOX3 Matrix 40x IPCP Pro 60-1576-12 | FOX3 Matrix 40x
