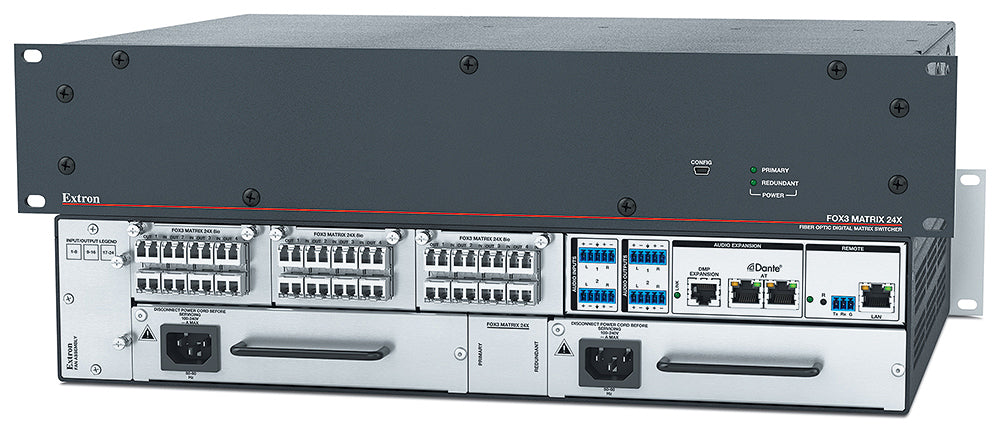

Extron FOX3 Matrix 24x no FPC 24io SM 60-1716-16

Details

Extron FOX3 Matrix 24x no FPC 24io SM (part number 60-1716-16) — a factory-configured Extron FOX3 Matrix 24x fiber optic matrix switcher, populated with 3 of 3 possible I/O board slots for a fixed 24x24 singlemode configuration.

Extron builds the FOX3 Matrix 24x chassis around 8-in by 8-out singlemode I/O boards; this SKU ships with 3 boards installed, giving a ready-to-deploy 24x24 matrix without requiring the integrator to populate empty slots later. The frame routes 4K/60 4:4:4 video, audio, USB 2.0, USB HID, RS-232, and 3D sync over singlemode fiber to a reach of 20 km (12.4 miles) on singlemode fiber, and additional singlemode or opposite-type boards can be added in the field up to the chassis maximum of 24x24.

Key Capabilities

Ships factory-configured as a 24x24 singlemode matrix, 3 of 3 I/O board slots populated
Routes 4K/60 4:4:4 video, audio, USB 2.0, USB HID, RS-232, and 3D sync per fiber link
20 km (12.4 miles) on singlemode fiber
Dante/AES-67 audio transport plus local analog audio inputs and outputs
Expandable in the field up to the FOX3 Matrix 24x maximum of 24x24

Where It Is Used

Smaller command rooms, classrooms, and single-facility AV backbones that need a ready-built 24x24 fiber matrix specify this configured SKU rather than ordering a bare frame and I/O boards separately, cutting commissioning time for a fixed switching requirement.

Specifications at a Glance

Shipped configuration: 24x24 singlemode (3 of 3 I/O board slots)
Enclosure: 3.5" H x 17.0" W x 13.0" D (2U, full rack wide)
Power: IEC 60320 C14, 100-240 VAC, 50-60 Hz
Warranty: 3 years parts and labor

Fully populated with all 3 I/O boards, this configuration matches Extron's published fully-loaded power draw of 95 W (singlemode) and 17 lbs (7.7 kg) shipping weight for the 24x frame.

Also referenced as Extron FOX3Matrix24xnoFPC24ioSM, FOX3-Matrix-24x-no-FPC-24io-SM, part number 60171616.

Specifications

Part Number: 60-1716-16

Manufacturer: Extron

Model: FOX3 Matrix 24x no FPC 24io SM

Condition: New

Shipped Configuration: 24x24 singlemode, 3 of 3 I/O board slots populated

Optical Number/Type: 3 singlemode SFPs installed (of 8 possible per board)

Optical Connectors: 16 LC connectors per I/O board (48 LC total installed)

Chassis Maximum: Field-expandable up to 24x24 (3 of 3 I/O board slots)

Operating Distance: 20 km (12.4 miles) with singlemode (SM) cables

Nominal Peak Wavelength: 1310 nm

Transmission Power: -5.2 dBm, minimum

Receiver Sensitivity: -12.6 dBm, maximum

Optical Loss Budget: +7.4 dB, maximum

Maximum Channel Data Rate: 10 Gbps

Max Resolution: 4096 x 2160 at 60 Hz (mathematically lossless over one fiber, or uncompressed over two fibers)

Chroma Sampling: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, or 12 bits per color

Frame Rate: 24, 25, 30, 50, or 60 fps

Video Signal Type: HDMI 2.0, HDCP 2.3

Max Video Data Rate: 18.0 Gbps

Audio I/O Board: 2 analog stereo inputs / 2 analog stereo outputs, balanced/unbalanced, 4 3.5 mm captive screw connectors

Audio Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

Audio THD + Noise: <0.1% at 20 Hz to 20 kHz, nominal level

Audio S/N: >90 dB at maximum output, unweighted

Audio Crosstalk: <=-80 dB at 1 kHz, fully loaded

Audio Bit Depth / Sampling Rate: 16, 20, 24 bit / 48 kHz

Dante Audio Transport: 2 RJ-45 ports, up to 32 stereo channels in and 32 stereo channels out, 24-bit uncompressed at 48 kHz

EXP Port: 1 RJ-45, 8 stereo channels Rx / 8 stereo channels Tx, uncompressed 24-bit 48 kHz, shielded CAT6 up to 10 m

USB Configuration Port: 1 front panel mini USB B, Ethernet over USB

Serial Control Port: 1 RS-232, 3.5 mm captive screw, rear panel, 300-115200 baud (default 9600)

Ethernet Control: 1 RJ-45, 10/100/1000Base-T, default IP 192.168.254.254

Program Control: Extron Product Configuration Software (PCS), Extron SIS

Power Supply: Internal, IEC 60320 C14 inlet, 100-240 VAC, 50-60 Hz; redundant supply optional

Power Consumption Components: Enclosure baseline: 24 W; each multimode board: 20.1 W; each singlemode board: 23.1 W

Power Consumption, Fully Loaded: 95 W (3 singlemode boards)

Enclosure Dimensions: 3.5" H x 17.0" W x 13.0" D (2U, full rack wide)

Product Weight, Fully Loaded: 17 lbs (7.7 kg)

Ambient Temperature/Humidity: Storage: -40 to 158 F (-40 to 70 C); Operating: +32 to 122 F (0 to 50 C), 10-90% noncondensing

Cooling: Fan, right to left as viewed from front panel

Rack Mount: Yes

Enclosure Type: Metal

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with RoHS, WEEE

Product Warranty: 3 years parts and labor
