Extron FOX3 320x P/S Kit (part number 70-1119-04) — the hot-swappable replacement power supply module for the Extron FOX3 Matrix 320x fiber optic matrix switcher.

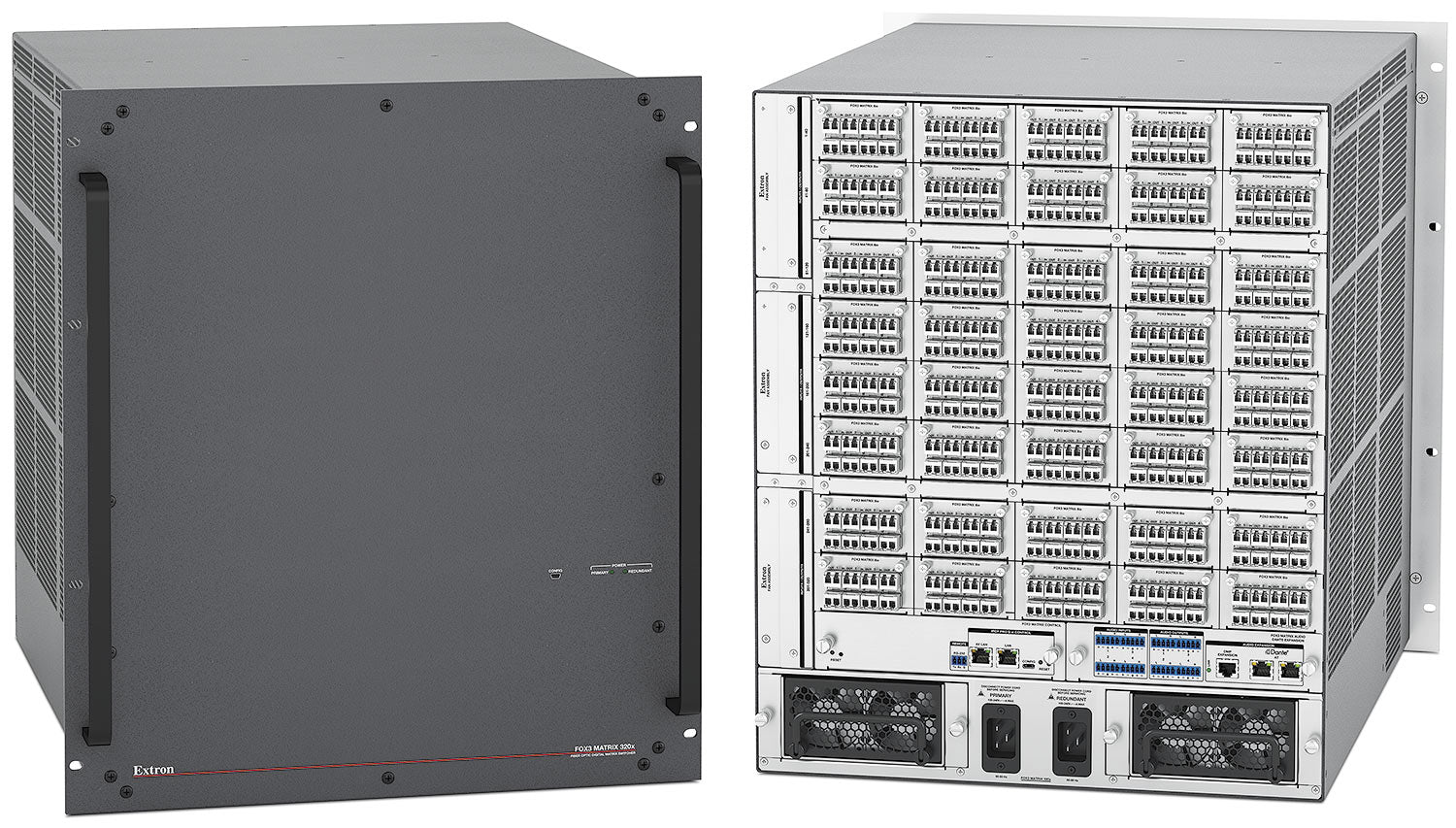

The FOX3 Matrix 320x is a 12U frame with redundant power supplies standard, drawing on a high-current IEC 60320 C20 inlet rather than the lighter C14 connector used on the smaller FOX3 Matrix frames. This kit supplies a direct replacement or spare unit for either the primary or redundant position, letting an integrator restore full redundancy after a supply failure or stock a spare ahead of a large-venue deployment without waiting on a service call.

Key Capabilities

• Hot-swappable, installs or replaces without powering down the FOX3 Matrix 320x
• High-current IEC 60320 C20 inlet sized for the 320x frame
• North America: 120 VAC 20 A or 240 VAC 15 A; other regions: 100-120 VAC 15 A minimum or 200-240 VAC 7 A minimum
• Matches either the primary or the standard redundant supply position
• Purpose-built for the FOX3 Matrix 320x frame only

Where It Is Used

Large-venue and enterprise deployments running a fully loaded FOX3 Matrix 320x — stadiums, campus AV backbones, and command centers — stock this kit to keep the mandatory redundant power configuration intact after a failure.

Specifications at a Glance

• Compatibility: FOX3 Matrix 320x chassis (8x8 up to 320x320) only
• Connector: IEC 60320 C20 inlet
• North America input: 120 VAC 20 A or 240 VAC 15 A
• Hot-swappable, tool-free installation

Extron ships the 320x with two of these supplies from the factory, splitting the load across the frame's 40 board slots; keeping a spare on hand avoids downtime if either unit trips a protection circuit during a fully loaded run.

Also referenced as Extron FOX3320xPSKit, FOX3-320x-P-S-Kit, part number 70111904.
