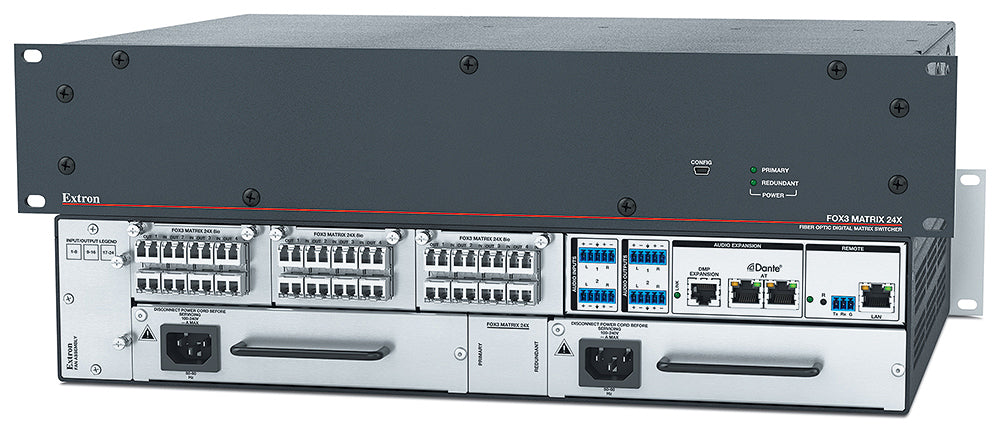

Extron FOX3 24x P/S Kit (part number 70-1119-03) — the hot-swappable power supply module for the Extron FOX3 Matrix 24x fiber optic matrix switcher.

The FOX3 Matrix 24x ships with one internal power supply as standard, and Extron offers a second, optional supply for sites that cannot tolerate an interruption. This kit is that second unit: a field-installable, hot-swappable 100-240 VAC power module that slides into the 24x chassis without powering the switcher down or dropping the 4K/60 video, audio, USB, and control signals already routed through it. Integrators typically add the kit during commissioning of a mission-critical room, or keep one on the shelf as a spare for a chassis already in service.

Key Capabilities

• Hot-swappable install or replacement, no power-down of the FOX3 Matrix 24x required
• Universal 100-240 VAC, 50-60 Hz input through an IEC 60320 C14 inlet
• Converts a standard single-supply 24x chassis into a redundant, dual-supply configuration
• Front panel LED reports power supply status once installed
• Purpose-built for the FOX3 Matrix 24x frame only, not interchangeable with other FOX3 Matrix models

Where It Is Used

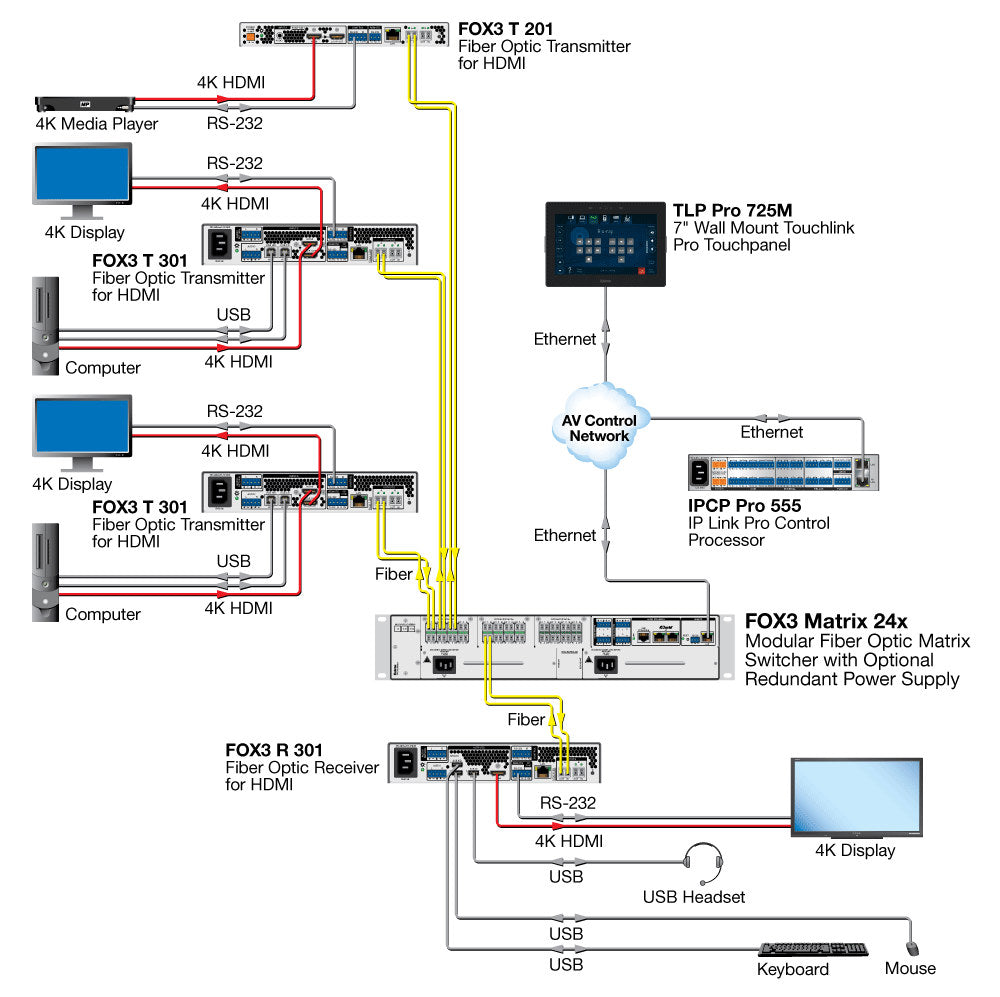

This kit is specified anywhere a FOX3 Matrix 24x carries continuous-uptime signal routing — command and control rooms, broadcast master control, and government or medical facilities where a single power supply failure cannot be allowed to interrupt video, USB, or control switching for the room.

Specifications at a Glance

• Compatibility: FOX3 Matrix 24x chassis (8x8 up to 24x24) only
• Input: 100-240 VAC, 50-60 Hz
• Connector: IEC 60320 C14 inlet
• Hot-swappable, tool-free installation

Also referenced as Extron FOX324xPSKit, FOX3-24x-P-S-Kit, part number 70111903.
