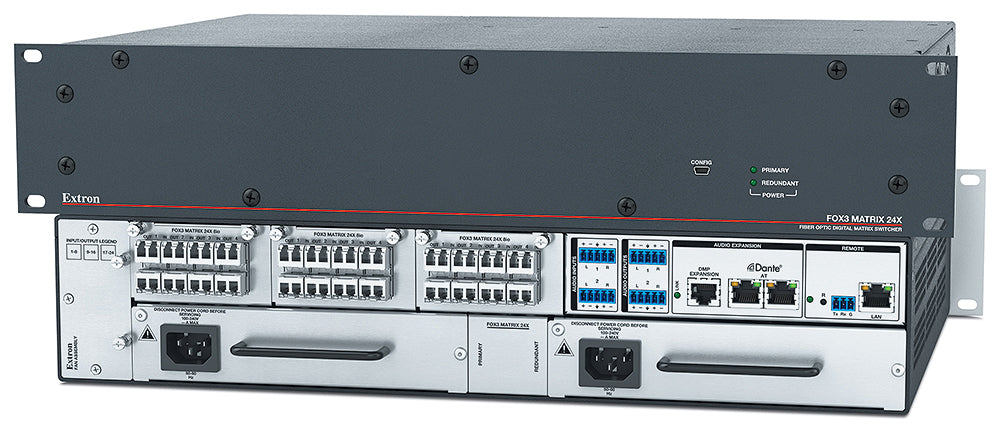

Part Number: 70-1120-03
Manufacturer: Extron
Condition: New
Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
Audio format: 24 bit uncompressed at 48 kHz sampling rate
Baud rate and protocol: 300 to 115200 baud (default: 9600), 8 data bits, 1 stop bit, no parity
Bit depth: 16, 20, 24
CMRR: 65 dB @ 20 Hz to 20 kHz
Chroma sampling3: 4:4:4, 4:2:2
Color bit depth2,3: 8, 10, or 12 bits per color
Configuration software: Product Configuration Software (PCS)
Connector: 1 RJ-45
Connectors: 16 LC connectors per I/O board
Cooling: Fan, right to left (as viewed from front panel)
Crosstalk: ≤-80 dB @ 1 kHz, fully loaded
Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off
EXP cable: Shielded CAT6 up to 10 meters
Enclosure dimensions: 3.5" H x 17.0" W x 13.0" D (2U high, full rack wide) (8.9 cm H x 43.2 cm W x 33.0 cm D) (Depth excludes connectors and handles. Width excludes rack ears.)
Enclosure type: Metal
Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect
Ethernet port: 1 RJ-45 connector, female
Frame rate3: 24, 25, 30, 50, or 60 fps
Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Gain: Unbalanced output: -6 dB; balanced output 0 dB (default)
Gain error: ± 0.5 dB channel to channel
Gain range: Adjustable, -18 dB to +24 dB, 1 dB steps
Impedance: ≥10 k ohms unbalanced, ≥20 k ohms balanced
Inputs: Up to 32 stereo channels
Latency: Deterministic, based on user selections: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms
Max. video data rate: 18.0 Gbps
Maximum built-in USB hubs: 1
Maximum channel data rate: 10 Gbps
Maximum level: +21 dBu balanced, +15 dBu unbalanced
Maximum level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced
Minimum built-in USB hubs: 1
Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables
Nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)
Nominal peak wavelength: 850 nm for multimode (MM), 1310 nm for singlemode (SM)
Number/signal type: 2 analog stereo inputs, balanced/unbalanced 2 analog stereo outputs, balanced/unbalanced
Number/type: 8 singlemode or 8 multimode SFPs per board
Output impedance: 50 ohms unbalanced, 100 ohms balanced (analog only)
Outputs: Up to 32 stereo channels
Power consumption: Enclosure without boards: 24 watts Enclosure fully loaded with 3 MM boards: 86 watts Enclosure fully loaded with 3 SM boards: 95 watts Each MM board: 20.1 watts Each SM board: 23.1 watts
Power supply: Internal (IEC 60320 C14 inlet)Input: 100-240 VAC, 50-60 HzA redundant power supply is optional.
Product warranty: 3 years parts and labor
Product weight (fully loaded): 17 lbs (7.7 kg)
Program control: Extron Product Configuration Software Extron Simple Instruction Set (SIS™)
Protocols: ARP, ICMP (Ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP
Rack mount: Yes
Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCIComplies with the appropriate requirements of RoHS, WEEE.
Routing: 8 x 8 up to 24 x 24 unidirectional matrix or 4 x 4 up to 12 x 12 bidirectional matrix
S/N: >90 dB at maximum output (unweighted)
Sampling rate: 48 kHz
Serial control pin configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND
Serial control port: 1 RS-232, 3.5 mm captive screw connector, 3-pole, female, rear panel
Signal Type: HDMI 2.0, HDCP 2.3
Singlemode: 20 km (12.4 miles) with singlemode (SM) cables
Source formats: 2 channel LPCM
Standard: Ethernet over USB
Stereo channel separation: >80 dB @ 1 kHz
THD + Noise: <0.1% @ 20 Hz to 20 kHz at nominal level
Thermal dissipation, full load: MM: 294 BTU/hrSM: 323 BTU/hr
Transmission type: Dante/AES-67, software selectable
Utilities: Toolbelt, embedded web page
Volume control range: -100 dB to 0 dB (0-100 in 1 dB steps)
Web server: Up to 200 simultaneous sessions7.0 MB non-volatile memory
