Extron FOX T USW 203 SM 3-Input HDMI Fiber Optic Transmitter
- • Singlemode fiber transmission over distances up to 30 km (18.75 miles)
- • 1310 nm wavelength with a 13 dB maximum singlemode optical loss budget
- • Three inputs: two HDMI plus one 15-pin HD analog RGB with VGA loop-out
- • Pixel-for-pixel transmission to 1920x1200 including HDTV 1080p/60
- • 4.25 Gbps optical data rate on two LC connectors
- • Local HDMI output mirrors the selected source to a nearby display
- • Embeds unbalanced stereo audio with -18 dB to +10 dB gain control
- • Half-rack metal enclosure, 1.75 in high, 8.0 W at 12 VDC
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

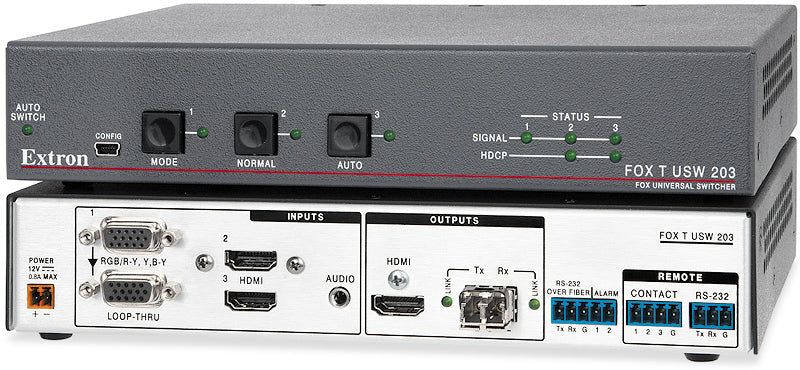

Extron FOX T USW 203 SM (part number 60-1230-12) — three-input switcher with a local HDMI output and an integrated singlemode fiber optic transmitter.
The singlemode version of the USW 203 is built for distance. Two HDMI sources and one analog RGB source feed the switcher; the selected signal goes to a local HDMI display and, at the same time, down two LC fibers at 4.25 Gbps to a receiver as far as 30 km away. Extron states that this SM model works with singlemode as well as multimode fiber at 1310 nm. Analog video is digitised on board, stereo audio from a 3.5 mm jack is embedded into the optical stream, and RS-232 rides over the same fiber.
Key Capabilities
- Singlemode operating distance of 30 km (18.75 miles) on LC singlemode cable
- 1310 nm wavelength with a 13 dB maximum singlemode optical loss budget
- Two female HDMI inputs plus one female 15-pin HD analog input with VGA loop-through
- Pixel-for-pixel handling to 1920x1200 and 1080p/60, with 2K 2048x1080 undersampled
- Audio embedding with adjustable gain from -18 dB to +10 dB at 48 kHz, 18-bit
- Half-rack metal enclosure, 1.75" high, drawing 8.0 watts at 12 VDC
Where It Is Used
Thirty kilometres of reach puts this transmitter in campus and inter-building work: airports, stadiums, university estates, utility and transport networks, and government or military sites where the fiber path leaves the building. Fiber also keeps the signal immune to outside electrical interference, which matters in medical and secure environments.
Specifications at a Glance
- Optical: 2 LC, 4.25 Gbps, 1310 nm singlemode, -18 dBm typical receiver sensitivity
- Video: 165 MHz maximum pixel clock, DVI 1.0, HDMI compliant, HDCP 1.1, CEA-861E
- Control: RS-232 control port, RS-232 over fiber pass-through, 4-pole contact closure
- Enclosure: 1.75" H x 8.75" W x 6.0" D half rack, 1.0 lb (0.3 kg)
- Warranty: 3 years parts and labor, 7 years on the Everlast power supply
Also referenced as Extron FOXTUSW203SM, FOX-T-USW-203-SM, part number 60123012.
