Extron FOX T USW 203 MM 3-Input HDMI Fiber Optic Transmitter
- • Three inputs: two HDMI plus one 15-pin HD analog RGB with VGA loop-out
- • Pixel-for-pixel transmission to 1920x1200 including HDTV 1080p/60
- • Multimode fiber reach of 2 km on OM3/OM4, 1 km on OM2, 300 m on OM1
- • 4.25 Gbps optical data rate on two LC connectors at 850 nm
- • Local HDMI output mirrors the selected source to a nearby display
- • Embeds unbalanced stereo audio with -18 dB to +10 dB gain control
- • EDID Minder and Key Minder keep sources and HDCP switching reliable
- • Half-rack metal enclosure, 1.75 in high, 8.0 W at 12 VDC
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

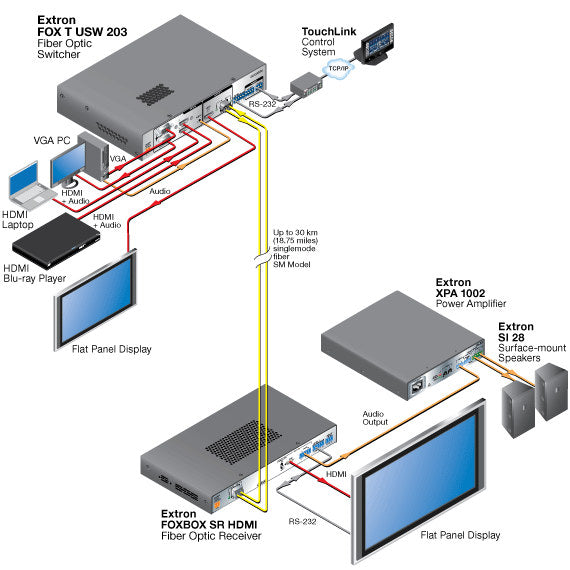

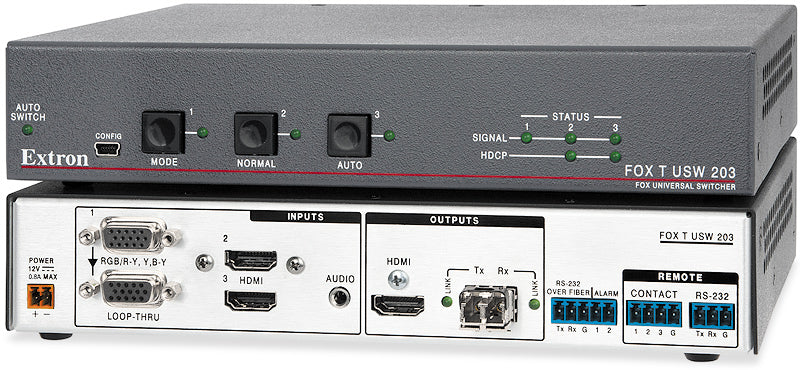

Extron FOX T USW 203 MM (part number 60-1230-11) — three-input switcher with a local HDMI output and a built-in multimode fiber optic transmitter.
One box does the job of three. It takes two HDMI sources and one analog RGB source, switches between them, mirrors the selection to a local HDMI display, and simultaneously drives the chosen signal down a pair of LC multimode fibers at 4.25 Gbps. Analog inputs are digitised inside the unit, stereo audio arriving on a 3.5 mm jack is embedded into the optical stream, and an RS-232 pass-through rides along with it. EDID Minder handles source handshaking and Key Minder keeps HDCP authenticated so switching stays quick.
Key Capabilities
- Three inputs: 2 female HDMI plus 1 female 15-pin HD analog RGB with VGA loop-through
- Pixel-for-pixel handling to 1920x1200 and 1080p/60, with 2K 2048x1080 undersampled
- Multimode reach of 300 m on OM1, 1 km on OM2 and 2 km on OM3/OM4 at 850 nm
- Embeds unbalanced stereo audio with adjustable gain from -18 dB to +10 dB
- RS-232 control plus RS-232 over fiber pass-through and a 4-pole contact closure port
- Half-rack metal enclosure, 1.75" high, drawing 8.0 watts at 12 VDC
Where It Is Used
Fiber transmission is inherently secure and immune to outside interference, which is why this switcher turns up in government, military and medical facilities. It also suits boardrooms, lecture theatres and control rooms that need a long, interference-free run to a projector or videowall, either point to point or feeding a FOX Series matrix switcher.
Specifications at a Glance
- Optical: 2 LC, 4.25 Gbps, 850 nm multimode, 7 dB maximum loss budget
- Video: 165 MHz maximum pixel clock, DVI 1.0, HDMI compliant, HDCP 1.1, CEA-861E
- Audio: 18 bits per channel, 2 channels, 48 kHz sampling, 20 Hz to 20 kHz ±0.5 dB
- Enclosure: 1.75" H x 8.75" W x 6.0" D half rack, 1.0 lb (0.3 kg)
- Warranty: 3 years parts and labor, 7 years on the Everlast power supply
Also referenced as Extron FOXTUSW203MM, FOX-T-USW-203-MM, part number 60123011.
