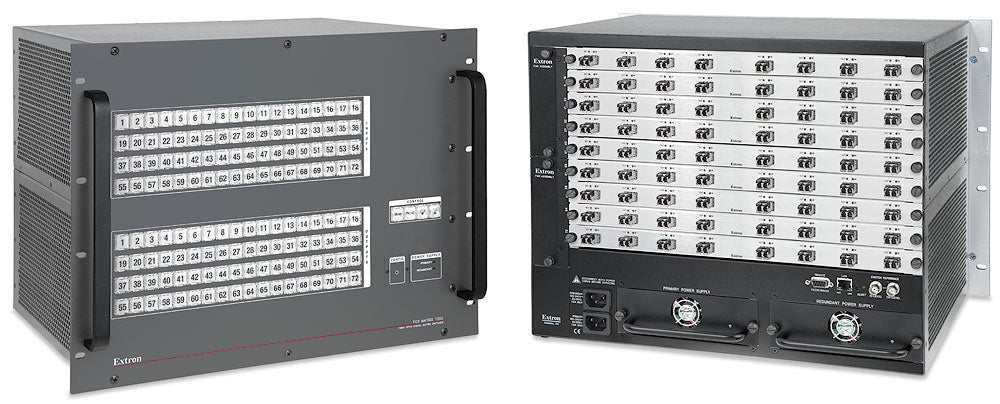

Extron FOX Matrix 7200 Power Supply Kit (part number 70-704-01) — Extron's replacement power supply kit for the FOX Matrix 7200 fiber optic matrix switcher frame. Extron lists this part as retired.

The FOX Matrix 7200 runs on two internal power supply modules, one primary and one redundant, with the redundant unit fitted as standard. Each is rated 175 watts and takes 100 VAC to 240 VAC at 50 or 60 Hz through a standard IEC cord, so the frame works on any mains supply worldwide. Should one module fail, the other carries the whole load and switching continues uninterrupted; the failed unit is then drawn out of the rear of the chassis while the matrix stays powered. This kit supplies that module. Note the rating is specific to the 7200 — the FOX Matrix 320x uses four 400 watt supplies and a different kit.

Key Capabilities

• Restores redundancy to a FOX Matrix 7200 after a supply failure
• 175 watt module accepting 100-240 VAC, 50-60 Hz worldwide
• Hot-swappable from the rear of the frame with the matrix still running
• Matches the 7200's two-module primary and redundant arrangement
• Connects through a standard IEC power cord

Where It Is Used

Sites still running a FOX Matrix 7200 in continuous service — military and government operations rooms, simulation facilities, hospital imaging networks, broadcast plants and campus AV backbones. Because Extron has retired the part, holding a spare is often the difference between a quick swap and a lengthy sourcing exercise.

Specifications at a Glance

• Fits: Extron FOX Matrix 7200 frame, part number 60-1256-01
• Module rating: 175 watts
• Input: 100 VAC to 240 VAC, 50-60 Hz
• Frame configuration: two modules, primary and redundant, hot-swappable

Extron lists 70-772-01 (FOX 14400 & DMS 3600) and 70-772-02 (FOX Matrix 320x) as separate power supply kits — neither substitutes for this one.

Also referenced as Extron FOXMatrix7200PowerSupplyKit, FOX-Matrix-7200-Power-Supply-Kit, part number 7070401.
