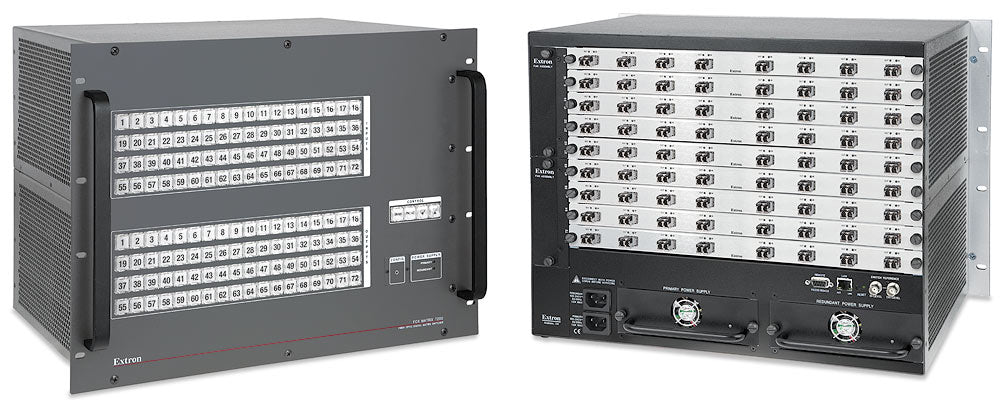

Extron FOX Matrix 7200 (part number 60-1256-01) — an 8U modular fiber optic matrix switcher frame scaling from 8x8 to 72x72. Extron now lists this model as retired.

Nine board slots make up the card cage, and each one holds an eight-port FOX I/O 88 board terminated in LC connectors. Multimode cards work at 850 nm for in-building runs; singlemode cards work at 1310 nm and reach far beyond a single site. Because the frame accepts either type in any slot, a multimode feed can enter and leave on singlemode within the same chassis. Two internal 175 watt supplies run primary and redundant, and both they and the cooling fan are hot-swappable. A QS-FPC QuickSwitch front panel controller is standard, and real-time diagnostics watch the boards, links, supplies and fan continuously.

Key Capabilities

Nine board slots scaling the matrix from 8x8 to 72x72
Two hot-swappable 175 W supplies, 100-240 VAC, primary and redundant
Accepts multimode and singlemode FOX I/O 88 boards in any combination
Priority Switching across six security levels plus Secure Partitioning to 12 partitions
QS-FPC QuickSwitch front panel controller with tri-color backlit buttons, standard
64 memory presets, 10 output-grouped rooms, RS-232 / RS-422 and 10/100 Ethernet control

Where It Is Used

Mid-scale fiber routing for facilities that cannot go dark: government and military operations rooms, simulation and training suites, hospital imaging networks, broadcast and production plants, and campus or industrial sites where the distance between source and display rules copper out.

Specifications at a Glance

Enclosure: 14.0" H x 17.0" W x 12" D, 8U, full rack wide
Weight fully loaded: 61.1 lbs (27.7 kg)
Power draw: 50.7 W bare, up to 171 W with nine singlemode boards
Thermal dissipation at full load: 584 BTU/hr
Maximum channel data rate: 4.25 Gbps, unity gain

Also referenced as Extron FOXMatrix7200, FOX-Matrix-7200, part number 60125601.

Specifications

Part Number: 60-1256-01

Manufacturer: Extron

Model: FOX Matrix 7200

Condition: New

Product Type: Modular fiber optic matrix switcher frame (FOX Matrix 7200 Frame)

Availability: Extron lists 60-1256-01 as Retired in the FOX Matrix 7200 model and part table

Matrix Size: Expandable from 8 x 8 up to 72 x 72

Board Slots: 9

Compatible I/O Boards: FOX I/O 88 MM (70-791-21), FOX I/O 88 SM (70-791-22), FOX I/O 88 HD-SDI (70-792-01, retired), FOX 3G I/O 88 SM P (70-965-02, retired); FOX Matrix Blank Plate (70-651-21) for unused slots

Fiber Video Routing: 8 x 8 up to 72 x 72 unidirectional (Tx), or 4 x 4 up to 36 x 36 bidirectional (Tx/Rx)

Gain: Unity

Pixel Data Bit Depth: 8 bits per channel, 3 channels (R, G, B)

Video/Audio Signals: 8 to 72 fiber optic signals

Optical Ports per I/O Board: 8 singlemode or 8 multimode fiber optic inputs and outputs (8 Tx and 8 Rx)

Optical Connectors: 16 LC connectors per I/O board

Nominal Peak Wavelength: 850 nm with multimode boards, 1310 nm with singlemode boards

Maximum Channel Data Rate: 4.25 Gbps

Serial Control Port: 1 bidirectional RS-232 or RS-422 on a female 9-pin D connector (rear panel); 1 bidirectional RS-232 on a 2.5 mm mini stereo jack (front panel)

Baud Rate and Protocol: 9600 to 115200 baud, 9600 baud default, 8 data bits, 1 stop bit, no parity

Ethernet Control Port: 1 female RJ-45 connector

Ethernet Data Rate: 10/100Base-T, half or full duplex with autodetect

Ethernet Protocols: ARP, ICMP (ping), IP, TCP, UDP, DHCP, HTTP, SMTP, SNMP, Telnet

Default Network Settings: IP address 192.168.254.254; subnet mask 255.255.0.0; gateway 0.0.0.0; DHCP off; link speed and duplex autodetected

Web Server: Up to 200 simultaneous sessions; 7 MB nonvolatile user memory

Program Control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Telnet

Front Panel Control: QS-FPC QuickSwitch Front Panel Controller with tri-color backlit buttons, standard

Presets and Rooming: 64 memory presets; up to 10 rooms created from groups of outputs

Security Features: Priority Switching with six security levels; Secure Partitioning with up to 12 partitions

Remote Control Compatibility: MKP 3000 X-Y Remote Control Panel

Power Supply: Internal, 2 (positive-negative), primary and redundant, hot-swappable; a redundant supply is standard. Input 100-240 VAC, 50-60 Hz

Power Supply Module Rating: 175 watts each, 100 VAC to 240 VAC, 50-60 Hz

Power Consumption: 50.7 watts with no boards fitted; 165 watts fully loaded with 9 MM boards; 171 watts with 9 SM boards; 137 watts with 9 SDI/HD-SDI boards

Cooling: Fan, right to left as viewed from the front panel; hot-swappable

Thermal Dissipation, Full Load: 584 BTU/hr

Operating Temperature/Humidity: +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing

Storage Temperature/Humidity: -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing

Mounting: Rack mount

Enclosure Type: Metal

Enclosure Dimensions: 14.0" H x 17.0" W x 12" D (8U high, full rack wide); 35.6 cm H x 43.2 cm W x 30.5 cm D. Depth excludes connectors and buttons; width excludes integrated rack ears.

Product Weight (fully loaded): 61.1 lbs (27.7 kg)

Shipping Weight: 68 lbs (31 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory - Safety: CE, c-UL, UL

Regulatory - EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI

Replacement Parts: FOX Matrix 7200 Power Supply Kit (70-704-01, retired); FOX 7200, 14400, 320x & DMS 3600 Fan Kit (70-814-01)

Warranty: 3 years parts and labor

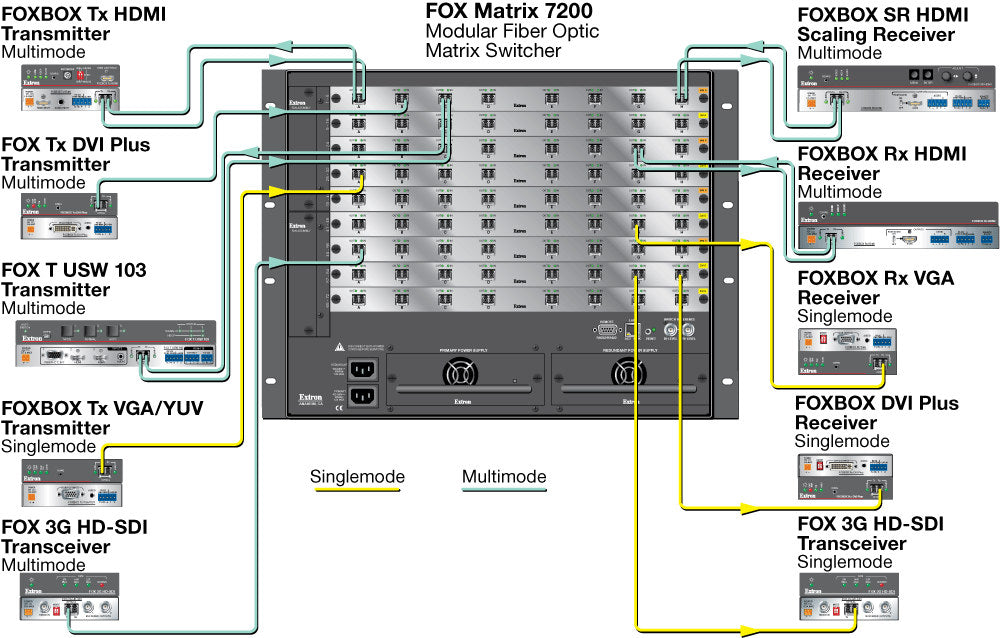

Diagram
