Extron FOX Matrix 320x Modular Fiber Optic Matrix Switcher
- • 20 board slots scale the matrix from 16x16 all the way to 320x320
- • Four hot-swappable 400 W supplies, 100-240 VAC, primary and redundant
- • Multimode, singlemode and 3G-SDI I/O boards mix freely in one chassis
- • Priority Switching across six security levels for classified environments
- • Secure Partitioning divides the frame into as many as 12 partitions
- • 64 memory presets and 10 output-grouped rooms
- • 17U metal enclosure, 113 lbs fully loaded, 2505 BTU/hr at full load
- • Self-diagnostics with SNMP traps and e-mail alerts on fiber link loss
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

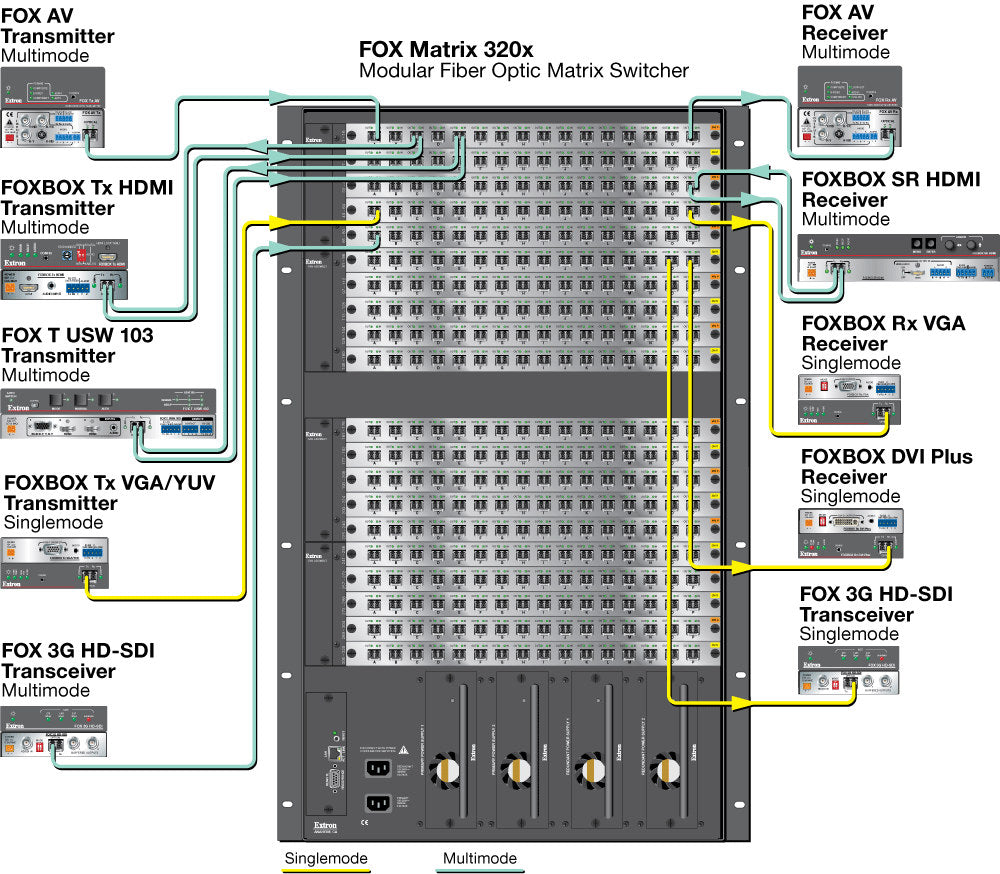

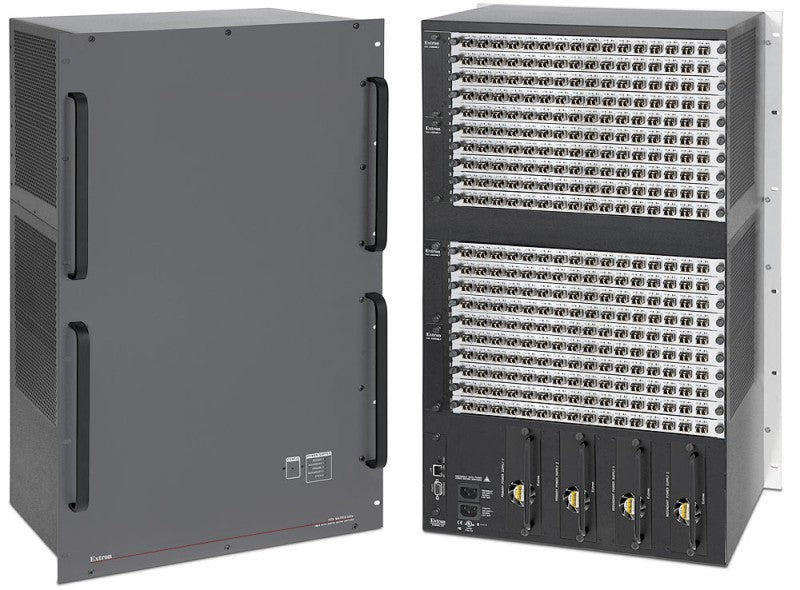

Extron FOX Matrix 320x (part number 60-1082-01) — a 17U modular fiber optic matrix switcher frame that scales from 16x16 to 320x320.
The frame is a card cage with twenty board slots. Each slot takes a 16-port FOX I/O 1616 card, so capacity grows a board at a time rather than by replacing the switcher. Multimode, singlemode and 3G-SDI cards can share the same chassis, which lets an 850 nm in-building link enter the matrix and leave it on 1310 nm singlemode bound for a site kilometres away. Four internal 400-watt supplies run in primary and redundant pairs and pull out from the rear without tools; the fans are hot-swappable too. Continuous self-diagnostics watch the boards, the fiber links, the supplies and the fans, and can raise SNMP traps or e-mail when an inbound link drops.
Key Capabilities
- Twenty board slots scaling the matrix from 16x16 to 320x320
- Four hot-swappable 400 W supplies, 100-240 VAC, in primary and redundant pairs
- Mixes multimode, singlemode and 3G-SDI I/O boards in one frame
- Priority Switching across six security levels plus Secure Partitioning up to 12 partitions
- 64 memory presets and up to 10 output-grouped rooms
- RS-232 / RS-422 and 10/100 Ethernet control with an on-board web server
Where It Is Used
Frames this size land in facilities that run around the clock: military and government command centers, air traffic control, simulation and training complexes, hospital and medical imaging networks, broadcast and post facilities, stadium control rooms, and process control at utility and energy sites where signal runs cross a campus.
Specifications at a Glance
- Enclosure: 29.75" H x 17.0" W x 12.25" D, 17U, full rack wide
- Weight fully loaded: 113 lbs (51.3 kg)
- Power draw: 206 W bare, up to 734 W with twenty SDI/HD-SDI boards
- Thermal dissipation at full load: 2505 BTU/hr
- Maximum channel data rate: 4.25 Gbps, unity gain
Also referenced as Extron FOXMatrix320x, FOX-Matrix-320x, part number 60108201.
