Extron FOX Matrix 3200 Modular Fiber Optic Matrix Switcher
- • Four hot-swappable card slots scale the frame from 8x8 to 32x32 fiber ports
- • 16 LC connectors per FOX I/O 88 card: 8 transmit plus 8 receive
- • Maximum channel data rate of 4.25 Gbps across the fiber backplane
- • Singlemode links span 30 km; multimode reaches 2 km on OM3/OM4 cable
- • Dual internal hot-swappable supplies run primary plus redundant from 100-240 VAC
- • RS-232, RS-422 and 10/100Base-T Ethernet with a 200-session web server
- • Optional HD-SDI card adds SDI, HD-SDI and 3G-SDI switching to 2.97 Gbps
- • 4U metal enclosure, full rack width, backed by 3 years parts and labor
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

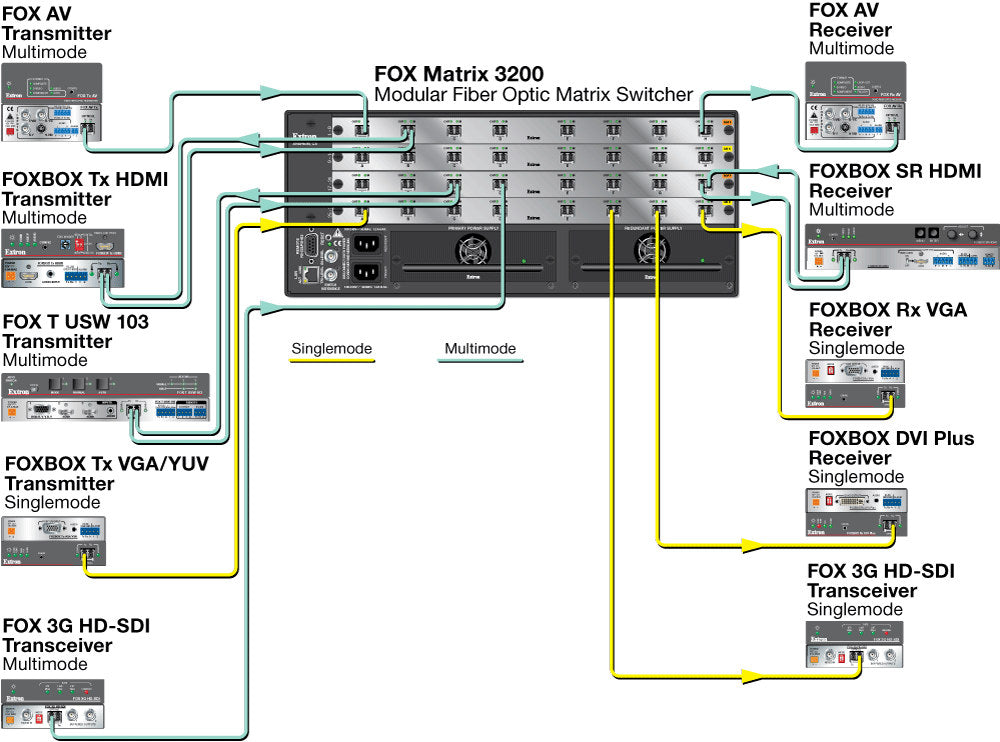

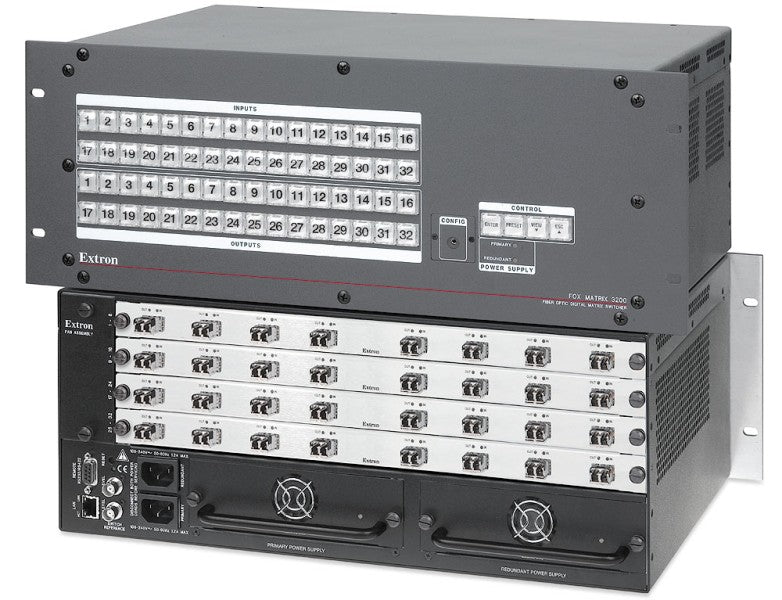

Extron FOX Matrix 3200 (part number 60-1257-01) — a four-slot, card-based fiber optic matrix switcher frame that scales from 8x8 to 32x32.
Ampronix supplies the FOX Matrix 3200 frame for facilities that move audiovisual and control traffic across a fiber backbone rather than copper. Each of its four board slots accepts an eight-port FOX I/O 88 card, so a site can begin with a single card and grow to 32 ports in each direction without replacing the enclosure. Multimode and singlemode cards may share the same frame, which lets one chassis serve short in-building runs and multi-kilometre campus links simultaneously. Boards, fan and both power supplies can be exchanged while the switcher keeps running.
Key Capabilities
- Four hot-swappable I/O slots, each card carrying 16 LC connectors — 8 transmit and 8 receive
- Routes 8x8 through 32x32 in unidirectional mode, or 4x4 through 16x16 when ports are linked for bidirectional use
- Fiber channel throughput to 4.25 Gbps; the optional HD-SDI card carries SDI, HD-SDI and 3G-SDI up to 2.97 Gbps
- Two internal supplies wired primary-plus-redundant, both hot-swappable, fed from 100-240 VAC at 50-60 Hz
- Control over RS-232, RS-422, front-panel mini stereo jack and 10/100Base-T Ethernet, with a web server that holds 200 concurrent sessions
- Singlemode ports reach 30 km; multimode reaches 2 km over OM3 or OM4 cable
Where It Is Used
Fiber matrix frames of this class are specified where copper cannot span the distance or where electrical isolation matters: hospital imaging networks, campus-wide lecture distribution, stadium and arena feeds, simulation and training ranges, broadcast facilities using SDI cards, and command centres that run continuously and need board-level redundancy.
Specifications at a Glance
- Routing: 8x8 to 32x32 unidirectional; 4x4 to 16x16 bidirectional
- Maximum channel data rate: 4.25 Gbps
- Enclosure: 7.0" H x 17.0" W x 12" D, 4U, full rack width, metal
- Power draw: 31.4 W bare frame, up to 87.0 W with four singlemode cards
- Warranty: 3 years parts and labor
Also referenced as Extron FOXMatrix3200, FOX-Matrix-3200, part number 60125701.
