Extron FOX II T HD 4K MM Multimode HDMI Fiber Optic Transmitter
- • Multimode HDMI fiber transmitter with RS-232 and IR - Extron part 60-1351-11
- • 850 nm optics reach 300 m on OM1, 1 km on OM2 and 2 km on OM3/OM4 fiber
- • Female HDMI input plus buffered HDMI loop-through for a local monitor
- • Carries resolutions to 4096x2160 at 24/30 Hz with 4:4:4 color space
- • 7 dB maximum optical loss budget, -5 dBm typical transmission power
- • Analog audio in at up to +21.0 dBu balanced, gain trim from -18 to +13 dB
- • Half-rack metal enclosure, 1.75 in high, 2.2 lbs, 18.5 W internal supply
- • 3-year Extron warranty with 7-year Everlast power supply coverage
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

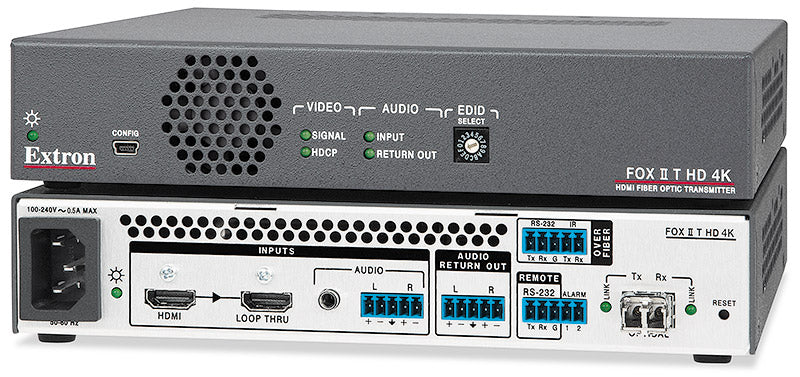

Extron FOX II T HD 4K MM (part number 60-1351-11) — the multimode send end of Extron's FOX II T HD 4K fiber optic extender, launching HDMI video, multi-channel audio, RS-232 and IR onto a pair of LC-terminated fibers.
This is the transmit-side unit, so it lives with the source. An HDMI input feeds the optical engine while a buffered HDMI loop-through keeps a local confidence monitor alive at the rack. Because this is the MM order code, the optics run at 850 nm for multimode plant: figure roughly 300 m over 62.5 µm OM1, about 1 km over 50 µm OM2, and as much as 2 km over laser-optimized 50 µm OM3 or OM4, inside a 7 dB optical loss budget. Extron lists this transmitter as compatible with its FOX II R DP 4K receiver.
Key Capabilities
- One female HDMI input plus one female HDMI loop-through for a local display
- 850 nm multimode optics reaching about 300 m on OM1, 1 km on OM2 and 2 km on OM3/OM4 fiber
- Carries 640x480 through 4096x2160 at 24/30 Hz, UHD, and 1080p at up to 120 Hz
- Analog audio in on a 3.5 mm stereo jack and a 5-pole captive screw, or de-embedded straight from HDMI
- Balanced audio return output on captive screw, plus bidirectional RS-232 and IR across the fiber
- 7 dB maximum optical loss budget with a -5 dBm typical launch power
Where It Is Used
Multimode HDMI transmitters like this one anchor the source end of in-building fiber runs: hospital equipment rooms feeding operating theatre and imaging displays, campus lecture capture and auditorium rigs, broadcast and post facilities, and control rooms where a copper HDMI run would be both too short and too noisy to trust.
Specifications at a Glance
- Optical: 2 fiber, 2 LC connectors, 850 nm multimode, 4.25 Gbps optical data rate
- Video: DVI 1.0 / HDMI 1.4a / HDCP 1.4 / CEA-861E, up to 8.91 Gbps, 300 MHz pixel clock
- Power: internal supply, 100-240 VAC 50-60 Hz, 18.5 watts, 62.1 BTU/hr
- Enclosure: metal half rack, 1.75 in H x 8.7 in W x 8.5 in D, 2.2 lbs (1.0 kg)
- Warranty: 3 years parts and labor; Everlast power supply 7 years
Also referenced as Extron FOXIITHD4KMM, FOX-II-T-HD-4K-MM, part number 60135111.
Specifications
Specifications

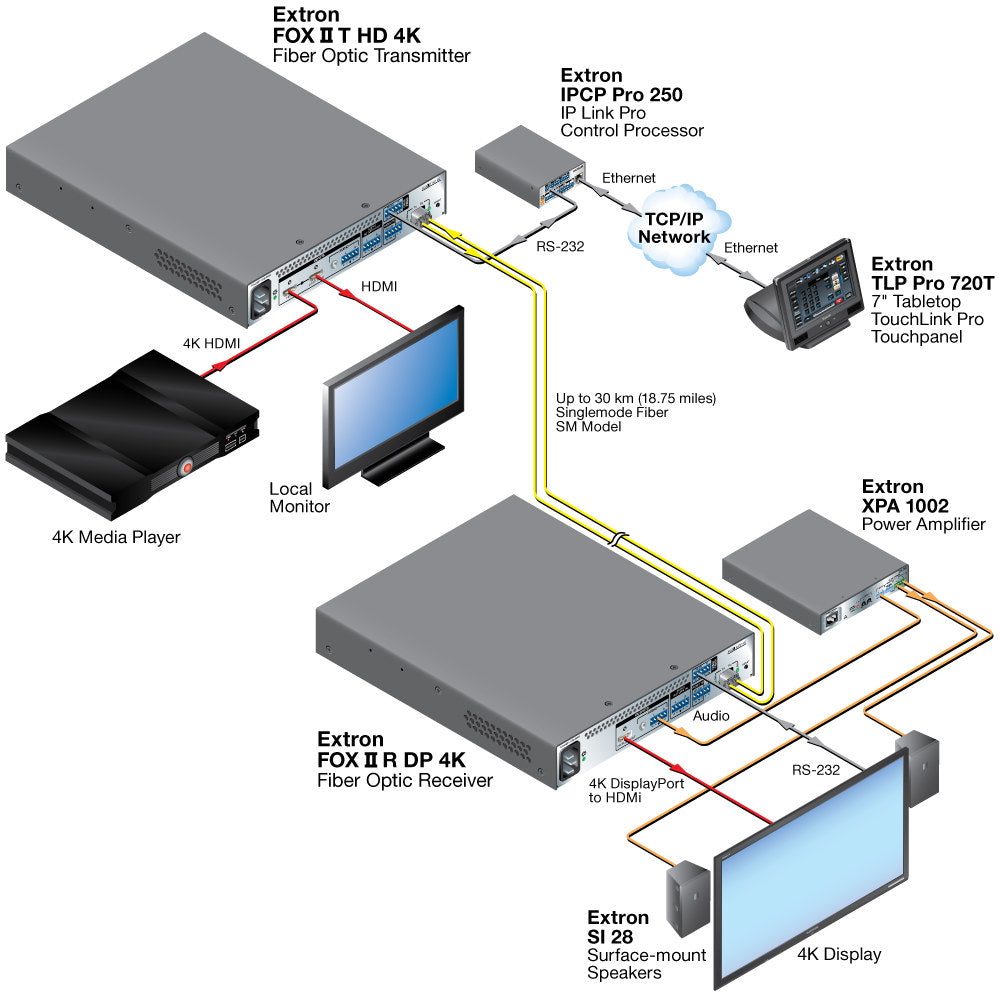

Diagram
