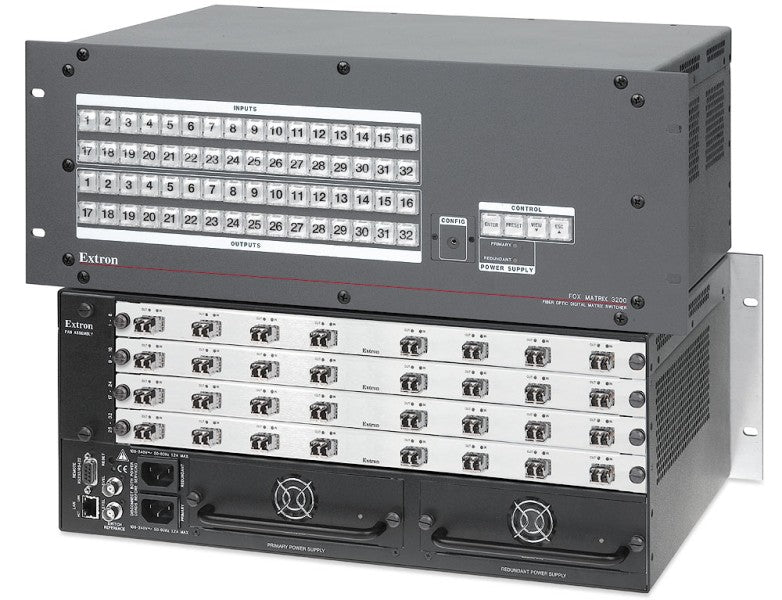

Part Number: 70-791-02
Manufacturer: Extron
Condition: New
4096 x 2160 at 30 Hz: 4:4:4
4096 x 2160 at 60 Hz: 10 bit
Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Auto data rate lock: Yes
Baud rate and protocol: 9600 to 115200 baud, 9600 baud (default), 8 data bits, 1 stop bit, no parity
Chroma Sampling1: 4:4:4
Color Bit Depth1: 8 or 10 bits per color
Connectors: 16 LC connectors per I/O card
Cooling: Fan, right to left (as viewed from front panel)
DC offset: 0 V with input at 0 offset
Data types: 8 or 10 bit
Default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.254Subnet mask = 255.255.0.0Gateway = 0.0.0.0DHCP = off
EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI
Enclosure dimensions: 7.0" H x 17.0" W x 12" D (4U high, full rack wide)(17.8 cm H x 43.2 cm W x 30.5 cm D)(Depth excludes connectors and buttons. Width excludes integrated rack ears.)
Enclosure type: Metal
Equalization: Automatic
Ethernet control port: 1 female RJ-45 connector
Ethernet data rate: 10/100Base-T, half/full duplex with autodetect
Ethernet protocol: ARP, ICMP (ping), IP, TCP, UDP, DHCP, HTTP, SMTP, SNMP, Telnet
Extron R59, Belden 1505A cable: 218' (66 m)
Extron RG6, Belden 1694A cable: 328' (100 m)
Female 9-pin D connector: RS-232: 2 = Tx, 3 = Rx, 5 = GNDRS-422: 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+
Frame Rate1: 24, 25, 30, 50, 60 or 120 fps
Gain: Unity
Impedance: 75 ohms
Jitter: <0.2 UI
Max Video Data Rate: 10.8 Gbps (2.7 Gbps per lane)
Maximum channel data rate: 4.25 Gbps
Maximum data rate: 2.97 Gbps
Mini stereo jack: RS-232: tip = Tx, ring = Rx, sleeve = GND
Multimode: 300 m (985') with 62.5 µm OM1 multimode (MM) cables with an Extron multimode Tx/Rx unit1 km (3280') with 50 µm OM2 multimode (MM) cables with an Extron multimode Tx/Rx unit2 km (6561') with 50 µm, OM3/OM4, 2000 MHz bandwidth, laser-optimized multimode (MM) cables with an Extron multimode Tx/Rx unit
Nominal level: 0.80 Vp-p ±10%
Nominal peak wavelength: 850 nm for multimode (MM), 1310 nm for singlemode (SM)
Number/signal type: 8 to 32 fiber optic signals
Number/type: 8 singlemode or 8 multimode fiber optic inputs and outputs (8 Tx and 8 Rx) per I/O card
Operation standards: SMPTE 292M, SMPTE 259M, SMPTE 297-2006, SMPTE 424M, ITU-RBT.601, ITU-RBT.1120
Pixel data bit depth: 8 bits per channel, 3 channels (R, G, B)
Power consumption: Enclosure without boards: 31.4 wattsEnclosure fully loaded with 4 MM boards: 83.8 wattsEnclosure fully loaded with 4 SM boards: 87.0 wattsEnclosure fully loaded with 4 SDI/HD-SDI boards: 68.0 wattsEach MM board: 13.1 wattsEach SM board: 13.9 wattsEach SDI/HD-SDI board: 9 watts
Power supply: Internal, 2* (positive-negative), primary and redundant, hot-swappableInput: 100-240 VAC, 50-60 Hz*A redundant power supply is standard.
Product warranty: 3 years parts and labor
Product weight (fully loaded): 34.5 lbs (15.6 kg)
Program control: Extron control/configuration program for Windows®Extron Simple Instruction Set (SIS™)Microsoft® Internet Explorer® ver. 6 or higher, Telnet
Rack mount: Yes
Re-clocking: Automatic, or use available bypass mode for nonstandard rates
Resolution and Frame Rate: Chroma Sampling
Return loss: >14 dB @ 1 MHz to 1.3 GHz
Rise and fall time (20-80%): 600 ps ±100 ps
Routing: 8 x 8 up to 32 x 32 unidirectional (Tx) matrix or4 x 4 up to 16 x 16 bidirectional (Tx/Rx) matrix
Safety: CE, c-UL, UL
Serial control port: 1 bidirectional RS-232 or RS-422, 9-pin female D connector (rear panel)1 bidirectional RS-232, 2.5 mm mini stereo jack (front panel)
Shipping weight: 41 lbs (19 kg)
Signal Type: HDMI / DisplayPort / HDCP
Singlemode: 30 km (18.75 miles) with singlemode (SM) cables with an Extron singlemode transmitter/receiver
Thermal dissipation, full load: 297 BTU/hr
Vibration: ISTA 1A in carton (International Safe Transit Association)
Web server: Up to 200 simultaneous sessions7 MB nonvolatile user memory
