Manufacturer: Extron | Model: FOX 3G I/O 88 SM P | Part number: 70-965-02 (also written 7096502)

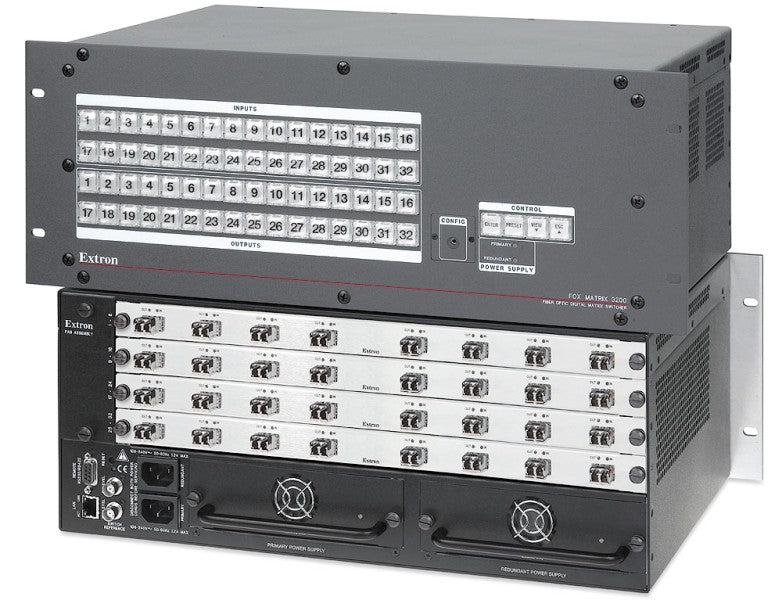

The Extron FOX 3G I/O 88 SM P, part number 70-965-02, is a singlemode fiber I/O board with pathological compensation for the FOX Matrix 3200, FOX Matrix 7200, and FOX Matrix 14000 chassis. Installing this single-slot board adds 8 fiber inputs and 8 fiber outputs via 16 LC connectors, growing the host matrix in 8x8 increments from its initial size up to the chassis maximum. The pathological compensation (P) version adds immunity to test patterns defined by SMPTE RP 178 and RP 198, making it suitable for broadcast environments where pathological signals may be present. The board is hot-swappable and carries digital AV signals over singlemode fiber at up to 4.25 Gbps per channel, reaching 30 km on singlemode cable. Signal formats supported include DisplayPort, HDMI, DVI, 3G-SDI, RGB, HD component, and standard-definition video.

Specifications

Part Number: 70-965-02

Manufacturer: Extron

Condition: New

4096 x 2160 at 30 Hz: 4:4:4

4096 x 2160 at 60 Hz: 10 bit

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Auto data rate lock: Yes

Baud rate and protocol: 9600 to 115200 baud, 9600 baud (default), 8 data bits, 1 stop bit, no parity

Chroma Sampling1: 4:4:4

Color Bit Depth1: 8 or 10 bits per color

Connectors: 16 LC connectors per I/O card

Cooling: Fan, right to left (as viewed from front panel)

DC offset: 0 V with input at 0 offset

Data types: 8 or 10 bit

Default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.254Subnet mask = 255.255.0.0Gateway = 0.0.0.0DHCP = off

EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI

Enclosure dimensions: 7.0" H x 17.0" W x 12" D (4U high, full rack wide)(17.8 cm H x 43.2 cm W x 30.5 cm D)(Depth excludes connectors and buttons. Width excludes integrated rack ears.)

Enclosure type: Metal

Equalization: Automatic

Ethernet control port: 1 female RJ-45 connector

Ethernet data rate: 10/100Base-T, half/full duplex with autodetect

Ethernet protocol: ARP, ICMP (ping), IP, TCP, UDP, DHCP, HTTP, SMTP, SNMP, Telnet

Extron R59, Belden 1505A cable: 218' (66 m)

Extron RG6, Belden 1694A cable: 328' (100 m)

Female 9-pin D connector: RS-232: 2 = Tx, 3 = Rx, 5 = GNDRS-422: 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+

Frame Rate1: 24, 25, 30, 50, 60 or 120 fps

Gain: Unity

Impedance: 75 ohms

Jitter: <0.2 UI

Max Video Data Rate: 10.8 Gbps (2.7 Gbps per lane)

Maximum channel data rate: 4.25 Gbps

Maximum data rate: 2.97 Gbps

Mini stereo jack: RS-232: tip = Tx, ring = Rx, sleeve = GND

Multimode: 300 m (985') with 62.5 µm OM1 multimode (MM) cables with an Extron multimode Tx/Rx unit1 km (3280') with 50 µm OM2 multimode (MM) cables with an Extron multimode Tx/Rx unit2 km (6561') with 50 µm, OM3/OM4, 2000 MHz bandwidth, laser-optimized multimode (MM) cables with an Extron multimode Tx/Rx unit

Nominal level: 0.80 Vp-p ±10%

Nominal peak wavelength: 850 nm for multimode (MM), 1310 nm for singlemode (SM)

Number/signal type: 8 to 32 fiber optic signals

Number/type: 8 singlemode or 8 multimode fiber optic inputs and outputs (8 Tx and 8 Rx) per I/O card

Operation standards: SMPTE 292M, SMPTE 259M, SMPTE 297-2006, SMPTE 424M, ITU-RBT.601, ITU-RBT.1120

Pixel data bit depth: 8 bits per channel, 3 channels (R, G, B)

Power consumption: Enclosure without boards: 31.4 wattsEnclosure fully loaded with 4 MM boards: 83.8 wattsEnclosure fully loaded with 4 SM boards: 87.0 wattsEnclosure fully loaded with 4 SDI/HD-SDI boards: 68.0 wattsEach MM board: 13.1 wattsEach SM board: 13.9 wattsEach SDI/HD-SDI board: 9 watts

Power supply: Internal, 2* (positive-negative), primary and redundant, hot-swappableInput: 100-240 VAC, 50-60 Hz*A redundant power supply is standard.

Product warranty: 3 years parts and labor

Product weight (fully loaded): 34.5 lbs (15.6 kg)

Program control: Extron control/configuration program for Windows®Extron Simple Instruction Set (SIS™)Microsoft® Internet Explorer® ver. 6 or higher, Telnet

Rack mount: Yes

Re-clocking: Automatic, or use available bypass mode for nonstandard rates

Resolution and Frame Rate: Chroma Sampling

Return loss: >14 dB @ 1 MHz to 1.3 GHz

Rise and fall time (20-80%): 600 ps ±100 ps

Routing: 8 x 8 up to 32 x 32 unidirectional (Tx) matrix or4 x 4 up to 16 x 16 bidirectional (Tx/Rx) matrix

Safety: CE, c-UL, UL

Serial control port: 1 bidirectional RS-232 or RS-422, 9-pin female D connector (rear panel)1 bidirectional RS-232, 2.5 mm mini stereo jack (front panel)

Shipping weight: 41 lbs (19 kg)

Signal Type: HDMI / DisplayPort / HDCP

Singlemode: 30 km (18.75 miles) with singlemode (SM) cables with an Extron singlemode transmitter/receiver

Thermal dissipation, full load: 297 BTU/hr

Vibration: ISTA 1A in carton (International Safe Transit Association)

Web server: Up to 200 simultaneous sessions7 MB nonvolatile user memory
