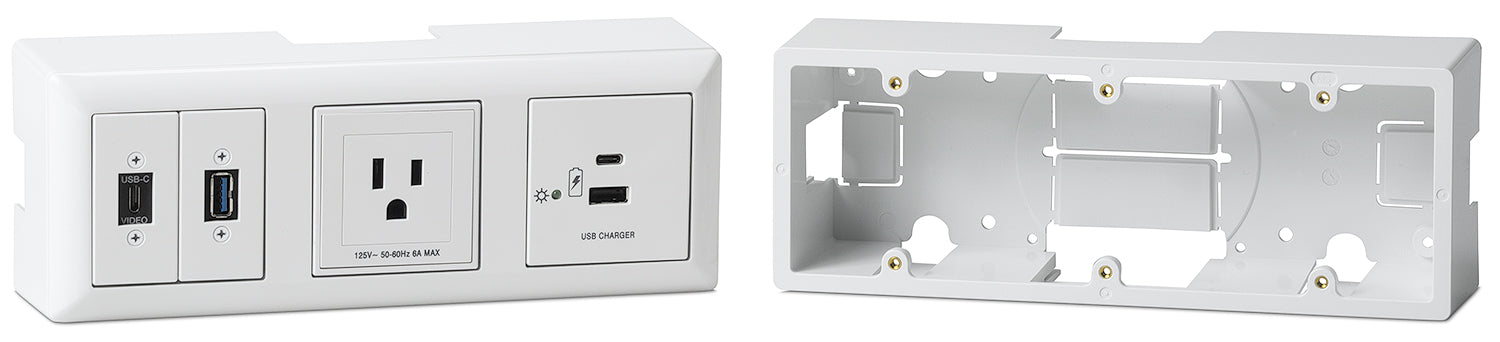

Extron EWB 213 (part number 70-1131-13) — the three-gang white box in Extron's EWB 210 Series, the widest EU surface enclosure in the range.

Three EU gangs covers the wall positions that have to do everything at once: control, transmission, audio and power modules in a single Flex55 frame. The EWB 213 supports that on the wall surface, measuring 226 mm across with 47 mm of internal depth, so a fully populated mounting kit still seats cleanly over its cabling. Four raceway openings — top, bottom and both sides — give the installer a free choice of cable route, and four knockout covers close the rest.

Key Capabilities

• Three-gang EU box for Flex55 mounting kits and EU wallplate devices
• Enclosure of 3.35 in H x 8.90 in W x 1.97 in D (85 x 226 x 50 mm)
• 1.85 in (47 mm) internal depth for cabling and connectors
• Four raceway openings with four supplied knockout covers
• Six M3 device mounting points, plus four wall mounting holes
• 0.35 lb (0.16 kg); CE, RoHS and WEEE compliant

Where It Is Used

European lecture theatres, divisible meeting spaces, hospital rooms and control positions where a single EU wall drop consolidates control panels, transmitters and power modules behind one Flex55 frame.

Specifications at a Glance

• Configuration: three-gang EU, wall mount
• Material: high impact plastic
• Product weight: 0.35 lb (0.16 kg)
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB213, EWB-213, part number 70113113.
