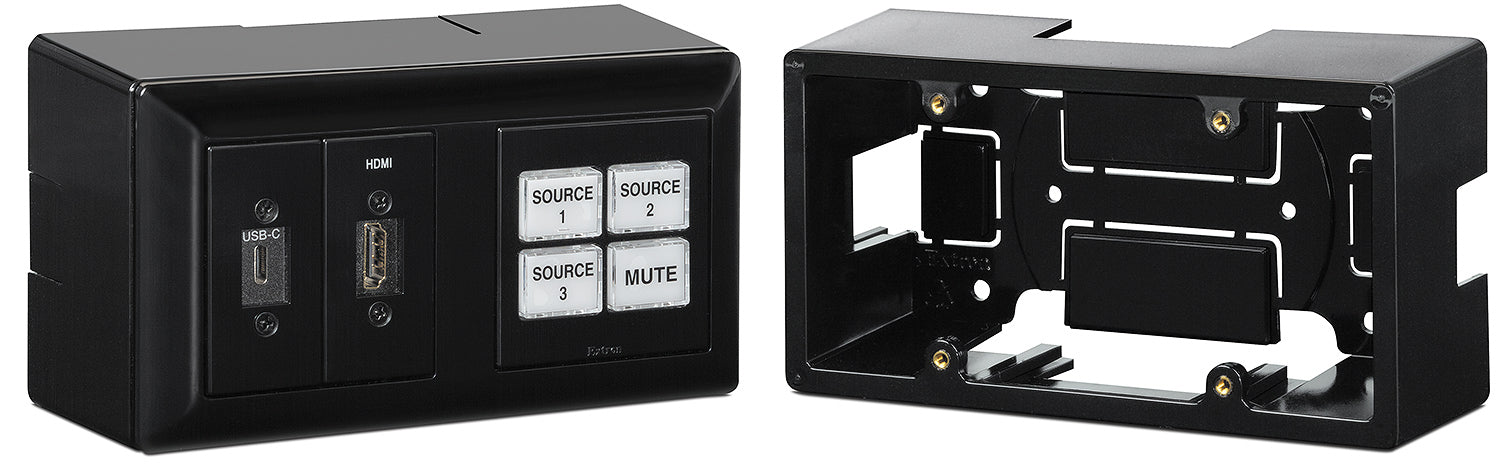

Extron EWB 212 (part number 70-1131-22) — two-gang EU external wall box in black, from the Extron EWB 210 Series for Flex55 and EU products.

Where a European installation needs two gangs of device on a wall that has no junction box behind it, this is the enclosure that carries them. The moulded plastic body spans 156 mm across the wall and holds 47 mm of internal depth, enough for a Flex55 mounting kit with a pair of full-size modules behind it. Cable can enter from the top, the bottom or either side through four raceway openings, and four supplied knockout covers close whichever are left unused.

Key Capabilities

• Two-gang EU box for Flex55 mounting kits and EU wallplate devices
• Enclosure of 3.35 in H x 6.14 in W x 1.97 in D (85 x 156 x 50 mm)
• 1.85 in (47 mm) internal depth behind the mounted device
• Four raceway openings with four matching knockout covers
• Wall or EU junction box mounting at 60 mm hole centres
• Black finish, Extron part number 70-1131-22

Where It Is Used

Dark-finished European boardrooms, auditoriums and technical rooms running MLC 55 RS EU controllers, NBP EU button panels or DTP T EU transmitters, where the wall cannot take a recessed EU box.

Specifications at a Glance

• Configuration: two-gang EU, wall mount
• Material: high impact plastic
• Product weight: 0.24 lb (0.11 kg)
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB212, EWB-212, part number 70113122.
