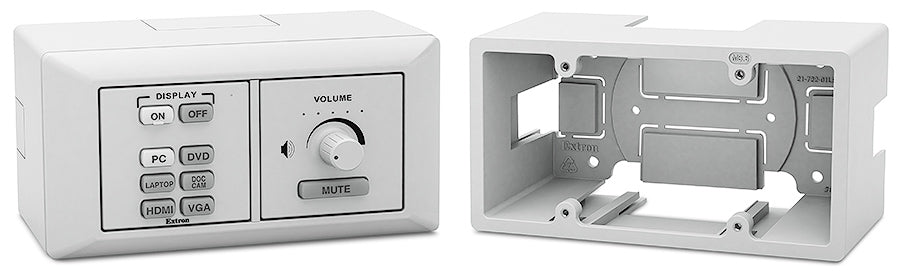

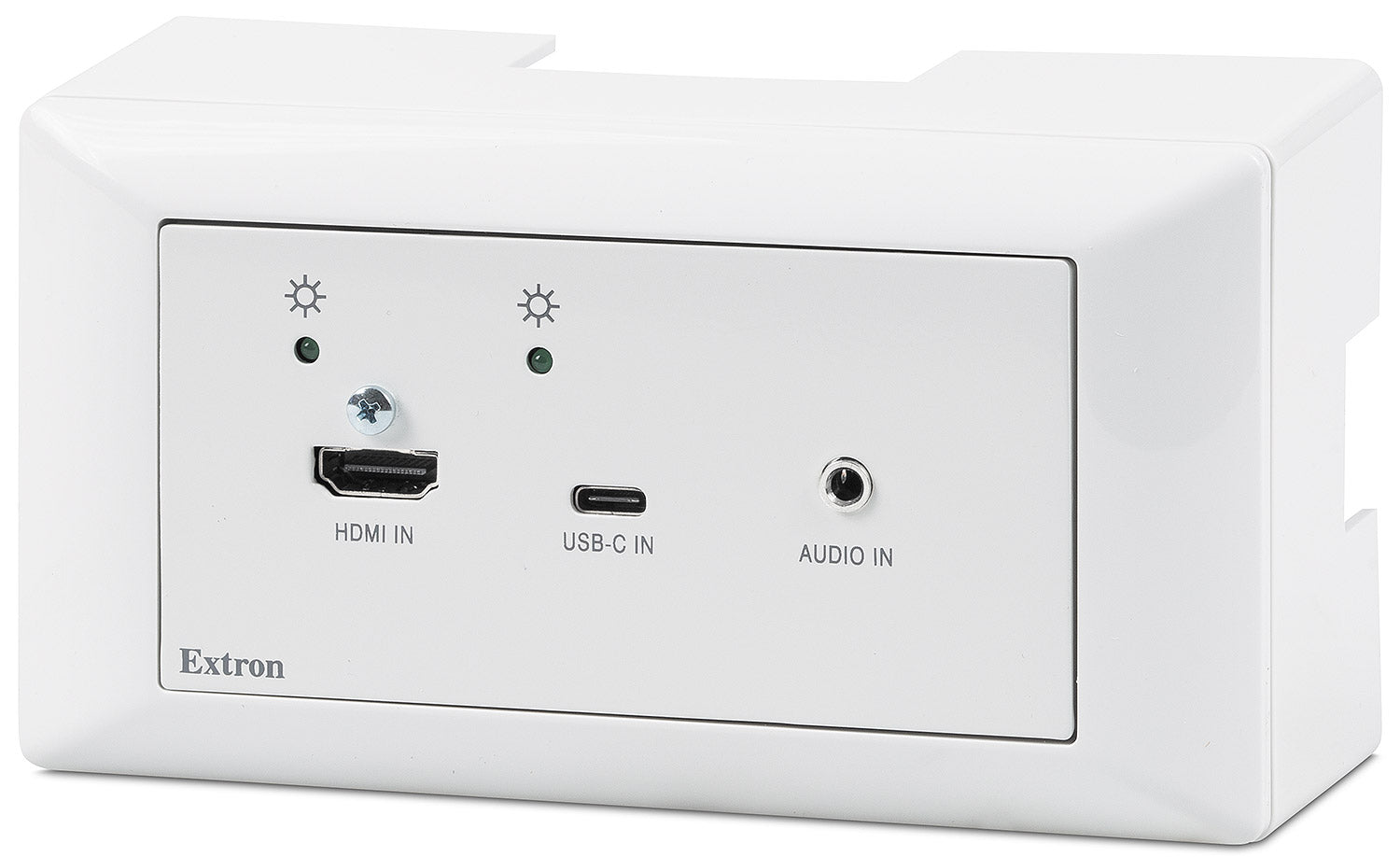

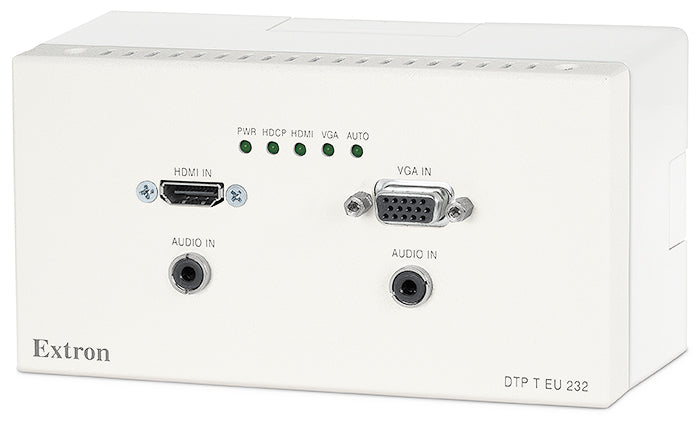

Extron EWB 212 (part number 70-1131-12) — the two-gang white box in Extron's EWB 210 Series, made for Flex55 mounting kits and EU wallplate devices.

Two EU gangs is the size most rooms settle on: a control panel beside a transmitter, or a Flex55 kit carrying a pair of full-size modules. The EWB 212 puts that on the wall surface without an in-wall junction box. Its high impact plastic shell measures 85 by 156 mm with 47 mm of internal depth, and it offers four raceway openings — top, bottom and one on each side — so cable can approach from any direction. Four knockout covers close the openings that are not used.

Key Capabilities

• Two-gang EU box for Flex55 mounting kits and EU wallplate devices
• Enclosure of 3.35 in H x 6.14 in W x 1.97 in D (85 x 156 x 50 mm)
• 1.85 in (47 mm) internal depth for cabling and connectors
• Four raceway openings: top, bottom and one on each side
• Four device mounting points using M3 screws, plus four wall holes
• 0.24 lb (0.11 kg); CE, RoHS and WEEE compliant

Where It Is Used

European and international meeting rooms, lecture spaces and healthcare corridors running MLC 55 RS EU controllers, NBP EU button panels and Flex55 modules, on walls where a recessed EU box is not available.

Specifications at a Glance

• Configuration: two-gang EU, wall mount
• Material: high impact plastic
• Product weight: 0.24 lb (0.11 kg)
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB212, EWB-212, part number 70113112.
