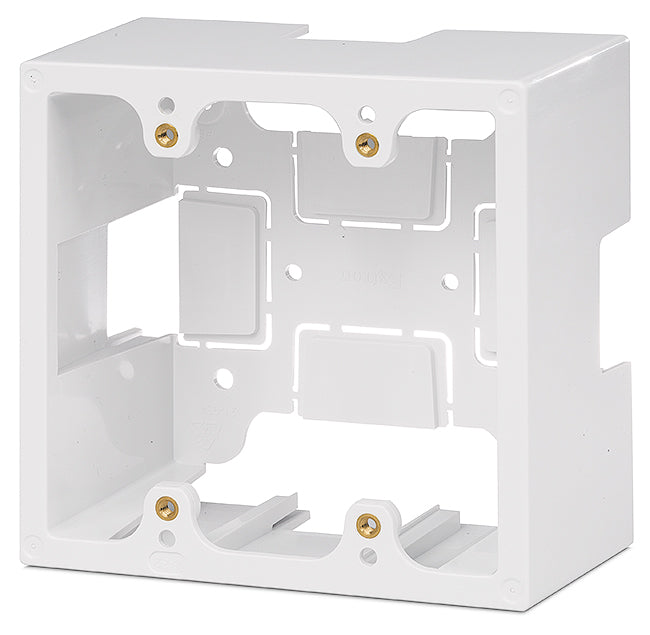

Extron EWB 112 (part number 70-1252-23) — the white two-gang external wall box for US Extron wallplates and active two-gang modules.

Where an MLC Plus controller, a DTP transmitter plate or a similar active two-gang device has to be surface mounted, the EWB 112 is the enclosure Extron built for it. The moulded thermoplastic shell measures 4.67 by 4.77 inches on the wall and holds 2.24 inches (57 mm) of usable internal depth, which matters when the module behind the plate has real volume rather than just connectors. Four raceway openings, one per side, let cable be routed to whichever direction the room layout favours.

Key Capabilities

• Compatible with US two-gang Extron wallplates and active modules
• Enclosure of 4.67 in H x 4.77 in W x 2.45 in D (119 x 121 x 62 mm)
• 2.24 in (57 mm) internal depth behind the plate
• Four raceway openings, one on each side
• High impact thermoplastic construction at 0.28 lb (0.13 kg)
• White finish, Extron part number 70-1252-23

Where It Is Used

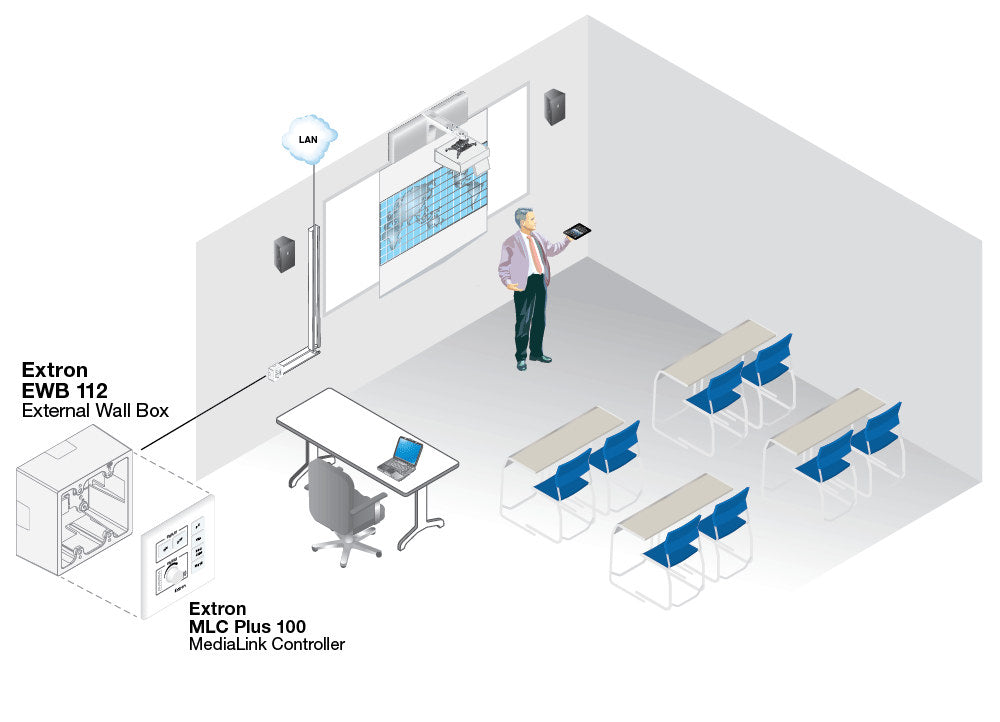

Teaching rooms, huddle spaces, clinics and hotel meeting rooms with light wall finishes, where a white enclosure blends into painted plaster. Regularly specified with MLC Plus 400 controllers and DTP T UWP 4K wallplate transmitters.

Specifications at a Glance

• Configuration: two-gang, wall mount
• Material: high impact thermoplastic
• Internal depth: 2.24 in (57 mm)
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB112, EWB-112, part number 70125223.
