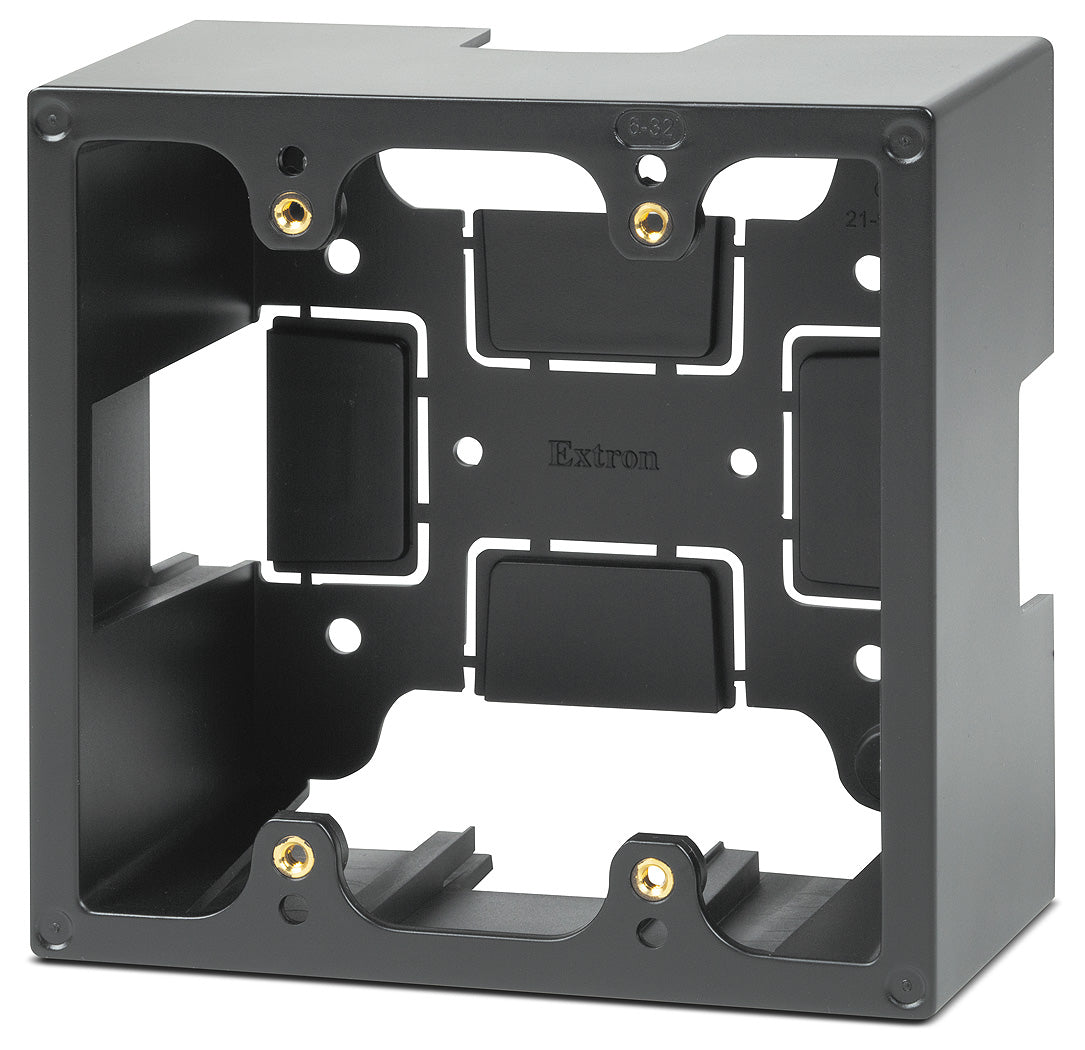

Extron EWB 112 (part number 70-1252-22) — a two-gang external wall box in black, built specifically around US two-gang Extron wallplates.

The EWB 112 differs from the older steel EWB boxes in two useful ways: it is moulded from high impact thermoplastic, and it was designed with active two-gang devices in mind, not just passive plates. Extron lists it as compatible with modules such as the MLC Plus 400 and the DTP T UWP 4K 232 D. Internally it holds 2.24 inches (57 mm) of clear depth, and four raceway openings — one on each side — give the installer a choice of cable path along the wall or in from the rear.

Key Capabilities

• Sized for US two-gang Extron wallplates and active modules
• Enclosure of 4.67 in H x 4.77 in W x 2.45 in D (119 x 121 x 62 mm)
• 2.24 in (57 mm) internal depth for connector bodies and slack cable
• Four raceway openings, one on each side of the box
• High impact thermoplastic body weighing only 0.28 lb (0.13 kg)
• CE marked, RoHS and WEEE compliant

Where It Is Used

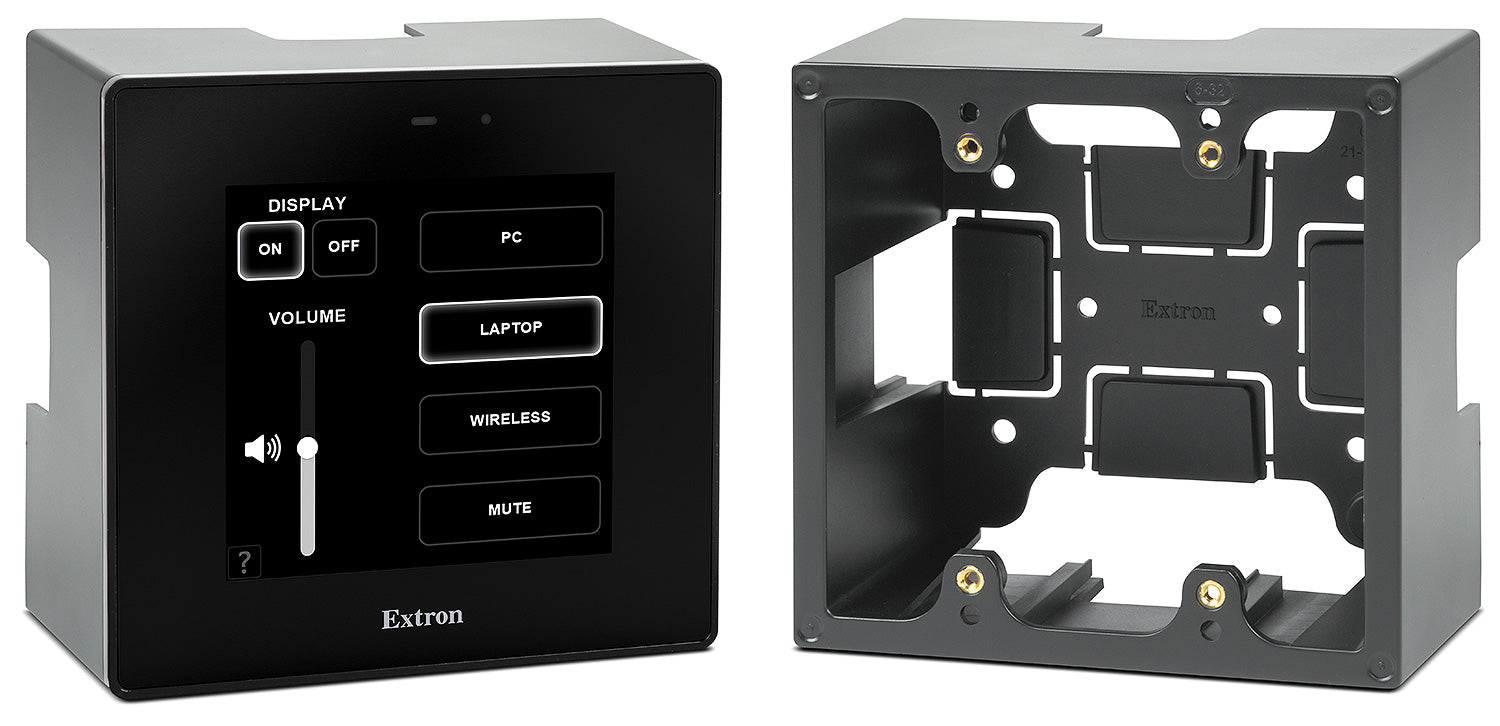

Meeting rooms, classrooms and clinical spaces where an MLC Plus controller or a DTP transmitter wallplate has to be mounted on a wall that cannot be opened for a recessed two-gang box. Common on masonry, glass partitions and demountable walls fed by raceway.

Specifications at a Glance

• Configuration: two-gang, wall mount
• Material: high impact thermoplastic
• Product weight: 0.28 lb (0.13 kg)
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB112, EWB-112, part number 70125222.
