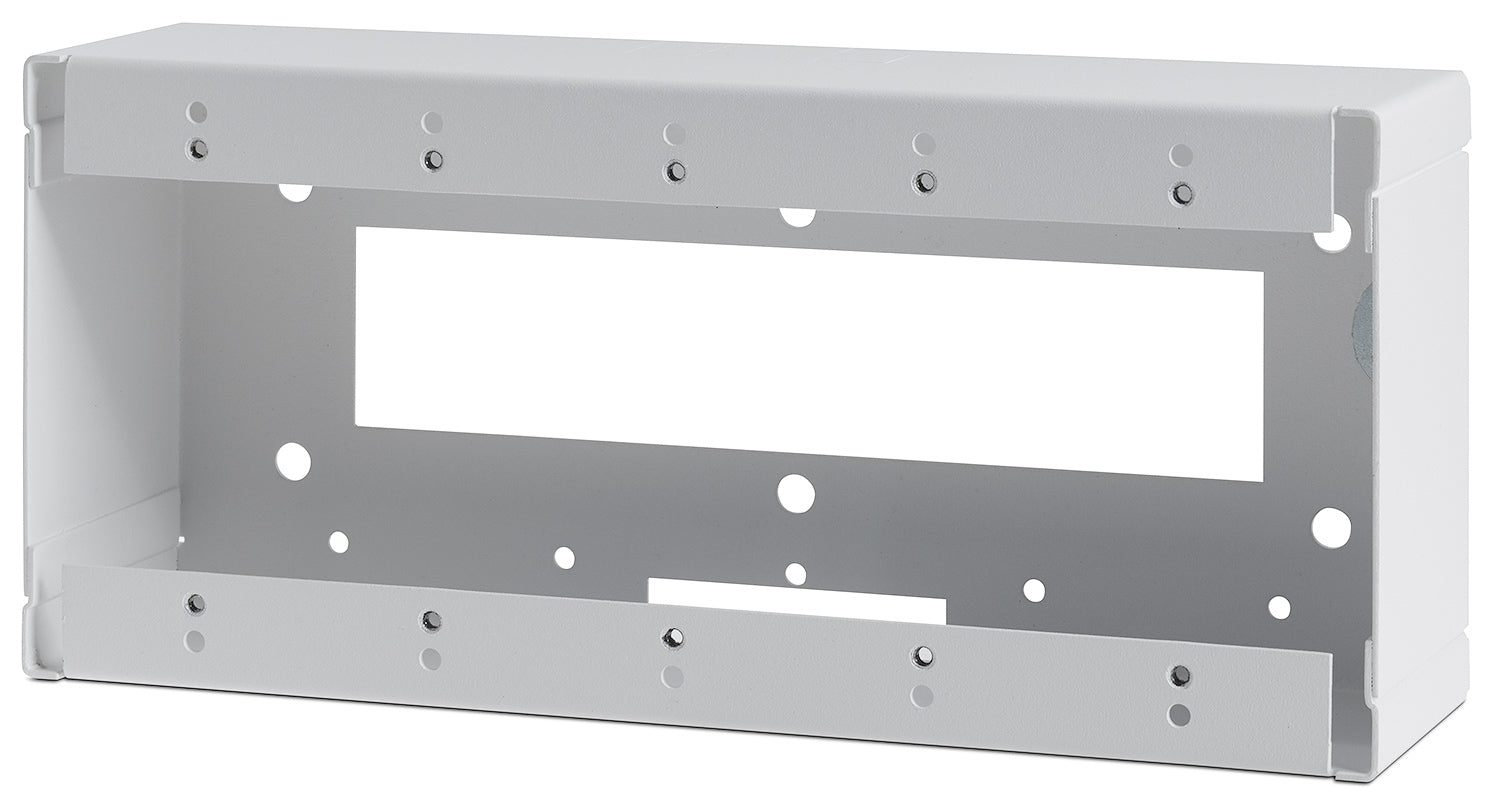

Extron EWB 105 (part number 60-1165-03) — five-gang external wall box in white, the largest surface enclosure in the Extron EWB Series.

Where a single wall drop has to host a transmitter, a controller, audio and pass-through plates together, five gangs is the practical minimum. The EWB 105 delivers that on the wall surface: a steel enclosure 10.0 inches wide with 2.50 inches of usable depth behind the faceplate, no wall cutting required. Cable can be run in from surface raceway through the end knockouts or from the cavity through the rear. A grounding screw and PEM #6-32 insert are included.

Key Capabilities

• Five-gang aperture matched to Extron wallplates and AAP mounting frames
• Steel body at 4.50 in H x 10.0 in W x 2.50 in D (11.4 x 25.4 x 6.4 cm)
• Four raceway knockouts — two small, two large
• Six wall mounting holes rated for fasteners up to 1/4 inch
• Ships at 3 lb (2 kg); weighs 1.6 lbs (0.7 kg) installed
• White finish, current Extron part number 60-1165-03

Where It Is Used

Teaching walls, hospital and clinic rooms, hotel function spaces and light-finished boardrooms where a white enclosure blends into painted plaster. Frequently paired with white surface raceway on retrofit builds.

Specifications at a Glance

• Configuration: five-gang, wall mount
• Material: steel
• Shipping weight: 3 lb (2 kg)
• Regulatory: c-UL, UL; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB105, EWB-105, part number 60116503.
