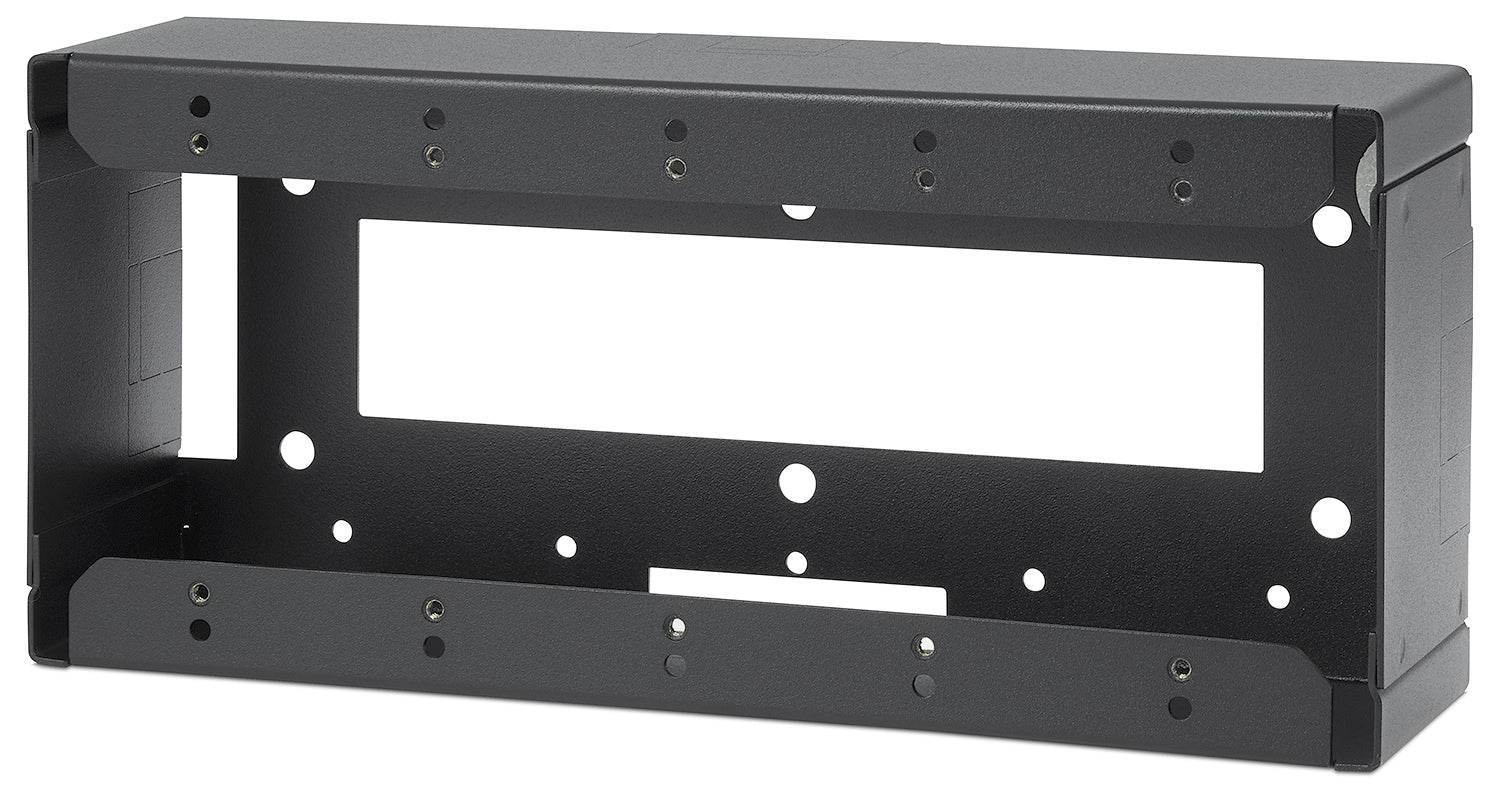

Extron EWB 105 (part number 60-1165-02) — the widest steel box in Extron's EWB Series, giving five gangs of wallplate space on a finished wall.

Some wall positions have to carry everything at once: a transmitter plate, a control panel, audio, USB and a spare gang for later. The EWB 105 provides 10.0 inches of continuous plate width and 2.50 inches of depth behind it, mounted flat to the wall rather than recessed into it. Surface raceway enters through the end knockouts, cavity cable comes in at the rear, and a PEM #6-32 insert with grounding screw is supplied.

Key Capabilities

• Five-gang opening for Extron wallplates, AAP frames and control panels
• Steel enclosure at 4.50 in H x 10.0 in W x 2.50 in D (11.4 x 25.4 x 6.4 cm)
• Two small and two large surface raceway knockouts
• Six wall mounting holes for fasteners up to 1/4 inch
• 1.6 lbs (0.7 kg) product weight, 3 lb (2 kg) packed
• Black finish, current Extron part number 60-1165-02

Where It Is Used

Divisible conference spaces, lecture theatres, simulation labs and operations centers where one wall location has to serve several systems. Also used on masonry, glass-backed and demountable walls that cannot take a recessed box.

Specifications at a Glance

• Configuration: five-gang, wall mount
• Material: steel
• Product weight: 1.6 lbs (0.7 kg)
• Regulatory: c-UL, UL; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron EWB105, EWB-105, part number 60116502.
